Livestream Studio HD1710
Rack-Mount Switcher with Bundled Control Surface

OUR PART #:  LS-HD1710

Perfect for control rooms, production trucks, venue and studios where a rack mountable form factor is a must.
Learn More

Call for price! Not available online.
List Price: $29,999.00

Similar Products

Perfect for control rooms, production trucks, venue and studios where a rack mountable form factor is a must. Studio HD1710 from Livestream combines big switcher production capability with an affordable price - and the Studio Surface is included!

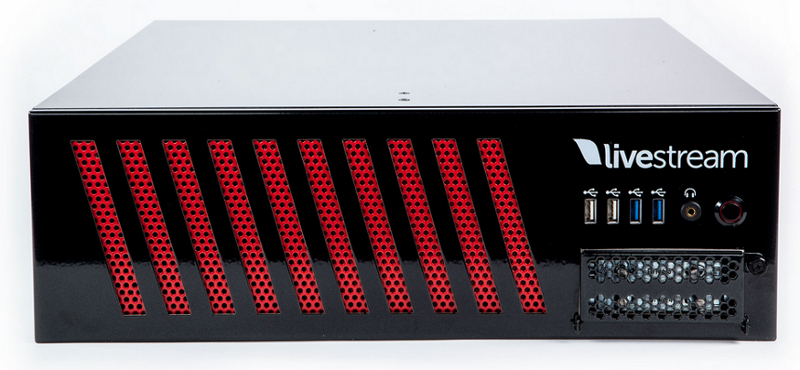

NOTE: Product shown in image is for illustrative purposes only. Monitors shown not included.

This unit also includes all the features of Livestream Studio! The HD1710 can ingest up to 17 HDMI or professional HD-SDI cameras and display on up to 4 screens for optimal viewing. Its removable 2TB hard drives can record 4 simultaneous ISO recordings, 2 remote cameras, and 60 hours of broadcast quality program output.

Studio Surface encompasses all of Studio’s broad functionality in an intuitive and familiar layout that you can take with you on the road. Tactile controls give you quick access to critical functions, including full motorized audio mixing and assignable triggers for current and future Studio features. Modular by design, Surface can be expanded as your production needs grow. Studio Surface is compatible with any hardware or software edition of Studio.

What's in the Livestream Studio HD1710 Box:

  • Power cord
  • 16 BIN female to DIN 1.0/2.3 RG-59 SDI Cable (for SDIinputs on Blackmagic Design Quad Card)
  • Livestream Studio™ Keyboard
  • Livestream Mousepad
  • Mouse
  • Rack-mount slide rail kit
  • Rubber Feet
  • Blackmagic DeckLink Studio Breakout Cable
  • Blackmagic Design cards documentation and driver CD
  • Warranty

Livestream Studio HD1710 Features:

  • 17x SDI inputs
  • 1x SDI / HDMI output
  • 2x Remote camera tracks
  • 2x Media tracks
  • 3 GFX tracks
  • Dedicated analogue audio in via Studio (total 2)
  • 60 hours of broadcast quality recording
  • Up to 4 screens
  • 2x Removable 2TB Drives
  • SSD System for Fast Boot
  • Removable Rack Mount Slide Rails
  • 64 GB DDR3 RAM
  • Front-panel USB / headphone

Livestream Studio HD1710 Specifications:

  • Video/Audio Inputs:
    • 17 simultaneous HD/SD SDI live video sources + x2 remote cameras
    • SDI (HD/SD) or HDMI Inputs: 17
    • SDI (HD/SD) or HDMI Output: 1
    • Full size connectors for SDI (BNC) and HDMI on all inputs and output
    • Embedded Audio Input: 5 Stereo or 40 Mono Inputs
    • Analog Audio Input (?"): 1
    • Audio Monitoring (?"): 1
    • Analog Audio Input (¼"): 4
    • Analog Audio Output (¼"): 2
    • AES/EBU Input: 2
    • AES/EBU Output: 2
  • Media Sources:  6 integrated digital media sourcesfor video & graphics playback. 2 DDRs (video clip playback with built-intranscoder), 2 GFX (graphics), 2 Color Bars / Background Color
  • Built-in Multiview: On-screen full field rate multiviewof all live inputs, Preview, Program Out, 2 GFX and 2 DDR, Audio PPM overlaywith peak hold feature on all inputs and outputs. Resizable layout allowinghiding of all controls to maximize multiview screens. 4 Channels ofprofessional balanced analog audio via 1/4” jack connectors.
  • Video Switcher/Mixer: 1 x Mixer & Effects Bank(M/E) with no upstream keyer. Transitions: SMPTE Wipes (feathering, symmetry& positioning), Cut & Fade (Auto transition with adjustable durationin frames, manual via on-screen T-BAR or keyboard shortcuts). 1 Stereo 1/8”for live headphone monitoring (Ability to select master output mix orindividual inputs).
  • Graphics Downstream Key: 3 x Graphics DSK (downstreamkey) channels. One channel for GFX1 and one channel for GFX2. Independent orlocked transition controls (fade/cut). Preview on multiview.
  • Graphic & Titling: Load JPG or PNG files (fulltransparency support with PNG files). Add dynamic text (setposition/font/size/color) over any loaded image file within the GFX1 or GFX2.Dynamic Countdown, clock & timer.
  • Picture in Picture: Up to 5 input sources per GFXModule with cropping & opacity.
  • Video Clip Playback (2 Media Players): Eject/Load clip.Play/Pause/Stop. Audio/Video Scrubber. Timecode indicator. Seek to timecode.Mark In/Mark Out. Loop. Auto-play on transition.
  • Recording: 4 x simultaneous recordings. Choose fromCamera sources, Clean Program & Dirty Program. AVI MJPEG with uncompressedaudio. Interlacing and Time of Day timecode support. Full compatibility withBlackmagic Design Media Express and Adobe Premiere.
  • Recording Capacity: ~60 hours at 1080i (Using 3 1TBbuilt-in Hard Drive with recorder set to record at 100Mbps MJPEG AVI).
  • Live Streaming: HD live streaming via Gigabit/100/10built-in Ethernet. Presets in up to HD 720p. Multiple simultaneous bit-rates.Including mobile quality for playback over 3G on mobile devices(iPhone/Android). Integrated live streaming to Livestream or any other RTMPcompatible service including Ustream™, YouTube™ Live, Akamai, Wowza® MediaServer, Adobe® Flash® Media Server. Integrated support for ZiXi™ Internettransport protocol.
  • Audio Mixing: Integrated multi-channel audio mixer forinternal and external audio sources, outputs, stream and headphones.Incorporated video switcher follow feature with audio crossfade support whenfading two video sources.
  • Supported Formats:
    • HD: 720p50, 720p59.94, 720p60, 1080PsF23.98, 1080p23.98, 1080PsF24, 1080p24, 1080PsF25, 1080p25, 1080PsF29.97, 1080p29.97, 1080PsF30, 1080p30, 1080i50, 1080i59.94 and 1080i60
    • SD: 625/25 PAL, 525/29.97 NTSC, 525/23.98 NTSC
  • Playback Media Formats:
    • GFX: JPEG or PNG image files with transparency support
    • DDR: AVI MJPEG with uncompressed audio, DV Video, WMV (7/8/9), H.264 (.mov &.avi), MPEG4 Part 2 (.mov & .avi), MPEG4 V1/V2 (.mov & .avi), AAC, MP3.
  • Record Media Formats: AVI MJPEG with uncompressedaudio.
  • Operating System: Windows 7 Professional (64 bit)
  • Built in Display: Integrated 17" (1920x1080) HD LED LCDTouchscreen display.
  • CPU: Intel "Sandy Bridge-E" Core i7 3930K 3.2 GHzSix-Core processor, 12MB L3 cache, 130W, Socket LGA 2011.
  • Graphic Card: ATI Firepro™ 2460 Multi-view ProfessionalGraphics PCI Express 2.0 Graphics card quad output.
  • Storage: Dual quicktime front removable (2) x WD REd1TB/7200 RM ISO recording drives, midplane, access door, receiver mountingkits. Comes with Infozone USB 3.0 to SATA 6G cable for data transfer. 1Internal fix mounted WD Red 1TB/7200 RM ISO hard drive & 1 internal fixmounted 120GB SSD OS/application drive.
  • RAM: 64GB 8 total DDR3 1600 MHz RAM (non-ECC) (2GB x 4DIMM configuration).
  • Processing: Video: 4:2:2, 10 bit Color (REC 601, REC709) Audio: 48 kHz
  • Built-in Video Input/Output Cards: 4 x BlackmagicDesign DeckLink Quad (PCI), 1 x Blackmagic Design DeckLink Studio (PCI).
  • Dimensions/Weight: 20.83" (D) x 5.25" (H) x 16.50" (W) ~20.4 lbs
