The Light Source MTDGLOBAL11.4375/2 Mega-Truss Dolly for Two 11-7/16" Global Truss

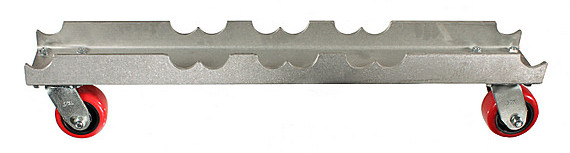

The Light Source's MTDGLOBAL11.4375/2 Mega-Truss Dolly is designed to easily "cradle" (2) 11.4375" Global Truss segments, providing transport or storage. Its 5" aluminum C channel has CNC milled cutouts made for truss to ride in. Important note: be sure to secure the trusses tightly to the Mega-Truss Dolly with an E-Clip ratchet strap before attempting to move. The (2) 4" × 2" heavy-duty casters are rated for 480 pounds each. One pair of Mega-Truss Dollies will hold and transport up to 1900 total pounds of truss. Mega-Truss Dollies are available in a range of sizes, with additional sizes available upon request (contact your Sales Pro for more information), and are sold in pairs).

The Light Source MTDGLOBAL11.4375/2 Specifications:

• Safe Vertical Working Load: 960 Pounds per dolly
• Hardware: Encore 4" × 2" 480# rated casters each secured with (4)each 3/8" × 3/4" grade 5 Hex head cap screws and serrated hex flange nuts.
• Dimensions: U Channel is 5" W x 2.5" T x 1/2" Wall
• Weight: Avg. 26 lbs each pair
• Case Quantities: Per pair
• Finish: Silver

Note

NOTE: All truss shown is sold separately.
