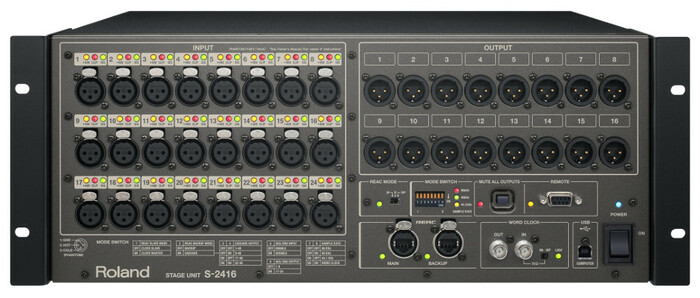

Roland System Group S-2416
24 x 16 Digital Snake Stage Unit

OUR PART #:  S2416

The Roland S-2416 digital snake stage unit expands the line-up by offering a 24 input x 16 output analog and 8 input x 8 output digital...
Learn More
Our Price: $2,995.00
Write the first review.
Roland System Group S-2416
Usually ships in 7-14 business days.
Need it sooner? Call us!

Related Products

The Roland S-2416 digital snake stage unit expands the line-up by offering a 24 input x 16 output analog and 8 input x 8 output digital, for a total of 32 input and 24 output channels. In addition to the analog and digital I/O the S-2416 has two REAC ports enabling the ability to cascade an additional snake for expanded I/O or for a fully redundant, zero-loss audio back-up solution. In addition, the discrete mic preamps are newly developed high-grade ensuring highest-quality uncolored sound.

The rear panel provides AES/EBU connectivity (25-pin D-sub type) for 8 channels of input and output, enabling connection to speaker processors, amps, and other devices capable of AES/EBU input and/or output. Input via AES is assigned to channels 25 through 32 and output is selectable by a mode switch. When combined with analog input and output, the S-2416 can achieve up to 32 inputs and 24 outputs.

With two REAC connectors – a main and a backup – a redundant REAC network is possible. If a problem occurs with the main line, operation instantly switches to the backup with no break up or click/pop in sound. What's more, use of Neutrik Ethercon connectors assures both a reliability and ruggedness for any type of environment.

The S-2416 is the first Digital Snake capable of a cascade connection. Switching the device to Cascade mode and connecting another Digital Snake makes it possible to expand inputs and outputs up to 40x40 channels. Any of four patterns can be selected for the number of channels output to the additional Digital Snake with a cascade connection: 40 (1 - 40 ch), 32 (9 - 40 ch), 24 (17 - 40 ch), and 16 (25 - 40 ch).

The S-2416 supports a high bit rate of 24 bits and a high sampling rate of 96 kHz. A mode switch enables selection of 96 kHz, 48 kHz, or 44.1 kHz, when the S-2416 is switched to Clock master mode. The unit is also equipped with word-clock input and output connectors (BNC) for supplying a master clock signal when using the AES/EBU connection.

The S-2416 is equipped with a MUTE ALL OUTPUTS button to temporarily silence all outputs - a handy feature when changing cable connections.

Mic preamps can be controlled using any V-Mixer, R-1000, an S-4000R unit connected by RS-232C, or by using the S-4000 RCS remote-control software on a computer (Mac or Windows) connected via USB. Rack-mount angle brackets can be attached not only at the front panel, but also at the rear. This makes it possible to mount the S-2416 with either front or rear orientation as needed.

Roland S-2416 Includes:

  • Power cord
  • Owner's manual
  • Rubberfoot x 4

Roland S-2416 Features:

  • 24 input x 16 output analog + 8 input x 8 output digital (AES/EBU) = 32 input x 24 output
  • 2 REAC ports to either cascade additional snake or for redundant connection
  • Newly developed high-grade mic preamps
  • 4U adjustable front or rear rack-mount design
  • Supports 24-bit 96kHz, 48kHz, or 44.1 kHz sample rates
  • Word clock in & out
  • Remote control via any V-Mixer console, R-1000, S-4000R dedicated remote unit, and S-4000 RCS via USB (Windows/Mac)

Roland S-2416 Specifications:

  • Number of Channels: 32 in 24 out
  • AD Conversion:
    • Sample Rate: 96.0 kHz, 48 kHz, 44.1 kHz
    • Signal Processing: 24 bits
  • DA Conversion:
    • Sample Rate: 96.0 kHz, 48 kHz, 44.1 kHz
    • Signal Processing: 24 bits
  • Frequency Response: -2 dB / +0 dB (@ +4 dBu, 10Hz to 40 kHz, Sample Rate : 96 kHz, typ.)
  • Total Harmonic Distortion + Noise: 0.007 % (Pad:Off, Input Gain: -10 dBu, 20 Hz to 20 kHz, typ.)
  • Dynamic Range: INPUT jacks (1 to 24): 110 dB(typ.)
  • Channel Separation @ 1kHz:
    • INPUT jacks (1 to 24): 103 dB (Input Gain: +4 dBu, IHF-A, typ.)
    • OUTPUT jacks (1 to 16): 110dB (typ.)
  • Nominal Input Level (Variable):
    • -65 to -10 dBu (PAD: Off)
    • -45 to +10 dBu (PAD: On)
  • Non Clip Maximum Input level: INPUT jacks (1 to24): +28dBu (1 kHz, 10 k ohms load, typ.)
  • Input Impedance: INPUT jacks (1 to 24): 7 k ohms
  • Nominal Output Level: OUTPUT jacks (1 to 16): +4dBu (Load impedance: 10 k ohms, typ.)
  • Maximum Output Level: OUTPUT jacks (1 to 16): +22 dBu (Load impedance: 10 k ohms, typ.)
  • Output Impedance: OUTPUT jacks (1 to 16): 600ohms (typ.)
  • Recommended Load Impedance: OUTPUT jacks (1 to16): 10 k ohms or greater
  • Residual Noise Level (IHF-A, typ.): OUTPUT jacks(1 to 16): -84 dBu
  • Equivalent Input Noise Level (E.I.N.): INPUTjacks (1 to 24): -128 dB (Input Gain: -65 dBu, IHF-A, typ.)
  • Network Latency: 375 microseconds when using REAC cable only (AD to REAC to DA Latency: about 1.2 ms)
  • Connectors:
    • INPUT jacks (1 to 24): XLR type, balanced, phantom power
    • OUTPUT jacks (1 to 16): XLR type, balanced
    • AES/EBU connector: DB-25 type
    • REAC port: RJ-45 EtherCon type
    • WORD CLOCK connector: BNC type
    • REMOTE connector: DB-9 type
    • COMPUTER port: USB type B
      * XLR type: 1 GND, 2 HOT, 3: COLD
      * phantom power: DC+ 48V (unloaded maximum), 14mA (maximum load) (All XLR type inputs)
  • Power Consumption: 62 W
  • Operation Temperature: +32° to +104°F (+0° to +40°C)
  • Dimensions (WxDxH): 19" x 13.75" x 7" (482 x 348 x 177 mm)
  • Weight: 21 lbs. 7 oz. (9.7 kgs)
