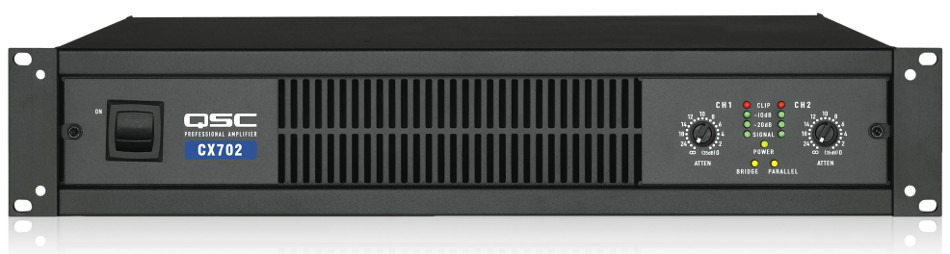

QSC CX702-220
2-Channel Power Amplifier, 425 Watts @ 8 ohms, 220 Volt

OUR PART #  CX702-220

Our Price: $1,770.00
(Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

The QSC CX Series of amplifiers are designed to meet the specialized needs of sound contractors. Five low impedance models and three 70-volt direct models have been designed from the ground up, combining QSC's exclusive PowerWave technology with specific features to meet the requirements of fixed installations. With high output power, versatile loading options, high thermal capacity and reliability, the CX Series is the ideal solution ot any permanently installed sound system.

NOTE:  This product requires a 220 Volt connection made for use in European countries. For more information on this and other products, contact your Sales Representative.

The CX amplifiers are equipped with many contractor-specific features including 1dB detented gain controls for easily repeatable settings and a custom security cover for tamper-proof installations. Active Inrush Limiting eliminates AC inrush current, cutting the need for power sequencers.

The CX amplifiers also include an HD-15 Data Port connector to interface with QSControl, QSC's computer-controlled audio system, that allows remote amplifier monitoring and control via a standard Ethernet network.

QSC CX702 Specifications:

  • Power Ratings:
    • 8 ohms, Stereo Mode, Both Channels Driven: 425W
    • 4 ohms, Stereo Mode, Both Channels Driven: 700W
    • 2 ohms, Stereo Mode, Both Channels Driven: 1200W
    • 16 ohms, Bridged Mono Mode: 850W
    • 8 ohms, Bridged Mono Mode: 1500W
    • 4 ohms, Bridged Mono Mode: 2400W
  • Input Impedance: 6k ohms unbalanced, 12 kOhms balanced
  • Input Connectors, each channel: 3-pin XLR & 3-pin detachable terminal blocks (1 each per channel)
  • Output Connectors, each channel: Safety-shrouded barrier strip
  • Amplifier Protection: Full short circuit, open circuit, thermal, ultrasonic, and RF protection. Stable into reactive or mismatched loads
  • Load Protection: On/Off muting, DC-fault power supply shut down
  • Dimensions (W x H x D): 19" x 3.5" x 14" (2 RU)
  • Weight: 21 lbs net

QSC CX702-220
2-Channel Power Amplifier, 425 Watts @ 8 ohms, 220 Volt

OUR PART #  CX702-220

Product Information:

The QSC CX Series of amplifiers are designed to meet the specialized needs of sound contractors. Five low impedance models and three 70-volt direct models have been designed from the ground up, combining QSC's exclusive PowerWave technology with specific features to meet the requirements of fixed installations. With high output power, versatile loading options, high thermal capacity and reliability, the CX Series is the ideal solution ot any permanently installed sound system.

NOTE:  This product requires a 220 Volt connection made for use in European countries. For more information on this and other products, contact your Sales Representative.

The CX amplifiers are equipped with many contractor-specific features including 1dB detented gain controls for easily repeatable settings and a custom security cover for tamper-proof installations. Active Inrush Limiting eliminates AC inrush current, cutting the need for power sequencers.

The CX amplifiers also include an HD-15 Data Port connector to interface with QSControl, QSC's computer-controlled audio system, that allows remote amplifier monitoring and control via a standard Ethernet network.

QSC CX702 Specifications:

  • Power Ratings:
    • 8 ohms, Stereo Mode, Both Channels Driven: 425W
    • 4 ohms, Stereo Mode, Both Channels Driven: 700W
    • 2 ohms, Stereo Mode, Both Channels Driven: 1200W
    • 16 ohms, Bridged Mono Mode: 850W
    • 8 ohms, Bridged Mono Mode: 1500W
    • 4 ohms, Bridged Mono Mode: 2400W
  • Input Impedance: 6k ohms unbalanced, 12 kOhms balanced
  • Input Connectors, each channel: 3-pin XLR & 3-pin detachable terminal blocks (1 each per channel)
  • Output Connectors, each channel: Safety-shrouded barrier strip
  • Amplifier Protection: Full short circuit, open circuit, thermal, ultrasonic, and RF protection. Stable into reactive or mismatched loads
  • Load Protection: On/Off muting, DC-fault power supply shut down
  • Dimensions (W x H x D): 19" x 3.5" x 14" (2 RU)
  • Weight: 21 lbs net
