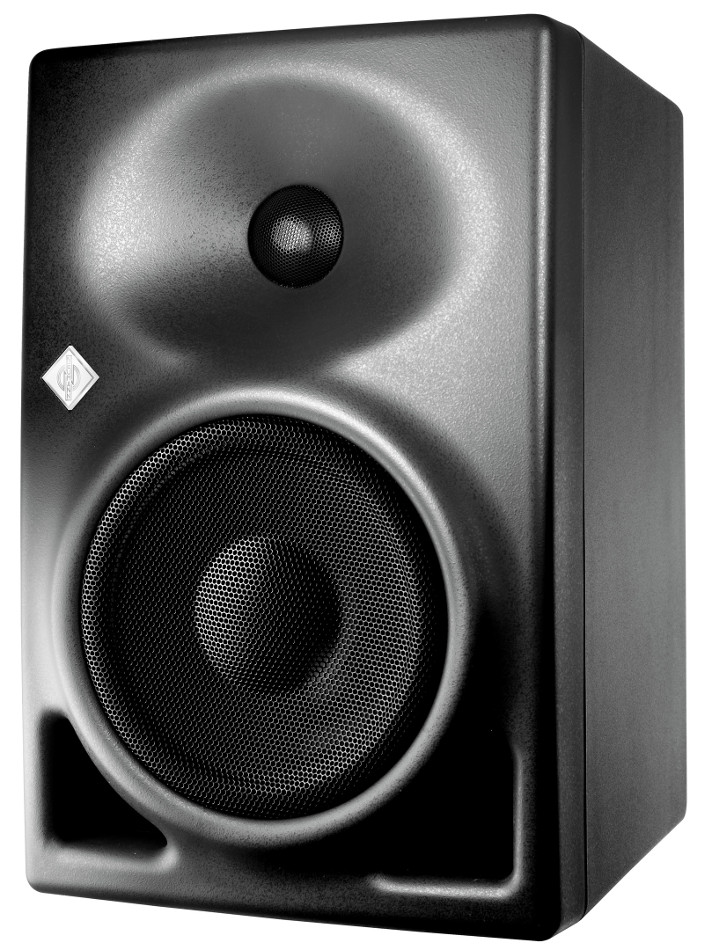

Neumann KH 120 D
5.25" Active Studio Monitor with Digital Input and Delay

OUR PART #:  KH120D

The Neumann KH 120 D studio monitor is designed for use as a near-field loudspeaker or as a rear loudspeaker in larger multi-channel systems.
Learn More
Our Price: $1,249.95
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Neumann KH 120 D
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The Neumann KH 120 D studio monitor is designed for use as a near-field loudspeaker or as a rear loudspeaker in larger multi-channel systems. The KH 120 D represents the latest in acoustic and electronic simulation and measurement technologies to ensure the most accurate sound reproduction possible. It has a Mathematically Modeled Dispersion waveguide (MMD ), flexible acoustical controls, analog class-AB amplifiers, various input formats (analog and digital) and an extensive mounting hardware range. All of this provides the user with the maximum versatility over a wide variety of acoustic conditions, source equipment, and physical locations.

The Neumann KH 120 D is perfect for tracking, mixing and mastering in music, broadcast, project and post-production studios.

Neumann KH 120 D Features:

  • Powerful Titanium Fabric Dome:  Low-distortion high-frequency reproduction
  • Elliptical Mathematically Modelled Dispersion™ (MMD™) Waveguide:  Smoother off-axis response; more forgiving of diverse acoustical environments
  • Composite Sandwich Cone:  Damping of break-up modes
  • Long Throw Bass Driver:  Low distortions at high sound levels
  • Two-color + Dimmable Neumann Logo:  Displays operation status  and activation of the extensive protection system
  • Robust Metal Grille:  Protects against mechanical damage
  • Large Front Panel Ports:  Reduced bass compression and easier to mount in tight spaces such as OB vans
  • Compact Aluminum Cabinet (magnetically shielded):  Minimizes resonances, better heat dissipation, long life
  • Wide Horizontal Dispersion:  Freedom of movement across the mixing console
  • Narrow Vertical Dispersion:  Reduces reflections off the mixing console
  • One-piece Front Panel with No Discontinuities: Reduced diffraction and smoother frequency response
  • Powerful Analog Amplifiers with Large Headroom: Improved transient response
  • Production Consistency:  Any KH 120 is “pair-matched” to any other KH 120
  • 4-position Bass, Low-Mid and Treble Acoustical Controls:  More control in diverse acoustical environments
  • Wide Range Input Gain and Output Level Controls: Easier interfacing with signal sources
  • New Mounting Hardware Options:  More flexibility in mounting cabinets in more diverse locations
  • Display Dimmer:  For low lighting level conditions or behind the screen applications
  • Ground Lift:  Reduced noise in electrically noisy environments and over-comes ground loops
  • Universal Switched-Mode Power Supply (100 - 240V):  One version works in any country and robust to poor quality mains supply
  • Separate Woofer and Tweeter Electronic Peak Limiters and Thermal-Protection Circuitry:  High reliability
  • Analog XLR Input:  Compatible with any analog line signal
  • Digital BNC Input and Buffered BNC Output:  For flexible and trouble-free digital interconnectivity (24 bit, 192 kHz, AES3 andS/P-DIF)
  • Lipsync Delay (0 - 10/12 frames):  To align audio and video signals
  • Time-of-Flight Delay (0 - 400 ms):  To compensate for listening distance differences

Neumann KH 120 D Specifications:

  • Free Field Frequency Response:  52 Hz - 21 kHz, ±3 dB
  • Pass Band Free Field Frequency Response:  54 Hz -20 kHz, ± 2 dB
  • Self-Generated Noise (input gain set to 100 dB for 0dBu):  < 20 dB(A) at 10 cm
  • THD < 0.5 % at 95 dB SPL at 1 m:  > 100 Hz
  • Max. SPL in Full Space / calc. in Half Space at 3% THD at 1m:  105.1 / 111.1 dB SPL (averaged between 100 Hz and 6 kHz)
  • Bass capability: Max. SPL in Half Space at 3% THD at 1m:  104.8 dB SPL (averaged between 50 Hz and 100 Hz)
  • Max. Short Term SPL with IEC-Weighted Noise (IEC60268-5) at 1 m, in Typical Listening Conditions:  107 dB(C) SPL
  • Max. Short Term SPL with Music Material at 2.3 m, in Typical Listening Conditions (pair):  97 dB(C) SPL (full range); 104dB(C) SPL (with subwoofer)
  • Max. Long Term SPL with Pink Noise at 2.3 m, in Typical Listening Conditions (single/pair):  88 / 93 dB(C) SPL (full range); 89 / 94 dB(C) SPL (with subwoofer)
  • Woofer Amplifier, Cont.(Peak) Output Power:  50 W(80 W)
  • Tweeter Amplifier, Cont.(Peak) Output Power:  50W (80 W)
  • Controller Design:  Analog, active
  • Crossover Frequency:  2.0 kHz
  • Crossover Slope (dB/oct.):  24, 4th order
  • Equalization - Bass:  0, -2.5, -5, -7.5 dB
  • Equalization - Mid:  0, -1.5, -3, -4.5 dB
  • Equalization - High:  +1, 0, -1, -2 dB
  • Protection Circuitry:  Limiter - Low, High
  • Infrasonic Filter Frequency; Slope:  30 Hz; 6dB/oct.
  • Impedance, Electrically Balanced:
    • 10 kOhms in position 94/108 dB SPL at 1 m
    • 20 kOhms in position 100/114 dB SPL at 1 m
  • Input Gain Control (Sensitivity):  0 dBu to -15dBu
  • Output Level Control:  94, 100, 108, 114 dB SPL
  • CMRR:  >56 dB @ 15 kHz
  • Maximum Input Level:  24 dBu (18 dBu for analog delayed)
  • Format BNC:  AES3, S/P-DIF
  • Impedance BNC, Unbalanced:  75 ohms(input/output)
  • Input Switching:  Analog, Digital A, Digital B,Digital A+B (all available with and without delay)
  • Digital Converter - Resolution, Design:  16 -24-bit DAC
  • Digital Converter - Sampling Rate:  32 - 192 kHz
  • Digital Sensitivity:  -18 dBFS
  • D-A Dynamic Range:  120 dB
  • Audio-Video/Lip Sync and Time-of-Flight DelayRange:  0 - 409.5 ms
  • Audio-Video/Lip Sync Max. Frames:  0 - 10.2 (40ms) frames, 0 - 12.3 (33 ms) frames
  • Resolution - Time/Distance:  0.1 ms / 3.4 cm (13/8”)
  • Latency D-A (A-D-A):  0.22 -  1.85 ms (0.54ms)
  • Displays and Indicators:
    • Power On:  Neumann logo “White”
    • Limit/Clip:  Neumann logo “Red”
    • Digital Error:  Neumann logo “Red” flash
  • Mains Power Supply, Voltage; Frequency:  100-240V~; 50/60 Hz
  • Power consumption
    • Idle:  40 W
    • Full Output AC:  200 W
  • Cabinet Surface Finish, color:  Custom Painted aluminium, Anthracite (RAL 7021)
  • Operating Conditions:  +10° C to +40° C (+50° Fto +104° F), <90% RH, non-condensing
  • Transport/Storage Conditions:  -25° C to +70° C(-13° F to 158° F), <90% RH, non-condensing
  • Drivers:  Magnetically shielded
  • Woofer:  5.25” (130 mm)
  • Tweeter:  1” (25 mm)
  • Mounting Points:  2 x M8 on rear panel
  • Dimensions (HxWxD):  10 7/8” x 7 1/8” x 8 5/8”(277 x 182 x 220 mm)
  • Internal Net Volume / External Volume:  6.5liters / 9.7 liters
  • Weight  14.3 lbs (6.5 kg)
