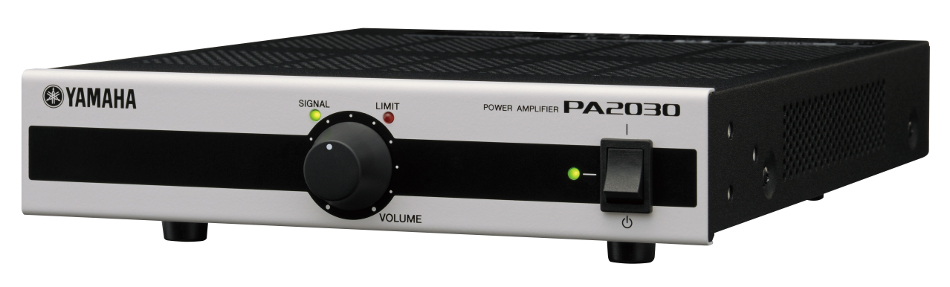

Yamaha PA2030
Low Impedance & 70V/100V 2-Channel Power Amplifier

OUR PART #  PA2030

Call for price! Not available online.

Recommended Accessories

With a quick, easy setup and simple intuitive operation, it's never been easier to bring your commercial space to life than with the Yamaha Commercial Installation Solutions PA2030 compact power amplifier, which combines familiar, unassuming construction with efficient, flexible performance. Whether providing background music for a cafe or restaurant, or powering a conference room the PA2030 provides you with a compact, yet powerful tool to help shape your ideal commercial sound environment.

Designed for Effortless Everyday Use
The PA2030 Power Amplifier features an interface that has been specifically designed for effortless operation. A layout that gives priority to the frequently used output volume knob while other controls are visually subdued, for example, significantly enhances control efficiency in normal day-to-day operation. Plus, there’s no need for computers or complex programming procedures for installation or operation. After a quick, easy setup procedure that requires no special knowledge or skill, the system is ready to deliver outstanding sound in a wide range of applications.

Flexible EQ Functions
The PA2030 features speaker EQ that can be selected vai a rear-panel DIP switch to provide ideal equalization for Yamaha VXC or VXS series speakers.

Supports Lo-Z and Hi-Z Speaker Systems
The PA2030 directly supports low impedance and high impedance speaker systems without the need for additional transformers or other hardware that can take up valuable installation space. When used to drive a 3 Ohm or higher low-impedance speaker system (3 Ohm/4 Ohm selectable) the amplifier delivers up to 30W per channel into two channels. When using a high-impedance 70V or 100V line connection, the output is a single channel at up to 60 Watts. That’s ideal output power for a variety of small installations. And since the PA2030 can be used with all Yamaha commercial installation speakers*, you have the choice and flexibility to design a sound system that ideally meets your specific requirements.

*Includes the VXS series, VXC series, VS series, S series, NS-AW series and NS-IC series. The S series , NS-AW series and NS-IC series are not available in some regions.

Build a System that Meets Your Needs
For larger systems the PA2030 and MA2030 (sold separately) can be combined to drive more speakers, service a wider area, or set up volume zoning. An optional RKH1 rack mount can be used to mount either the half-rack size PA2030 or MA2030 alone, or both units side by side in a single 1U rack space.

Safe and Efficient in Any Environment
At the heart of the PA2030 is a high-efficiency Class D amplifier that delivers sufficient power for small scale applications while consuming minimal mains power during operation. For absolutely quiet operation as well as superior reliability, both models feature thermal designs that achieve efficient cooling without the need for cooling fans. Intelligent protection functions inherited from our flagship models are included in the power supply and amplifier sections to prevent damage to the amplifier as well as the connected speaker system in the case of overload.

Yamaha PA2030 Specifications:

  • Output Power:
    • 1 kHz, THD+N = 1%:  3 Ohms, 30 Watts x 2
    • High Impedance, 100V Line:  60 Watts x 1
    • High Impedance, 70V Line:  60 Watts x 1
  • Total Harmonic Distortion:  </= 0.1% (Stereoin to Speaker out, 1 kHz, 15W, 3 Ohms/4 Ohms), </= 0.2% (Stereo in tospeaker out 1 kHz, 30W, 70V/100V)
  • Frequency Response:  0dB, -3.0dB, +1.0dB (Linein to Speaker out, 50 Hz - 20 kHz, 1W, 3 Ohms/4 Ohms), 0dB, -3.0dB, +1.0dB(Line in to Speaker out, 90 Hz - 20 kHz, 1W, 70V/100V)
  • I/O Connectors:
    • Stereo Input:  LINE IN: Stereo RCA pin, unbalanced, 3.5mm Euroblock 3-pin x 2, balanced
    • Speaker Output:  Barrier strip x 2 pairs
  • Input Level:  -10.0 dBV: Sensitivity / Nominal,+10.0 dBV: Max before clip (Unbalanced / Stereo Input), +4.0 dBu: Sensitivity/ Nominal, +24.0 dBu: Max before clip (Balanced / Stereo Input)
  • Protection Circuit:
    • Load Protection:
      • Power Switch On/Off:  Mute the output
      • Output Voltage Protection:  Compress the output
      • DC-Fault:  Power supply shutdown
    • Amplifier Protection:
      • Thermal:  Limit the output -> Mute -> Shutdown (*Restored automatically)
      • Over Current:  Mute the output (*Restored automatically)
      • Integrated Power Limit:  Compress the output
    • Power Supply Protection:
      • Thermal:  Power supply shutdown
      • Over Voltage:  Power supply shutdown
      • Over Current:  Power supply shutdown (*Restored automatically)
  • Amplifier Class:  Class D
  • Cooling:  Conventional cooling, bottom to upairflow
  • Power Requirements:  100V, 120V, 230V-240V;50Hz/60Hz
  • Power Consumption, Music source equivalent:  30W(1/8 max. power, 3 Ohms, AC 100V, pink noise at all channels)
  • Dimensions: 8.5" W x 2.1" H x 11.4" D (215x 54 x 288 mm)
  • Net Weight: 4 lbs (1.8 kg)
  • Included Accessories: AC power cable, 3.5mmEuroblock plug (3-pin) x1, Owner's manual, Specification sheet
  • Optional Accessories: RKH1 (Rack-mountAccessory)
  • Others: Operating Temperature: 0°C to + 40°C, Storage Temperature:-20°C to + 60°C, Rack-mountable when ensuring sufficient ventilation above andbelow the unit
Rackmount Kit for MA2030 and PA2030 AmplifiersYamaha RKH1 Rackmount Kit for MA2030 and PA2030 Amplifiers

The Yamaha RKH1 is a dedicated rackmount kit for the MA2030 and PA2030 compact commercial amplifiers. This kit is able to rackmount a single amplifier or two side-by-side.
