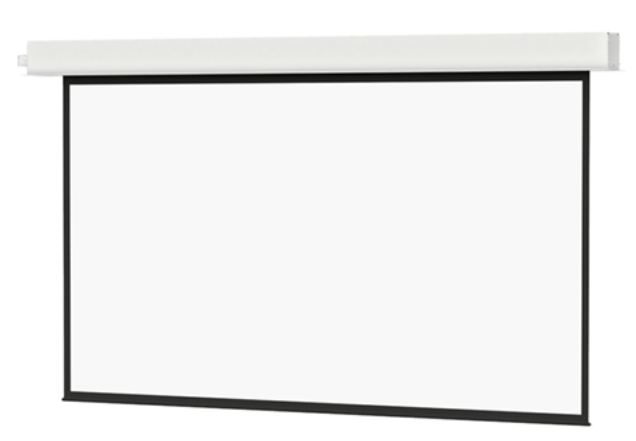

Da-Lite 70136LS
72 1/2" x 116" 16:10 Wide Format Advantage Electrol Ceiling Recessed Electric Screen with Matte White Surface

OUR PART #:  70136LS

The 70136LS from Da-Lite is constructed to eliminate the extra step of finishing the screen with trim.
Learn More
Our Price: $2,044.00
List Price: $2,555.00
You save 20%!
Da-Lite 70136LS
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The 70136LS from Da-Lite is constructed to eliminate the extra step of finishing the screen with trim. The Advantage line of projection screens is designed with ceiling trim already in place. Once the screen is installed, the screen’s trim conceals the rough opening eliminating the need to complete additional trim work. Sliding installation brackets make it easy to attach the screen housing to the structure above the drop ceiling.

The Advantage® Electrol® screen features simple in ceiling installation that can be done in two stages. The screen case can be installed during the rough-in construction stage and the fabric assembly can be completed during the finishing stage. The Advantage Electrol does not include the automatic closure door or the Tensioning Cable System.

Da-Lite 70136LS Features:

  • Standard Silent Drive System to keep your screen whisper quiet (sizes up to 10’x10’)
  • Standard Low Voltage Control (LVC) to keep your screen operation flexible
  • Simple Installation with a new installation kit and user-friendly packaging to keep you on schedule
  • Support includes a comprehensive five-year warranty to keep you confident in your purchase
  • UL Plenum rated case
  • White powder-coated case for a clean aesthetic
  • Available with SCB-100 and SCB-200 (RS-232 serial control board) or Video Projector Interface (screen trigger) built into the case
  • Decora-style, three-button wall switch
  • Standard black backing retains projected brightness
  • Seamless surfaces in all models

Da-Lite 70136LS Specifications:

  • Viewing Area (H x W): 72 1/2" x 116" 184 x 295 cm
  • Nominal Diagonal: 137" / 348 cm
  • Overall Length of Case*: 125 1/2" / 319 cm
  • Surface: Matte White (Half Angle: 60°, Gain: 1.0)
  • Approximate Ship Weight: 100 lbs / 45 Kg

NOTE: *Case length doesn not include flange.
