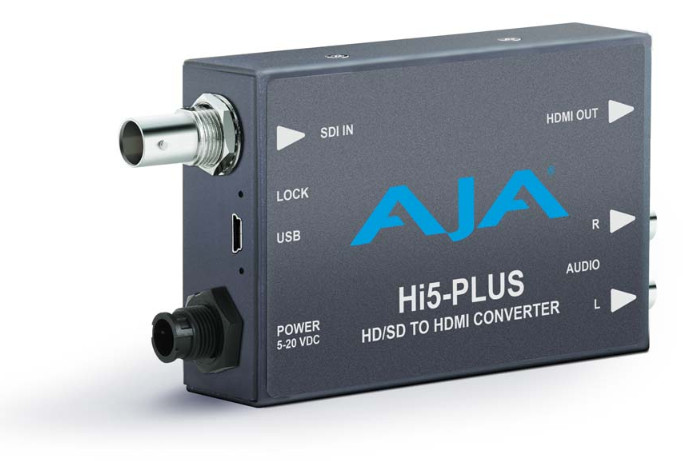

AJA Video Systems Inc Hi5-Plus
3G-SDI to HDMI Mini Converter with Power Supply

OUR PART #:  HI5-PLUS

The AJA Hi5-Plus 3G-SDI to HDMI Mini Converter lets you bring HDMI and 3G-SDI devices together for a full range of monitoring and recording solutions in the edit suite, on set...
Learn More
Our Price: $395.00
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

AJA Video Systems Inc Hi5-Plus
Qty:
In Stock

Similar Products

The AJA Hi5-Plus 3G-SDI to HDMI Mini Converter lets you bring HDMI and 3G-SDI devices together for a full range of monitoring and recording solutions in the edit suite, on set, or at live events. You'll also find convenient USB setup using AJA MiniConfig on Mac or PC for easy remote configuration.

AJA Hi5-Plus Features:

  • Deep Color HDMI -When used with a compatible HDMI monitor, Hi5-Plus outputs a 30-bit Deep Color RGB signal.
  • 3G-SDI Support -The 3G-SDI input on Hi5-Plus allows extremely high-quality signal representation through to the HDMI output for use with RGB workflows.
  • Audio Integration -Up to 16-channels of embedded SDI audio are supported on input and can be passed to 8-channel of embedded HDMI audio on the output with the ability to delay the audio from 0 to 7 frames for proper synchronization with the output video. Two channels of analog audio output allow direct external monitoring without the need to disembed the audio separately.
  • PsF to Progressive conversion -HDMI monitors do not natively support PsF signals. However, many professional productions still work with PsF formats. Hi5-Plus converts incoming 1080PsF signals to 1080p. This progressive signal is compatible with HDMI monitors.
  • USB and MiniConfig Support - AJA's free MiniConfig software can be used with any USB-enabled AJA Mini-Converter and provides an easy-to-use graphical interface with detailed information about the current input and output formats. Control all the parameters of any supported AJA Mini-Converter as well as loading firmware updates from AJA that add new features and functionality.
  • All AJA Mini-Converters ship with a Universal Power Supply that includes international plug connections for use around the world.
  • Compact and Portable -AJA Mini-Converters are small enough to fit behind a monitor, in the back of a rack or directly on a camera rig. A locking power connector can't accidentally pull loose and an optional P-TAP power cable allows for battery power in remote locations.
  • All AJA Mini-Converters are covered by a 5-year warranty and AJA's advanced replacement policy. If a replacement is necessary, AJA will ship a new unit immediately without the need to send the original unit back first, ensuring you are up and running again as quickly as possible.
  • AJA Mini-Matrix -Information on the complete line of AJA Mini-Converters is now available as a mobile app on iOS. The Mini-Converter product line is extensive and this app helps you find the right converter for any situation, wherever you are.
    Individual products have links back to the main AJA website for more details and you can email product information directly from the app. The free AJA Mini Matrix app for iPad and iPhone is available now in the Apple iTunes Store.

AJA Hi5-Plus Specifications:

  • Video Input: 3G-SDI with embedded audio
  • Input Formats:
    • 525i, 625i
    • 720p 50, 59.94, 60
    • 1080i 50, 59.94, 60
    • 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
    • 1080PsF 23.98, 24, 25, 29.97, 30  (converts to progressive)
    • 2K x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
    • 2K x 1080PsF 23.98, 24, 25, 29.97, 30  (converts to progressive)
  • Video Outputs:
    • HDMI with embedded audio up to 8 channels  (selectable by MiniConfig)
      • 8-bit RGB 4:4:4
      • 10-bit YCbCr 4:2:2
      • 12-bit
  • Audio Input:  DI embedded audio, select from 16 channels
  • Audio Output:  2-channel RCA-style (-10dBV nominal)
  • Power:
    • Uses AJA Power Supply model DWP-U-R1 (included with purchase)
      • 100-240V, 50/60Hz Universal Input
      • +5V DC regulated, 7.5 watt capacity
  • Dimensions: 4.6" x 2.4" x 1" (117x 61 x 25 mm)
