ikan Corporation IKW1 [RESTOCK ITEM]
Wireless HD Transmitter & Receiver System for V Mount

OUR PART #:  IKW1-RST-01

The ikan IKW1 is a wireless HD Video and Audio system that can be used in a variety of situations, such as live broadcast events, on a crane...
Learn More
ikan IKW1 Connectors Close Up View
ikan IKW1 Unit Profile View

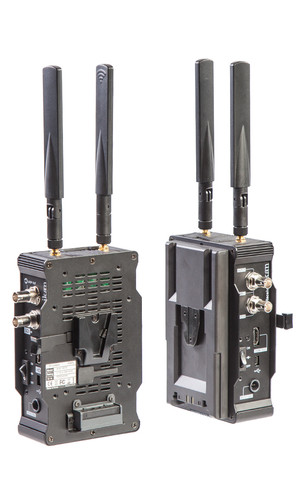

ikan IKW1 Profile View-2 Units

Click a thumbnail to see more images. (5 total)

Sale Price: $1,976.40
List Price: $4,699.00
You save 58%!
Be the first to review.
ikan Corporation IKW1 [RESTOCK ITEM]
Qty:
In Stock
Similar Products

The ikan IKW1 is a wireless HD Video and Audio system that can be used in a variety of situations, such as live broadcast events, on a crane, steadicam or in conjunction with a courtesy monitor for the director. This rugged system can transmit full HD video and audio (in a variety of frame rates and resolutions)  up to 500 feet and over 100 feet through most obstacles. Battery plate mounts are designed to work with Sony V-mount style batteries  and it can also attach to any camera’s battery mount that have the Sony V-mount, like RED or the Sony F5 or F55.

NOTE: This is a RESTOCK item that has had its box opened or has been repackaged.  It may have minor cosmetic flaws and may have been sold to a customer and returned. Please contact your sales representative for more information on this and other products.

The IKW1 has the ability to wirelessly transmit video and audio though brick walls. View full HD video up to 500 feet in best conditions depending on the weather and obstacles you are transmitting though.

The IKW1 Transmitter and receiver use both 3G HD-SDI and HDMI making it a versatile tool for most cameras to use for all types of production. The receiver can output SDI or HDMI regardless if the input signal is from the same connection. Multiple receivers can be used with one transmitter (this may decrease operating range).

ikan IKW1 Includes:

  • 2 AC Adapters
  • 2 Pairs Of Antennas
  • Receiver
  • Remote
  • Transmitter
  • User Manual

ikan IKW1 Features:

  • Transmits Multi Format Video Signals:
    • 1920 x 1080 (60p,59.94p,50p)
    • 1920 x 1080 (60i, 59.94i, 50i, 30p, 29.97p, 25p, 24p, 23.98p)
    • 1920 x 1080 (30psf, 29.97psf, 25psf)
    • 1280 x 720 (60p, 59.94p, 50p)
  • Max 50Mbps Encoding Bit rate
  • Supports 3G HD-SDI
  • Transmits Audio Input (Line Level Stereo Mic In)
  • Real Time Transmitter Selection
  • Bi-Directional Data Link at 11Kbps
  • Supports Time Code
  • Tally Control (Tally LED, Return Tally) via GPIO Port
  • Low Power Consumption (10W)
  • Automatic Encoding Rate Adjustment for RF Condition
  • Signal Protection with 802.11i
  • No Special FCC License (U-NII-1 and U-NII-3) Required
  • The Adoption of MIMO
  • Both Transmitter and Receiver have SDI Loop Out
  • 1/4-20 Socket on the bottom for mounting

ikan IKW1 Specifications:

  • Input:
    • 1 x BNC:  HD/SD-SDI, 3G/1.485G/270M
    • 1 x HDMI:  HDMI, (with HDCP v.1.1), 19 pin Female
  • Audio Input: 1 x Phone Jack In:  3.5mm TRS, LineLevel Input
  • Video Formats
    • HD:
      • 1920 x 1080 (60p, 59.94p, 50p)
      • 1920 x 1080 (60i, 59.94i, 50i, 30p, 29.97p, 25p, 24p, 23.98p)
      • 1920 x 1080 (30psf, 29.97psf, 25psf)
      • 1280 x 720 (60p, 59.94p, 50p)
      • SD:  NTSC, PA
  • Output: 1 x BNC:  SDI Active Loop Output
  • Radio:
    • Frequency:  U-NII-1 (5.15~5.25 GHz), U-NII-3 (5.725~5.85GHz)
    • Transmission Power:  20mW (13.5dBm)
    • Transmission Distance:  150m (500 feet), 500m (1600 feet, with special antenna)
    • Latency:  20ms
    • Encoding/Decoding:  H.264 Base Profile @4.2
    • Antenna:  2T x 2R SMA Female
    • Security:  802.11i compatible signal protection by128bit AES encryption
    • Multiple Receivers:  Up to 4. (Maximum distance may decrease due to signal division)
  • General:
    • Inputs:  3G HD-SDI, HDMI
    • Video Outputs:  3G HD-SDI, HDMI
    • 1 x GPIO:  GPI-7 Port, RJ-45P Jack
    • 2 x mini_USB:  F/W Update (MAIN , MICOM)
    • 4 x LED:  Power, Link, Battery, Tally
    • 4 x Switch:  Reset, Pairing, Input Selection, Power
    • Battery:  V-Mount
    • Power Requirements:  DC (7V~17V) or AC Adapter (100 ~230V, 50Hz/60Hz)
    • Power Consumption:  10W
    • Operating Temperature:  32°F ~104°F (0°C ~ 40°C)
    • Size:  5.9” x 3.5” x 1.6”
    • Weight:  4 lbs.
    • Shipping Weight:  8 lbs.
