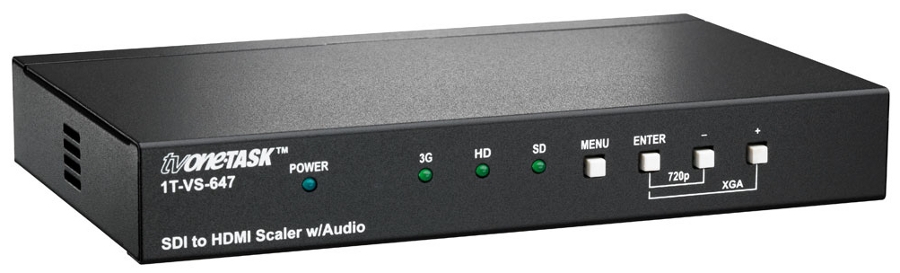

tvONE 1T-VS-647 SDI to HDMI Scaler with Audio

The 1T-VS-647 SDI to HDMI Scaler with Audio from tvOne converts a variety of SDI transmission rates and video resolutions into an HDMI signal. It also provides audio flexibility by outputting the audio embedded in the SDI signal to external connectors (both analog and digital formats) for distribution separate from the HDMI data stream. Bit rates to 2.970Gb/s allow processing of resolutions up to and including 1080p. SMPTE standards 425 A&B, 424M, 292M & 259M-C are supported and SMPTE 425M level B to level A Conversion is also standard. Automatic Input Video Format Detection and an On Screen Menu display make operation easy and intuitive. Additional capabilities include SDI loop-thru with equalization and reclocking which means the 1T-VS-647 SDI to HDMI Scaler doubles as an SDI repeater. Finally, as part of the SDI to HDMI scaling process, SDI timing is automatically converted to PC timing parameters.

tvONE 1T-VS-647 Features:

• Bitrates to 2.970Gb/s
• Resolutions up to and including 1080p
• De-embedded Audio – Analog and Digital Outputs
• SDI Equalized and Re-Clocked loop-thru
• Automatic Detection of Input Format
• SMPTE 425 A&B, 424M, 292M & 259M-C
• OSD (On Screen Display)
• Converts SDI HD Timing to PC Timing

tvONE 1T-VS-647 Specifications:

• Please see the attached specifications sheet.
