DPA Microphones FID88F34-2

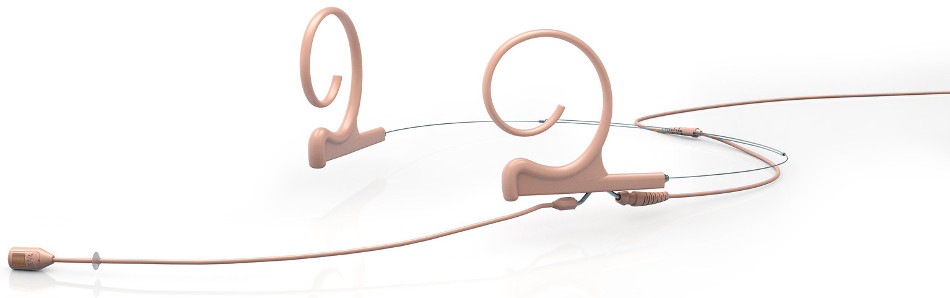

d:fine 88 Dual Ear Cardioid Headset Microphone with Hardwired 3.5mm Locking Connector and 120mm Boom Arm, Beige

OUR PART #:  FID88F34-2

The FID88F34-2 from DPA, part of their legacy d:fine™ 88 Headset Microphone series, combines the legendary 4088 directional capsule with the versatile...
Learn More
Our Price: $839.95
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

DPA Microphones FID88F34-2
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The FID88F34-2 from DPA, part of their legacy d:fine™ 88 Headset Microphone series, combines the legendary 4088 directional capsule with the versatile, lightweight d:fine Headset system. This particular model , and comes in Beige, features dual-ear mounts, enabling use in more active situations, and will be safe in even the most rigorous and energetic performance applications. The d:fine headset has been ergonomically designed to fit easily and seamlessly. It's adjustable to fit any ear size and head shape; it mounts securely and is hardly visible. It can be moved from left to right ear or into the optimum position just by rotating the boom and earhook. Faithful to the DPA legacy, d:fine delivers accurate, natural voice intelligibility and very high SPL handling capabilities – users can both speak and/or sing into the mic without a hint of distortion. It has a service connector that splits the cable from the microphone boom and provides for quick exchange of cable lengths/colors/connectors, and is invaluable for servicing broken cables.

DPA FID88F34-2 d:fine 88 Headset Mic Includes:

  • Cable clip which anchors the cable to your clothing
  • Five color-coded identification rings
  • A pre-mounted pop screen and foam windscreen
  • Three additional foam windscreens
  • Hardwired 3.5mm Locking Mini-Jack Connector for Sennheiser Systems

DPA FID88F34-2 d:fine 88 Headset Mic Features:

  • Pristine audio quality
  • Lightweight and flexible
  • Easy mounting to both the left and right
  • Minimal visual impact
  • Resistant to humidity

DPA FID88F34-2 d:fine 88 Headset Mic Specifications:

  • Manufacturer code: FID88F34-2
  • Directional characteristics: Cardioid
  • Principle of operation: Pressure gradient
  • Cartridge type: Pre-polarized condenser
  • Frequency range: 20 Hz - 20 kHz
  • Frequency range, +/- 2 dB, Near field 2-3 cm (0.8-1.2in): 100 Hz – 20 kHz (4 – 6 dB soft boost at 15 kHz)
  • Sensitivity, nominal +/- 3 dB at 1 kHz: 6mV/Pa; -44 dB re. 1 V/Pa
  • Equivalent noise level, A-weighted: Typ. 26 dB(A) re. 20 µPa (max. 28 dB(A))
  • Equivalent noise level, ITU-R BS.468-4: Typ.38 dB (max. 40 dB)
  • S/N ratio (A-weighted), re. 1 kHz at 1 Pa (94 dB SPL): Typ. 68 dB(A)
  • Total Harmonic Distortion (THD): <1 % up to 123 dB SPL peak
  • Total Harmonic Distortion (THD): <1 % up to 120 dB SPL RMS sine
  • Dynamic Range: Typ. 97 dB
  • Max. SPL, Peak Before Clipping: 144 dB
  • Output Impedance:
    • From MicroDot: 30 - 40 ohm
    • From DAD6001-BC*: 100 ohm
  • Cable Drive Capability: Up to 300 m (984 ft) with DAD6001-BC* XLR adapter
  • Output Balance Principle: Signal balanced with DAD6001-BC* XLR adapter
  • Common Mode Rejection Ratio (CMRR): > 60 dB from 50 Hz to 15 kHz with DAD6001-BC* XLR adapter
  • Power Supply: For wireless systems: Min. 5 V through DPA adapter.
  • Current Consumption: Typ. 1.5 mA (microphone). 3.5 mA with DAD6001-BC* XLR adapter
  • Connector: Hardwired 3.5mm Locking Mini-Jack Connector for Sennheiser Systems
  • Color: Beige
  • Weight:
    • Single Ear - Microphone boom: 0.035 oz. (1 g)
    • Earhook: 0.035 oz. (1 g)
    • Cable: 0.28 oz. (8 g)
    • Total: 0.35 oz. (10 g)
  • Microphone Dimensions (L x Ø): 0.5" x 0.21" (12.7mm x 5.4mm
  • Microphone Boom Length: 120mm (4.7")
  • Capsule Diameter: 0.2" (5.4mm)
  • Cable Length: 4.1ft (1.25m)
  • Cable Diameter: 0.06" (1.6mm)
  • Cable Color: Beige
  • Polarity: +V at MicroDot pin for positive sound pressure (and pin 2 on DAD6001-BC XLR adapter*)
  • Temperature Range: -40 °F to 113 °F (-40 °C to 45 °C)
  • Relative Humidity (RH): Up to 90%

*Note: DAD6001-BC sold separately
