Mobile Rack Device Mounting Kit with (4) 2.5" Hot-Swap Drive Cages


Our Price: $899.00
(Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

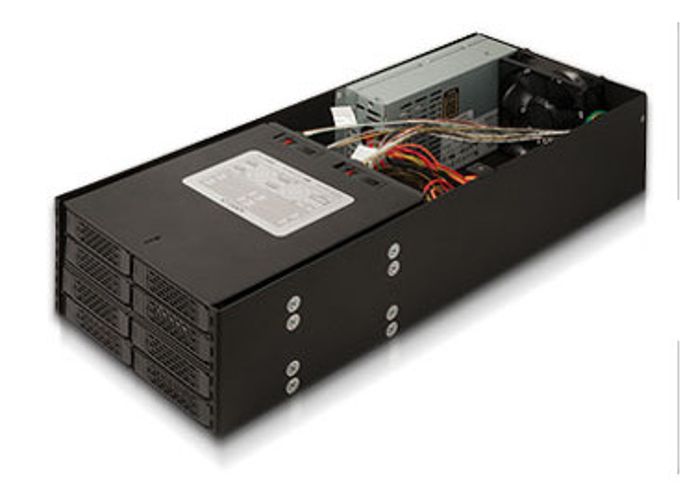

Sonnet's Mobile Rack Device Mounting Kit enables you to install one full-height or two half-height 5.25" form factor mobile rack devices inside the Echo Express III-R or xMac Pro Server rackmount enclosure. You can install a variety of devices up to 8" in length inside the mobile rack kit—devices ranging from LTO tape drives to Blu-ray burners, and Sonnet's Qio™ MR Thunderbolt pro universal media reader to shuttle drive enclosures for 3.5" hard drives or 2.5" SSDs are compatible—and connect them to cards installed inside the Echo or xMac Pro Server chassis to further expand your tools at hand. An integrated 100W power supply powers the devices, while a quiet 80 mm fan cools them. If you need to install only one half-height device, blank plates are included to allow you to cover the remaining space to keep a clean look.

Installation of devices and the kit itself is easy. The Mobile Rack Device Mounting Kit includes mounting screws to secure your mobile rack devices within the kit's frame. After securing the devices, attach one of the eight included power connectors to each device, connect interface cables to the devices and route them through the cable pass-through opening. Connect the interface cables to cards installed in the Echo or xMac Server Pro chassis, and then secure the entire mobile rack kit assembly inside the rackmount enclosure.

Sonnet MR-LTO-X4SSD Includes:

  • Mobile Rack Device Mounting Kit
  • Four 2.5” 6Gb/s SATA hot-swap drive cages
  • Mini-SAS-to-internal x4 SATA cable
  • Mini-SAS-to-SAS (SFF-8482) cable
  • External 8-port 6Gb/s SATA PCIe 2.0 card
  • You add:
    • Four of your own 2.5” SSDs or hard drives
    • LTO tape drive

Sonnet MR-LTO-X4SSD Features:

  • Enables Installation of Mobile Rack Devices In the Echo Express III-R and xMac Pro Server—Supports either one full-height or two half-height devices inside the rackmount enclosure
  • Integrated 100W Power Supply—Plenty of power for installed devices
  • Three PCIe Slots—Supports three full-length, full-height, single-width cards, or one double-width card plus one single-width card
  • Eight Power Connectors—Matching connector for nearly every device
  • Large, Quiet Fan—80 mm fan provides good airflow over the devices to cool them
