Radio Design Labs DS-J1
Microphone XLR to Terminal Block Input Assembly

OUR PART #  DS-J1

Our Price: $57.53
List Price: $67.90
You save 15%! (Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

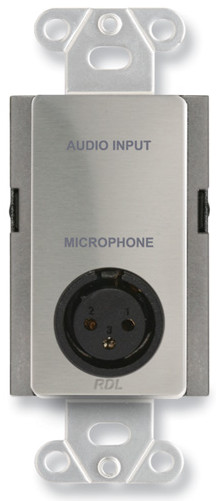

The Radio Design Labs D SERIES-J1 is a complete microphone input panel assembly.  Connections to the female front-panel XLR jack are made on a rear barrier block.  Four terminals are provided: CASE GROUND, SHIELD (XLR pin 1), + (XLR pin 2) and - (XLR pin 3).  The installer may install a jumper between the SHIELD connection and CASE GROUND if desired.  The back of the D SERIES-J1 is finished with a metal enclosure clearly labeled for easy installation.

The D SERIES-J1 fits directly into back boxes, available from RDL to fit cabinets or US or international walls (RDL WB-1U).  They may be mounted directly into cabinets or most standard US single gang electrical boxes.

Radio Design Labs DS-J1 Features:

  • Wall-Mounted Microphone Input Panel
  • XLR Input Connector with Gold Contacts
  • Barrier Block Wiring Connections
  • Ground-Lift Terminals on Barrier Block

Radio Design Labs DS-J1 Specifications:

  • Input Connector: XLR female gold contacts
  • Output Connector: Barrier block
  • Output Connections (4): CASE GROUND, SHIELD (XLR pin 1), + (XLR pin 2), - (XLR pin 3)
  • Power Requirement: Passive
  • Dimensions: 4.13" H x 1.7" W x 2.15" D (10.49 x 4.32 x 5.47 cm)
  • Mounting Box Requirements: 1.8" W x 1.75" D (4.57 x 4.45 cm)
  • Package Type: Cardboard Box
  • Package Dimensions: 3.625" x 4.625" x 2.125"
  • Shipping Weight: 0.44 lbs.
  • WEEE weight: 0.285 lbs.
  • Tariff code: 8536.69.4030

Radio Design Labs DS-J1
Microphone XLR to Terminal Block Input Assembly

OUR PART #  DS-J1

Product Information:

The Radio Design Labs D SERIES-J1 is a complete microphone input panel assembly.  Connections to the female front-panel XLR jack are made on a rear barrier block.  Four terminals are provided: CASE GROUND, SHIELD (XLR pin 1), + (XLR pin 2) and - (XLR pin 3).  The installer may install a jumper between the SHIELD connection and CASE GROUND if desired.  The back of the D SERIES-J1 is finished with a metal enclosure clearly labeled for easy installation.

The D SERIES-J1 fits directly into back boxes, available from RDL to fit cabinets or US or international walls (RDL WB-1U).  They may be mounted directly into cabinets or most standard US single gang electrical boxes.

Radio Design Labs DS-J1 Features:

  • Wall-Mounted Microphone Input Panel
  • XLR Input Connector with Gold Contacts
  • Barrier Block Wiring Connections
  • Ground-Lift Terminals on Barrier Block

Radio Design Labs DS-J1 Specifications:

  • Input Connector: XLR female gold contacts
  • Output Connector: Barrier block
  • Output Connections (4): CASE GROUND, SHIELD (XLR pin 1), + (XLR pin 2), - (XLR pin 3)
  • Power Requirement: Passive
  • Dimensions: 4.13" H x 1.7" W x 2.15" D (10.49 x 4.32 x 5.47 cm)
  • Mounting Box Requirements: 1.8" W x 1.75" D (4.57 x 4.45 cm)
  • Package Type: Cardboard Box
  • Package Dimensions: 3.625" x 4.625" x 2.125"
  • Shipping Weight: 0.44 lbs.
  • WEEE weight: 0.285 lbs.
  • Tariff code: 8536.69.4030
