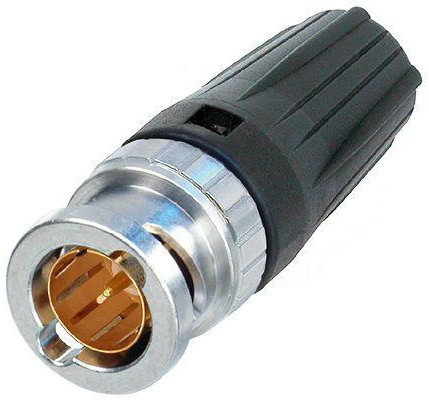

Neutrik NBNC75BZV14 75 Ohm BNC Cable Connector with Rear Twist

The rearTWIST BNC cable connector offers a true 75 O design and is perfectly suitable for HD applications. The patented rearTWIST boot guarantees easy access even in high density applications and offers color coding.

Neutrik NBNC75BZV14 Specifications:

• Suitable Cable: Belden 1794A
• Crimp Size:
  • Pin: 1.6mm (square) or 1.75mm (hex)
  • Shield: 8.23mm (hex)
• “rearTWIST Principle” locking/unlocking using the easily accessible soft touch boot (Patent DE 100 48507)
• Ideal for recessed bulkheads where access to the “head” of the connector might be an issue. These connectors turn from the back and not the front.
• True 75 ohm design meets the stringent HDTV / DVD requirements
• Leading area: Avoids tilting due to side forces to protect contacts from deformation. Guarantees a lifetime of min. 1000 mating cycles!
• Snug-fit center pin insert provides tactile feedback
• Shield and jacket crimp technology prevents the problem of an exposed grounding braid on cable assemblies
• Excellent cable protection and retention
• Precise Swiss machined brass parts for outstanding durability
• Accessories include color coded boots in 10 standard colors, crimp tool and dies
