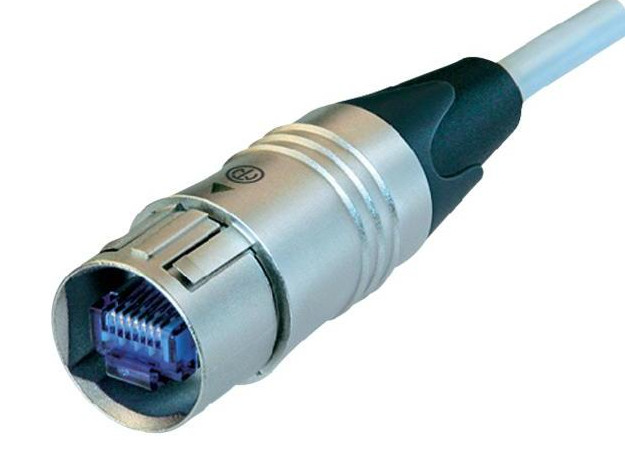

Neutrik NKE6S-10 10m ethercon CAT6 Patch Cable with Dual Plug Carriers

The Neutrik NKE6S-10 is a preassembled ethercon CAT6 patch cable that uses a shielded S/FTP cable with cable plug carrier offering a robust metal shell and Push-Pull locking system.

Features

• CAT6 compliant - data rate up to 10 GBit/s
• CAT6 performance - fast data transmission and highbandwidth applications
• CAT6 specifications according TIA / EIA 568B, ISO /IEC 11801, EN 50173
• IP65 - Dust and waterproof in mated condition
• Shielded system - high noise immunity and EMIprotection
• Push Pull mating - secure and proven locking system
• Ready made patch cables with rugged cable carrier and unique chuck-type strain relief

Specifications

• Length: 10 meters
• Contact Resistance: < 10 MOhms (inner)
• Dielectric Strength: 1 kVdc
• Frequency Range: 1 - 250 MHz
• Insulation Resistance: >/= 0.5 GOhms
• Rated current per contact: 1.5 A
• Rated voltage: 50 V
• Insertion force: < /= 40 N
• Withdrawal force: < /= 20 N
• Lifetime: > 1000 mating cycles
• Wire Size: 8 x AWG 27/7 mm²
• Locking Device: Push-Pull
• Boot: Polyurethane
• Contact plating: 0.7 µm Au over 1.2 µm Niplating
• Contacts: Bronze (CuSn8)
• Insert: Polyamide (PA 6.6 30 % GR)
• Shell: Zinc diecast (ZnAl4Cu1)
• Shell plating: Nickel
• Strain relief: Polyacetal (POM)
• Flammability: UL 94 HB
• Standard compliance: CAT6, Class E acc. TIA/EIA586B, IEC11801, EN 50173
• Protection class: IP 65
• Temperature range: -10 °C to +60 °C
