DPA Microphones FIO66F56

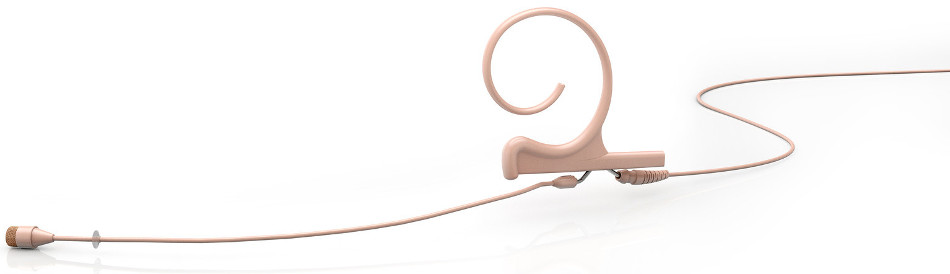

d:fine Single Ear Omnidirectional Headset Microphone with Hardwired TA5F Connector and 110mm Long Boom Arm, Beige

OUR PART #:  FIO66F56

The d:fine™ 66 Headset Microphone combines the legendary 4066 Omnidirectional capsule with the lightweight and flexible d:fine Headset system.
Learn More
Our Price: $729.95

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

DPA Microphones FIO66F56
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The d:fine™ 66 Headset Microphone combines the legendary 4066 Omnidirectional capsule with the lightweight and flexible d:fine Headset system. Available in black, beige, brown, and lime green, the DPA d:fine has been ergonomically designed to fit easily and seamlessly. It will adjust to fit any ear size and head shape while mounting securely and hardly visible. Just by rotating the boom and the earhook, the microphone can be moved from left to right ear, or into the optimum position. Staying true to the DPA legacy, d:fine offers accurate, natural voice intelligibility and very high SPL capabilities – users can both speak and sing into the mic with no hint of distortion.

The DPA d:fine 66 is available with single- or dual-ear mounts. The dual-ear mount is dedicated for more active situations and will be safe in even the most rigorous and energetic performance applications.

The d:fine mic with boom, earhook, and cable is delivered in a neat, roadworthy box with room for accessories like transmitters and batteries. The DPA accessory line includes power supplies and adapters or cables with fixed connectors (MicroDot, 3-pin Lemo, TA4F Mini-XLR, Mini-Jack).

Includes:

  • Cable clip which anchors the cable to your clothing
  • Five color coded identification rings
  • Three foam windscreens
  • Hardwired TA5F Connector for Lectrosonics Systems

DPA FIO66F56 Features:

  • Pristine audio quality
  • Easy single-ear or dual-ear mounting
  • Minimal visual impact

DPA FIO66F56 Specifications:

  • Directional Characteristics:  Omnidirectional
  • Principle of Operation:  Pressure
  • Cartridge Type:  Pre-polarized condenser
  • Frequency Range:  20 Hz - 20 kHz
  • Frequency Range, ± 2 dB:  Soft boost grid: 20 Hz– 20 kHz, 3 dB soft boost at 8 – 20 kHz. Optional High boost grid: 20 Hz – 20kHz, 10 dB boost at 12 kHz.
  • Sensitivity, Nominal +/- 3 dB at 1 kHz:  6mV/Pa; -44 dB re. 1 V/Pa
  • Equivalent Noise Level, A-weighted:  Typ. 26dB(A) re. 20 µPa (max. 28 dB(A))
  • Equivalent Noise Level, ITU-R BS.468-4:  Typ. 38dB (max. 40 dB)
  • S/N Ratio (A-weighted), re. 1 kHz at 1 Pa (94 dB SPL):  Typ. 68 dB(A)
  • Total Harmonic Distortion (THD):  <1 % up to 123 dB SPL peak
  • Total Harmonic Distortion (THD):  <1 % up to 120 dB SPL RMS sine
  • Dynamic Range:  Typ. 97 dB
  • Max. SPL, Peak Before Clipping:  144 dB
  • Output Impedance:
    • From MicroDot:  30 - 40 ohm
    • From DAD6001-BC:  100 ohm
  • Cable Drive Capability:  Up to 300 m (984 ft) with DAD6001-BC XLR adapter
  • Output Balance Principle:  Signal balanced with DAD6001-BC XLR adapter
  • Common Mode Rejection Ratio (CMRR):  > 60 dB from 50 Hz to 15 kHz with DAD6001-BC XLR adapter
  • Power Supply:  For wireless systems: Min. 5 V through DPA adapter.
  • Current Consumption:  Typ. 1.5 mA (microphone). 3.5 mA with DAD6001-BC XLR adapter
  • Connector:  Hardwired TA5F Connector for Lectrosonics Systems
  • Color:  Black, Brown or Beige
  • Weight:
    • Single Ear - Microphone Boom: 0.035 oz (1 g)
    • Earhook: 0.035 oz (1 g)
    • Cable: 0.28 oz (8 g)
    • Total: 0.35 oz (10 g)
  • Microphone Dimensions:
    • Length: 10 mm
    • Diameter: 5 mm
    • Microphone Boom Length: 110 mm
    • Capsule Diameter:  0.2 in (5.4 mm)
  • Cable Length:  4.1 ft (1.25 m)
  • Cable Color:  Black, Brown or Beige
  • Cable Diameter:  0.06 in (1.6 mm)
  • Polarity:  +V at MicroDot pin for positive sound pressure (and pin 2 on DAD6001-BC XLR adapter)
  • Temperature range:  -40 °F to 113 °F (-40 °C to 45 °C)
  • Relative Humidity (RH):  Up to 90%
