Coleman Cable 23228-1000
1000' of 12AWG 2-Conductor Cable

OUR PART #:  23228-1000

This is a 2-conductor 12 AWG cable, commonly used for power and control applications.
Learn More
Our Price: $582.27
List Price: $831.80
You save 30%!
Write the first review.
Coleman Cable 23228-1000
Usually ships in 7-14 business days.
Need it sooner? Call us!

Related Products

This is a 2-conductor 12 AWG cable, commonly used for power and control applications.

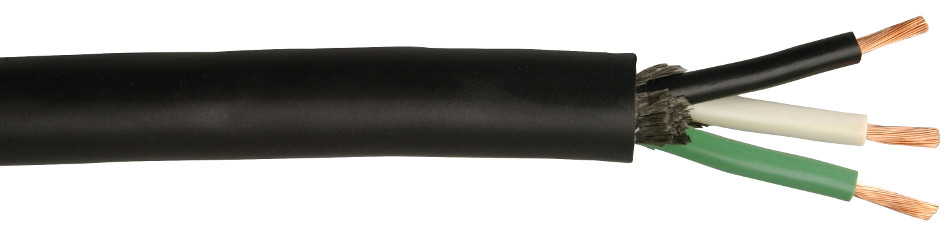

NOTE:  Image shown above is for illustrative purposes only; actual product is a 2-Conductor cable. Contact your Sales Representative for more information on this and other products.


  • Portable industrial machinery and compressors
  • Conveyor and automated production equipment
  • Indoor and outdoor temporary power uses


  • Excellent abrasion, ozone, sunlight, chemical and oilresistance, and waterresistant with high degree of flexibility
  • Non-wicking lightweight polypropylene fillers
  • Suitable and approved for submersion in water


  • Conductors:
    • 18 AWG – 10 AWG fully annealed strandedbare copper
    • Class K stranding per ASTM B 174
  • Insulation:
    • T*prene® Oil resistant ThermoplasticElastomer (TPE)
    • Brilliant colors for easy identification
  • Jacket: Water, sunlight, and oil resistant,flame-retardant Black Seoprene®Thermoplastic Elastomer (TPE)
  • Legend:
    • E54864 (UL) 300V -50C TO 105C -- CSA LL39573SJTOOW
    • (TPE) -50C TO 105C FT2 WATER RESISTANTP-241-3-MSHA
  • Industry Approvals:
    • UL Standard 62
    • NEC 501.140 Class I Div. 2
    • CSA 22. 2 No. 49
    • MSHA
    • NEC Article 400
    • Federal Spec #JC580
    • RoHS
