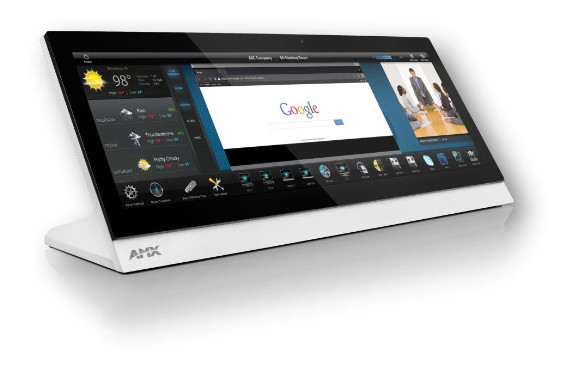

AMX MXT-1901-PAN
19.4" Panoramic Tabletop Touch Panel LCD

OUR PART #:  MXT-1901-PAN

The AMX MXT-1901-PAN features an exceptionally elegant interface designed specifically for dedicated room control.
Learn More

Call for price! Not available online.
List Price: $9,600.00

Similar Products

The AMX MXT-1901-PAN features an exceptionally elegant interface designed specifically for dedicated room control.  It has been significantly enhanced with a new G5 Graphic Engine to provide even faster and smoother animations and transitions, plus a new Quad Core Processor quadruples the processing power. The Modero X Series Touch Panels provide several industry firsts including a beautiful, panoramic capacitive multi-touch screen that provides users access to multiple applications with minimal navigation. It is hardware-ready for support of Near Field Communication™ (NFC) Technology to allow personalization of the user experience and productivity enhancing capabilities through integration with NFC capable personal devices. The distinctive, low-profile design is engineered to sit perfectly on a table without obstructing views. Modero X Series is the control surface that simply delivers more.

Common Applications
The MXT-1901-PAN is ideal for boardrooms, conference rooms or auditoriums where a panoramic control surface is needed to provide access to multiple functions simultaneously while remaining elegantly unobtrusive. In residences, it is perfect for kitchens, home theaters or home offices where the panoramic control surface can be used to manage systems throughout the house.

AMX MXT-1901-PAN Features:

  • G5 Graphics Engine and Quad Core Processing
    The most powerful processing in the industry delivers smooth gesturing, swiping, dynamic reordering, enhanced animation with transitions all at higher speeds for an experience any user will enjoy
  • Simplified Enterprise Touch Panel Updates
    Deploy and update touch panel files from a network URL for simplified company-wide updates
  • Built-in Web Browser and Document Viewers
    Conveniently simplifies accessing and presenting documents during meetings
  • Panoramic Control Surface
    Combined with the new PanTastic UI, the panoramic touch panels take the user experience to a whole new level with an impressive control surface to perform activities much in the same way you use a computer – multi-tasking with dedicated spaces
  • Latest Communication Technologies
    HD video chat and conferencing using integrated camera (tabletop and landscape versions only) and supports Near Field Communication (NFC) – short-range wireless technologies that deliver peer-to-peer communication by 'sharing, pairing and transaction' between RF devices like exchanging data/identities
  • Enhanced Usability
    External phone connections via Bluetooth or USB and HD video streaming
  • Perfect From Any Angle
    Includes In-Plane Switching (IPS), the latest technology in popular tablet/mobile devices that delivers the widest viewing angles and the most accurate color reproduction on the market


AMX MXT-1901-PAN Specifications:

Dimensions (HxWxD):  7" x 20-3/8" x 5-5/16" (177 mm x 519 mm x 135 mm)

Weight:  9.5 lbs. (4.31 Kg)

Power Consumption:

  • Full-On:  35 W (12 VDC, 2.9 A)
  • Standby:  7 W (12 VDC, 0.6 A)

Touch Screen Display:

  • Display Type:  TFT Active Matrix Color LCD with In-plane Switching Technology (IPS)
  • Display Size (WH):  Landscape 20.4" x 6.9" (519 mm x 175 mm), 20.4" (518 mm) diagonal
  • Viewable Area (WH):  Landscape 18.7" x 5.9" (475 mm x 151 mm), 19.4" (493 mm) diagonal
  • Resolution:  Landscape 1920x530
  • Aspect Ratio:  Landscape 18:5
  • Brightness:  350 cd/m2
  • Contrast Ratio:  1000:1
  • Color Depth:  16.7M colors
  • Illumination:  LED
  • Touch Overlay:  Projected capacitive, multi-touch support, 3 simultaneous max

Viewing Angle:

  • Vertical:  ± 89°
  • Horizontal:  ± 89°

Memory:

  • SDRAM:  2 GB
  • Flash:  16 GB
  • Maximum Project Size:  12 GB flash, available for apps and touch panel files

Communications:

  • Ethernet: 10/100 port, RJ-45 connector. Supported IP and IP-based protocols: UCP, TCP, ICMP, ICSP, IGMP, DHCP, Telnet, FTP, DNS, RFB (for VNC), HTTP
  • USB:
    • (3) USB host 2.0, Type A ports: Firmware upgrade, touch panel file transfer, JPEG image viewer, HID peripherals, USB audio output for headsets
  • Near Field Communication (NFC): Supports standards ISO/IEC 15693, ISO/IEC 14443A, ISO/IEC 14443B; Unique Identifier (UID), typ range=.25", max = .5"
  • Bluetooth*:
    • Mouse/Keyboard: HID Profile v1.1, requires MXA-BT Bluetooth Adapter (FG5968-19, sold separately)
    • Handset: Hands Free Profile v1.5, Headset Profile v1.2, requires MXA-BT Bluetooth Adapter (FG5968-19, sold separately) and MXA-HST Bluetooth Handset (FG5968-17, sold separately)

Video:

  • Supported Video Codecs:
    • MPEG2-TS: MPEG-2 Main Profile @High Level up to 720p at 25 fps (decode only)
    • MPEG-2-TS: H.264 High Profile @Layer 4, AAC-LC up to 720p at 25 fps (encode/decode)
    • MJPEG up to 720p at 25 fps (decode only)
  • Supported Video Transport Streams:  MPEG-TS for MPEG-2 and H.264, HTTP for MJPEG
  • Max Number of Active Video Streams:  One decode plus one encode
  • Video Conferencing:  Panel-to-panel and video chat*

Audio:

  • Microphone:  -42 dB ±3 dB sensitivity FET microphone
  • Speakers:  4 ohm, 2 Watt, 300 Hz cutoff frequency
  • Supported Audio Codecs:
    • MP2 Layer I and II, MP3 (8 kHz, 11.025 kHz, 12 kHz, 16 kHz, 22.05 kHz, 24 kHz, 32 kHz, 44.1 kHz, 48 kHz)
    • AAC-LC (8 kHz, 96 kHz)
    • .711 with µLaw (VoIP* encode/decode at 8 kHz)
  • Audio Output:  USB Audio out USB port (head/hand set support)*
  • File Formats:  WAV, MP3 (as part of touch panel file only - no USB storage)
  • Intercom*:  Full Duplex VoIP, SIP v2.0

Graphics Engine:

  • AMX G5:  G5 enhanced feature set supporting multi-touch and gestures, scrolling, transitions, applications - See TPD5 Operations Guide for more information

Embedded Applications:

  • Viewer Applications*:  PDF, JPEG, BMP, PNG, TIFF, GIF
  • Remote Management:  VNC Server
  • Video Conferencing:  Skype
  • Conferencing:  Audio (Full Duplex Intercom*)

Front Panel Components:

  • Light Sensor:  Photosensitive light detector for automatic adjustment of the panel brightness
  • Proximity Detector:  Max range = ~3', typ range = ~1', FOV = ~10 degrees
  • Camera:  HD 720p camera for video conferencing/video chat support
  • LED Indicators:  Camera active indicator
  • Sleep Button:  Sleep button to activate sleep mode and powering off. Also provides access to setup pages (can be disabled)

Connections:

  • Ethernet: 10/100 port, RJ-45 connector
  • USB:
    • (3) USB host 2.0, Type A ports
    • 1) Micro-USB device port (currently not in use)
  • Power: 2-pin, locking 3.5mm Phoenix connector

EXTERNAL POWER SUPPLY REQUIRED:
Requires one of these AMX power sources (not included-sold separately):

  • PSN4.4 Power Supply, 4.4 A, 3.5 mm Phoenix, 13.5 VDC (FG423-45)
  • PSR4.4 Power Supply, 4.4 A, 3.5 mm Phoenix with Retention Screws (FG423-46)
  • MXA-MPL Modero X/S Series Multi Preview Live (FG5968-10)
  • MXA-MP Modero X/S Series Multi Preview (FG5968-20)

Certifications:

  • FCC Part 15 Class B
  • C-Tick CISPR 22 Class B
  • CE EN 55022 Class B and EN 55024
  • CB Scheme IEC 60950-1
  • IC
  • IEC/EN-60950
  • UL 60950-1
  • RoHS/WEEE compliant

Environmental:

  • Temperature (Operating): 32° F to 104° F (0° C to 40° C)
  • Temperature (Storage): 4° F to 140° F (-20° C to 60° C)
  • Humidity (Operating): 20% to 85% RH
  • Humidity (Storage): 5% to 85% RH
  • Power ("Heat") Dissipation:
    • On: 119.4 BTU/hr
    • Standby: 23.9 BTU/hr

Included Accessories:

  • Locking 2-pin Phoenix mate (41-0002-SA)
  • MXA-USB-C, USB Port Cover Kit, Modero X/S Series Touch Panel (FG5968-18)
  • HPG-10-10K, 3/4" Mini-Grommet (FG570-01)
  • MXA-CLK, Modero X/S Series Cleaning Kit (FG5968-16)

*This feature will be available upon release of a future firmware update.

Note: Specifications are subject to change.
