TeachLogic UT-96BP
96 Channel UHF Bodypack Transmitter for use with TeachLogic Wireless Systems

OUR PART #  UT-96BP

Our Price: $215.00
List Price: $265.00
You save 19%! (Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

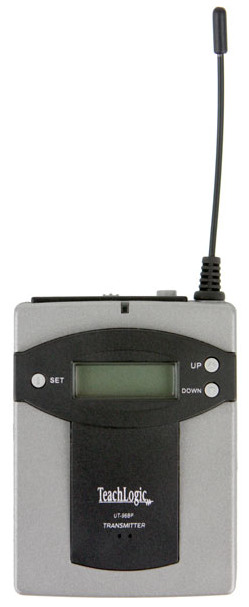

The TeachLogic UT-96BP Body-Pack transmits a composite voice and RF (UHF) signal to the receiver. It is usually worn on the waistband with an external microphone plugged in for vocal input. Various microphones are available for hands free presentation. Reliable connectivity is assured in excess of 200 feet. Requires two “AA” batteries for 6–8 hours of continuous transmission. The UT-96BP is designed for use with TeachLogic's Wireless Systems and operates on the 640 - 664 MHz frequency band.

TeachLogic UT-96BP Features:

  • 96 UHF Channel Selectable
  • Push-button Channel Select
  • LCD Readout
  • Selected Channel #
  • Frequency
  • Battery Condition
  • Mic Input 3.5 mm
  • Mic Mute Button
  • Low Battery Power Consumption
  • Durable Metal Case
  • Aux Line Level Input Jack 3.5 mm
  • Hi/Mid/Low Mic Sensitivity Switch
  • Metal Belt Clip
  • Drop-In Charger Compatible
  • Requires two “AA” batteries

TeachLogic UT-96BP Specifications:

  • Operating Frequency Band:  640 - 664 MHz
  • Selectable Channels:  96 Pre-Programmed
  • Maximum Deviation:  80 kHz, with Level Limiting
  • Dynamic Range:  > 80 dB
  • THD:  < 1%
  • Pre/De-emphasis:  < 50 µs
  • Audio Input:  In, Aux In, 3.5 mm
  • AF Control:
    • Mic Mute Button
    • Mic Hi/Mid/Low Switch
  • Battery:  1.2 v NiMH rechargeable x2 or 1.5 v Alkaline x2
  • Operating Life (full charge):  14 hrs. (NiMH) or 17 hrs. (Alkaline)
  • Housing:  Aluminum
  • Dimensions:  1" D x 2½" W x 33/8" H
  • Weight (with batteries):  10.5 oz.

TeachLogic UT-96BP
96 Channel UHF Bodypack Transmitter for use with TeachLogic Wireless Systems

OUR PART #  UT-96BP

Product Information:

The TeachLogic UT-96BP Body-Pack transmits a composite voice and RF (UHF) signal to the receiver. It is usually worn on the waistband with an external microphone plugged in for vocal input. Various microphones are available for hands free presentation. Reliable connectivity is assured in excess of 200 feet. Requires two “AA” batteries for 6–8 hours of continuous transmission. The UT-96BP is designed for use with TeachLogic's Wireless Systems and operates on the 640 - 664 MHz frequency band.

TeachLogic UT-96BP Features:

  • 96 UHF Channel Selectable
  • Push-button Channel Select
  • LCD Readout
  • Selected Channel #
  • Frequency
  • Battery Condition
  • Mic Input 3.5 mm
  • Mic Mute Button
  • Low Battery Power Consumption
  • Durable Metal Case
  • Aux Line Level Input Jack 3.5 mm
  • Hi/Mid/Low Mic Sensitivity Switch
  • Metal Belt Clip
  • Drop-In Charger Compatible
  • Requires two “AA” batteries

TeachLogic UT-96BP Specifications:

  • Operating Frequency Band:  640 - 664 MHz
  • Selectable Channels:  96 Pre-Programmed
  • Maximum Deviation:  80 kHz, with Level Limiting
  • Dynamic Range:  > 80 dB
  • THD:  < 1%
  • Pre/De-emphasis:  < 50 µs
  • Audio Input:  In, Aux In, 3.5 mm
  • AF Control:
    • Mic Mute Button
    • Mic Hi/Mid/Low Switch
  • Battery:  1.2 v NiMH rechargeable x2 or 1.5 v Alkaline x2
  • Operating Life (full charge):  14 hrs. (NiMH) or 17 hrs. (Alkaline)
  • Housing:  Aluminum
  • Dimensions:  1" D x 2½" W x 33/8" H
  • Weight (with batteries):  10.5 oz.
