1800 Watt 18" Compact Powered Arrayable Subwoofer with DPDA Input Module


Call for price! Not available online.
List Price: $8,574.80

Similar Products

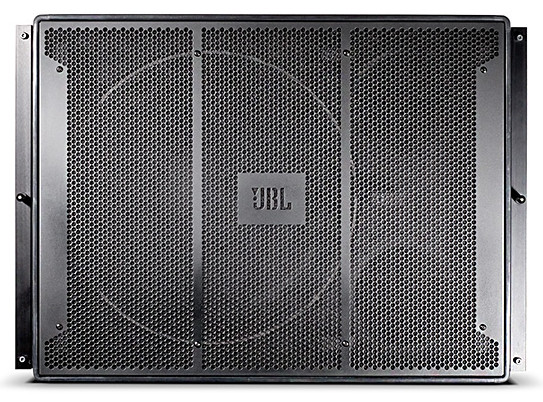

The JBL VT4881ADP-DA Compact Powered 18" Arrayable Subwoofer is designed to deliver high quality sound reinforcement of VLF (Very Low Frequency) musical information for a variety of applications including concert audio, corporate A/V and theatrical presentations of all types. Ideal companion to VT4887ADP-DA compact three-way systems.

The VT4881ADP-DA is a lightweight, vented sub-woofer enclosure housing one Ultra-Long Excursion 18" woofer and a JBL DrivePack DP1 fully integrated power and DSP electronics package. The JBL DrivePack, designed in cooperation with Harman Professional development partners, brings leading-edge technology to the VERTEC DP Series including patented high efficiency Class-I power amplifier technology and onboard BSS Omnidrive HD digital signal processing. This provides not only unmatched audio quality and performance but also onboard DSP functionality that communicates readiness and operational status to the user, and monitors fault detection of components and electronics.

An Ultra Long Excursion 18" VLF component, fitted with dual voice coils, and Ultra Robust composite cone provides high output capabilities with an advantageous power-to-weight ratio. Enclosure features: foam-back perforated steel grille; speaker cone treated with weather-resistant compound; rigging tubes and hinge bars made from premium-grade alloy aluminum; plated hinge pins; stainless steel quick-release pin restraining lanyards; and inter-locking rubber feet which allow vertical stacking of multiple inter-locking units, including reverse ground-stacking for cardioid subwoofer array applications if desired. VT4881ADP-DA rigging hardware (same as in the companion VT4887ADP-DA compact full-range system) relies on quick-release pins and end-mounted metal frames to couple adjacent units together in rigid but flexible arrays.

JBL VT4881ADP-DA Features:

  • 2269G Advanced Technology Component: Differential Drive® Neodymium Magnet, Dual Voice Coil, Direct Cooled™ cone transducer with Ultra-Long Excursion capabilities
  • JBL DrivePack® technology delivers superb audio quality and robust high efficiency Class-I power, perfectly matched to the enclosure, with comprehensive onboard BSS Omnidrive HD digital signal processing.
  • Modular bay fitted with DPDA input module; accepts other optional versions  (NOTE:  For more information on DPDA Input Module, refer to attached DPDA Input Module Specification Sheet under the Documentation Tab)
  • World-wide AC line voltages are automatically selected for 50 or 60 Hz.
  • Advanced construction techniques using JBL PlyMax™ provide exceptionally rigid, lightweight enclosure
  • Rugged DuraFlex™ exterior finish; Weatherized loudspeaker cone.
  • Integrated S.A.F.E™ suspension system: Premium heat-treated alloys provide rigid, reliable hanging arrays designed for vertical orientation at various angles.

JBL VT4881ADP-DA Specifications:

  • Frequency Range: 25 Hz - 160 Hz (-10 dB)
  • Frequency Response: 34 Hz - 125 Hz (-3 dB)
  • Power Rating: 3600W Peak; 1800W Continuous
  • Maximum Peak Output: 131 dB SPL, 1m
  • Bandpass Nominal Impedance:  4 ohm
  • Dimensions: 31" W x 22.4" H x31.5" D (787 mm x 569 mm x 800 mm)
  • Net Weight: 137 lbs (62.2 kg)

NOTE:  For full specifications on this unit, please refer to attached VT4881ADP-DA Specification Sheet under the "Documentation" Tab
