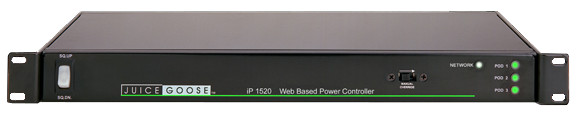

Juice Goose iP 1520
20 Amp, 7 Outlet Web Based Power Controller

OUR PART #:  IP-1520

The Juice Goose iP 1520 is a microcontroller based power distribution device that can be accessed via internet or intranet communications using Ethernet or RS232 connections.
Learn More
Our Price: $599.00
List Price: $706.00
You save 15%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Juice Goose iP 1520
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The Juice Goose iP 1520 is a microcontroller based power distribution device that can be accessed via internet or intranet communications using Ethernet or RS232 connections. With this remote access, individual AC receptacles can be turned on and off and monitored for electrical current flow. The iP 1520 has a twenty amp capacity and provides AC line conditioning and surge protection.

The iP 1520 provides economical web or intranet based remote power control to six receptacles grouped into three individual Power Pods. Each of these Pods can be turned on and off individually from anywhere on the planet. In addition, current draw can be monitored from  0.2 to 20.0 amps per power POD.

The iP 1520 can be controlled by the on board web server graphic interface that can be accessed by any web browser. It can also be remote controlled by RS232 connection to commercial or proprietary control systems. Using third party programs the iP 1520 can be scheduled to turn on and off at specific times. Also, its outlets can be sequenced on and off if required for application in audio systems. This remote control can also be used to reboot DSPs or other processor based electronics as well as to save energy costs by scheduling electronic equipment to turn off when not in use.

RS232 Control

The RJ11 style connector on the back of the iP1520 chassis (labeled "RS232") can be used for remote control of this unit via RS232 protocol over distances of no more than 50 feet. Commands for this control are detailed in the iP 1520 Manual in the section titled "RS232 Control and Monitoring." (NOTE:  iP 1520 Manual is attached under the Documentation Tab)

Local and Remote Monitoring

Operation and status of the iP 1520 and connected equipment can be observed in several ways. Each of three lights on the front of the iP 1520 turn on to indicate which of the three Power Pods have been turned on. A fourth LED indicates power on and active data network communications. By way of the on board web server or an appropriate third party interface, each of the three Power Pods can be monitored to determine if connected equipment is on and consuming power.

Power Conditioning

The iP 1520 provides AC line protection and filtration across hot, neutral and ground. In addition to guarding against dangerous voltage surges, this unit reduces high frequency common and normal mode noise by up to 70 dB in a range up to 30 Mhz.

Failsafe Control

This power module features three levels of on and off control, to provide fail safe operation in the event of a system or network malfunction. The iP 1520 has a switch on the front of the chassis which can be used to sequence on or off all switched outlets if there is a data network failure. Should there be an internal processor fault, the Manual Override switch, also on the front of the chassis, can turn the unit on, as well.

Twenty Amp Power Rating

The 20 amp capacity of the iP 1520 requires it to be assembled with a 12 gauge power cable and a NEMA 5/20P plug at the end of the power cord. This cable can be inserted into any AC receptacle with a comparable rating and the configuration of the duplex receptacle.

Juice Goose iP 1520 Features:

  • Internet, intranet and RS232 remote control
  • Local fail safe sequencing and manual override
  • On-board web server for easy set up, control, sequencing and monitoring
  • Front panel indicators for network connection and outlets on
  • Amperage monitoring from 0.20 to 20.0 amps per power POD
  • Administrator and User login options
  • Automatic Power Cycle to reboot a network data router if network connection is lost
  • AC line conditioning and surge protection

Juice Goose iP 1520 Specifications:

  • Chassis: 16 gauge steel with 11 gauge rackmount brackets
  • Dimensions (HxWxD): 1.75” x 19” x 7”
  • Weight: 10 lbs
  • Circuit Breaker: 20A thermal on back of the chassis
  • Technical Current Rating: 16A
  • Relay Current Rating: 30A
  • Number of Addressable Power Pods: Three
  • Power Input: Power cord with NEMA 5/20P connector (NOTE: Requires a 5/20R receptacle.)
  • Power Output: Six Switched NEMA 5/20R, One Unswitched NEMA 5/20R
  • Input Voltage: 120 VAC @ 60Hz
  • Signal Connections: Ethernet (RJ-45) RS 232(RJ-11)
  • Monitor Features: Local and remote, network connection and current level
  • Operating Temperature Range: -10C to +40C
