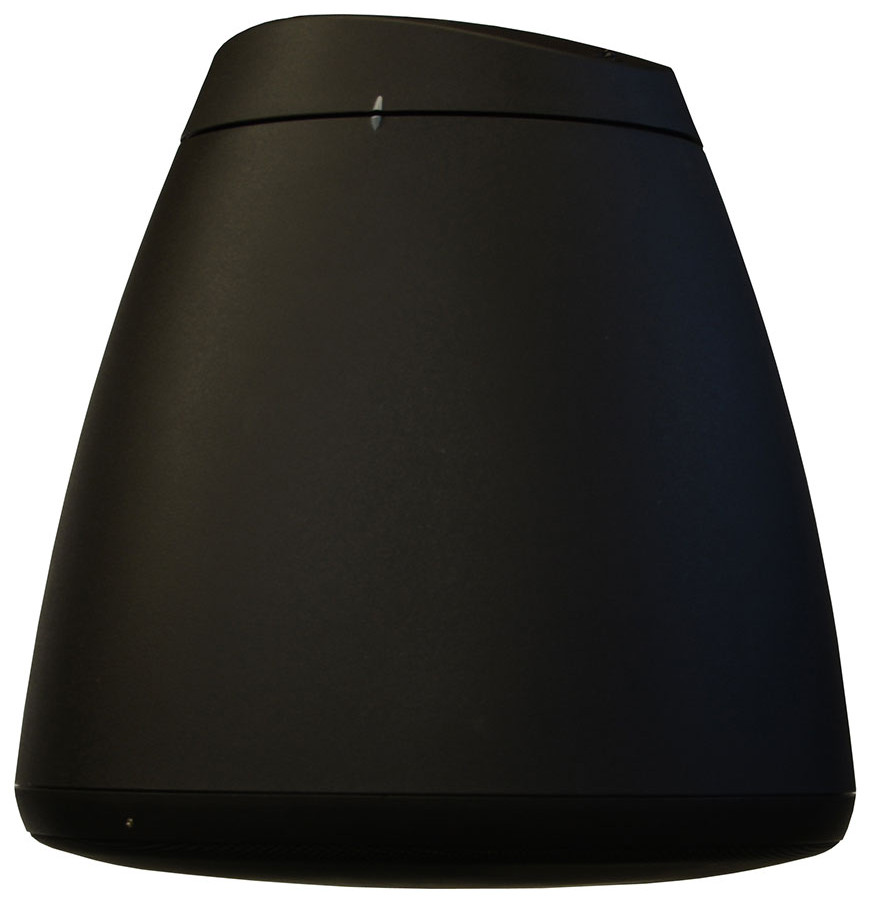

SoundTube RS62-EZ
6.5" Open-Ceiling Hanging Speaker, Black

OUR PART #  RS62-EZ-BK

Call for price! Not available online.


The Soundtube RS62-EZ is a 6.5-inch, coaxial speaker designed for open-ceiling applications. Hanging hardware is included and features built in hanging bracket and screw on cover plate for fast, easy and secure installation. The unit may be mounted direct-to-conduit via the locking cover plate (see installation instructions for additional information). The RS62-EZ speaker incorporates 4 position ceramic terminal block input connector and a 6 position tap switch with transformer bypass position.

Soundtube RS62-EZ Features:

  • One 6.5 inch (165 mm) coaxial driver with BroadBeamRing™ technology for consistently smooth high frequency
  • Weatherized components for indoor and outdoorapplications
  • Includes hanging hardware with galvanized steelcables and hanging bracket for fast, easy and secure installation. Unit may behung or mounted direct-to conduit via locking cover plate
  • Enclosure constructed of injection molded ABS withglass fiber reinforcement for lasting durability in indoor or outdoorapplications
  • 16 ohm impedance for easy daisy chaining in lowvoltage systems
  • Aluminum grille with protective powder coated finish
  • Built-in thermal fuse
  • Unit ships in eco-friendly, recyclable packaging
  • UL 1480 UEAY planned, UL 2239 approved
  • High-quality black or white paint finish; speaker ispaintable
  • Included accessories:
    • Hanging Hardware
    • Weather Plug
    • Cover Plate

Soundtube RS62-EZ Specifications:

  • Frequency Response (-3 dB):  100 Hz – 22 kHz
  • Frequency Response - Low (-10 dB):  80 Hz – 22kHz
  • Sensitivity:  86.0 dB
  • Power Capacity RMS:  32 W
  • Max SPL dB @ 1 M:  104.0 dB
  • Nominal Impedance:  16 ohm
  • Tweeter:  1.00 in (25.4 mm) Silk dome withBroadBeam Ring™
  • Transformer Options:  25 / 70.7 / 100 Voltoption with a 16 Ohm direct
  • Woofer:  6.5 in. (165 mm) Polypropylene cone,butyl rubber surround
  • Connections:  4 position ceramic terminalconnector
  • Height:  10.4 in. (264.2 mm)
  • Diameter:  10.08 in. (256.0 mm)
  • Weight:  7.0 lbs. (3.2 kg)
  • Shipping Weight:  9.0 lbs. (4.1 kg)
  • Colors:  Black / White, or Custom

SoundTube RS62-EZ
6.5" Open-Ceiling Hanging Speaker, Black

OUR PART #  RS62-EZ-BK

Product Information:

The Soundtube RS62-EZ is a 6.5-inch, coaxial speaker designed for open-ceiling applications. Hanging hardware is included and features built in hanging bracket and screw on cover plate for fast, easy and secure installation. The unit may be mounted direct-to-conduit via the locking cover plate (see installation instructions for additional information). The RS62-EZ speaker incorporates 4 position ceramic terminal block input connector and a 6 position tap switch with transformer bypass position.

Soundtube RS62-EZ Features:

  • One 6.5 inch (165 mm) coaxial driver with BroadBeamRing™ technology for consistently smooth high frequency
  • Weatherized components for indoor and outdoorapplications
  • Includes hanging hardware with galvanized steelcables and hanging bracket for fast, easy and secure installation. Unit may behung or mounted direct-to conduit via locking cover plate
  • Enclosure constructed of injection molded ABS withglass fiber reinforcement for lasting durability in indoor or outdoorapplications
  • 16 ohm impedance for easy daisy chaining in lowvoltage systems
  • Aluminum grille with protective powder coated finish
  • Built-in thermal fuse
  • Unit ships in eco-friendly, recyclable packaging
  • UL 1480 UEAY planned, UL 2239 approved
  • High-quality black or white paint finish; speaker ispaintable
  • Included accessories:
    • Hanging Hardware
    • Weather Plug
    • Cover Plate

Soundtube RS62-EZ Specifications:

  • Frequency Response (-3 dB):  100 Hz – 22 kHz
  • Frequency Response - Low (-10 dB):  80 Hz – 22kHz
  • Sensitivity:  86.0 dB
  • Power Capacity RMS:  32 W
  • Max SPL dB @ 1 M:  104.0 dB
  • Nominal Impedance:  16 ohm
  • Tweeter:  1.00 in (25.4 mm) Silk dome withBroadBeam Ring™
  • Transformer Options:  25 / 70.7 / 100 Voltoption with a 16 Ohm direct
  • Woofer:  6.5 in. (165 mm) Polypropylene cone,butyl rubber surround
  • Connections:  4 position ceramic terminalconnector
  • Height:  10.4 in. (264.2 mm)
  • Diameter:  10.08 in. (256.0 mm)
  • Weight:  7.0 lbs. (3.2 kg)
  • Shipping Weight:  9.0 lbs. (4.1 kg)
  • Colors:  Black / White, or Custom
