Leprecon Version III LPC-96V-WIRELESS
LPC Series 96-Channel Lighting Console with Encoders and Wireless DMX


The Leprecon Version III LPC-96V 96-Channel Lighting Console with encoders is an affordable lighting console designed for small to medium lighting systems.
Learn More

Call for price! Not available online.
List Price: $7,898.57

Related Products

The Leprecon Version III LPC-96V 96-Channel Lighting Console with encoders is an affordable lighting console designed for small to medium lighting systems.  Using a VGA monitor or touchscreen (sold separately), it's perfect for systems that combine conventional, LED, or automated fixtures, while offering hands-on fader control and an easy to use screen interface.  Use the LPC console's six “Quick Looks” for bringing up work lights or setting a look with the push of a button.  A straightforward approach is one of the elements that make this console ideal for theatre, clubs, production, touring, educational, and house of worship applications.

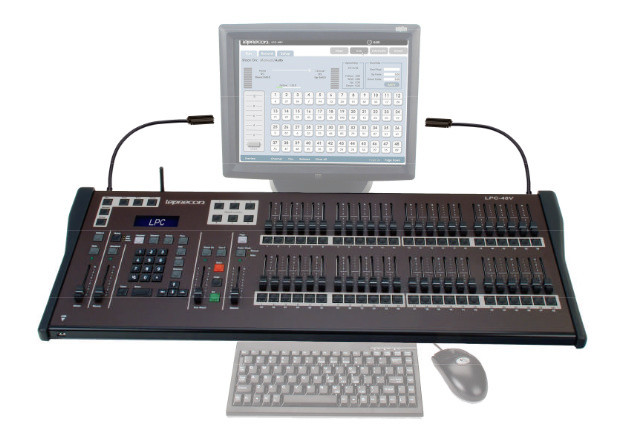

NOTE: Picture shown is for illustrative purposes.  Actual item will feature 96 channels (as opposed to the 48 shown), along with other possible variances.

The Version III LPC-96V features three front panel encoders for setting color, beam and position parameters in addition to many other functions, Version 3 software features an enhanced programming interface for easier recording, and supports DMX over Ethernet using the universal Art-Net protocol.

NOTE:  VGA monitor and USB mouse (as seen in picture) are required (sold separately; ELO touch screen monitors-also sold separately-are supported by LPC, allowing easy touch control instead of using a mouse).

Ships with power cord, vinyl cover, and 2-12" 4 pin XLR right angle Littlite® brand gooseneck lamps.

Leprecon LPC-96V, Version III Features:

  • Preset Mode: 48 faders, 48 submasters, or 96 single scene faders
  • 48 Submasters x 20 pages for 960 total Submasters
  • Two Scene Mode: 48 faders per scene with Manual crossfader
  • Front panel encoders for setting LED and automated fixture parameters
  • Bump modes include: Solo, Add, and Latch w/fade
  • 6 “Quick Looks” button playbacks with fade times
  • Cue Stack with 1000 cues
  • 512 board channels (96 faders, 416 virtual)
  • Two DMX-512 outputs using 5 pin XLR connectors
  • 2048 DMX channels via Art-Net over Ethernet
  • Supports one VGA monitor (sold separately-contact your sales representative)
  • Support for 15” or 19” ELO Touchscreen monitor (sold separately-contact your sales representative)

Software features:

  • Easy to use Graphic User Interface for programming Submasters, Cues, Chases
  • “Preview” in Run mode for inspecting and editing Cues and Submasters
  • Color, Beam and Position labels for automated fixture and LED control
  • Individual fade times for Color, Beam and Position
  • Color Mixer control for RGB/CMY fixtures

Mechanical/I/O Features:

  • VGA Output
  • 2 Ethernet ports (1 port dedicated to Art-Net)
  • 2 - 5 pin XLR DMX out connectors
  • 2 - 4 pin XLR for Littlite® work lamps - included
  • 3 USB connectors
  • Universal AC Power 100-240V with IEC power cord
  • Built in wireless DMX transmitter compatible with W-DMX
