Leprecon Version III LPC-48V-ELO15
LPC Series 48-Channel Lighting Console with Encoders and 15" ELO Touch Screen Monitor

OUR PART #:  LPC48-V3-ELO15

The Leprecon Version III LPC-48V 48-Channel Lighting Console with encoders is an affordable lighting console designed for small to medium lighting systems.
Learn More

Call for price! Not available online.
List Price: $6,867.14

Similar Products

The Leprecon Version III LPC-48V 48-Channel Lighting Console with encoders is an affordable lighting console designed for small to medium lighting systems. Using the included 15" ELO Touch Screen Monitor, it's perfect for systems that combine conventional, LED, or automated fixtures, while offering hands-on fader control and an easy to use screen interface. Use the LPC console's six “Quick Looks” for bringing up work lights or setting a look with the push of a button. A straightforward approach is one of the elements that make this console ideal for theatre, clubs, production, touring, educational, and house of worship applications.

The Version III LPC-48V features three front panel encoders for setting color, beam and position parameters in addition to many other functions, Version 3 software features an enhanced programming interface for easier recording, and supports DMX over Ethernet using the universal Art-Net protocol.

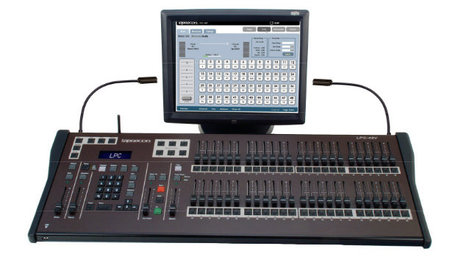

NOTE: Picture shown is for illustrative purposes.  Appearance of actual monitor may vary from that shown.

Leprecon LPC-48V, Version III Features:

  • Preset Mode: 24 faders, 24 submasters, or 48 single scene faders
  • 24 Submasters x 20 pages for 480 total Submasters
  • Two Scene Mode: 24 faders per scene with Manual crossfader
  • Front panel encoders for setting LED and automated fixture parameters
  • Bump modes include: Solo, Add, and Latch w/fade
  • Includes 15” ELO Touchscreen monitor
  • 6 “Quick Looks” button playbacks with fade times
  • Cue Stack with 1000 cues
  • 512 board channels (48 faders, 464 virtual)
  • Two DMX-512 outputs using 5 pin XLR connectors
  • 2048 DMX channels via Art-Net over Ethernet

Software features:

  • Easy to use Graphic User Interface for programming Submasters, Cues, Chases
  • “Preview” in Run mode for inspecting and editing Cues and Submasters
  • Color, Beam and Position labels for automated fixture and LED control
  • Individual fade times for Color, Beam and Position
  • Color Mixer control for RGB/CMY fixtures

Mechanical/I/O Features:

  • VGA Output
  • 2 Ethernet ports (1 port dedicated to Art-Net)
  • 2 - 5 pin XLR DMX out connectors
  • 2 - 4 pin XLR for Littlite® work lamps - included
  • 3 USB connectors
  • Universal AC Power 100-240V with IEC power cord
  • Optional built in wireless DMX transmitter compatible with W-DMX (sold separately-contact your sales professional)
