Cables To Go 54321

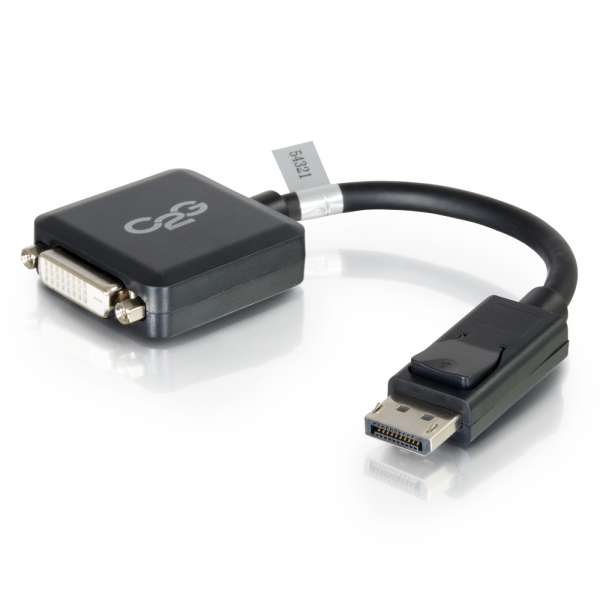

8" Display Port Male to DVI Female Adapter Cable

OUR PART #:  54321

This adapter converter is an ideal solution for adapting the DisplayPort output of a laptop so that it may be connected to a computer monitor which accepts a DVI-D input.
Learn More
Our Price: $17.33
List Price: $19.99
You save 13%!
Write the first review.
Cables To Go 54321
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Related Products

This adapter converter is an ideal solution for adapting the DisplayPort output of a laptop so that it may be connected to a computer monitor which accepts a DVI-D input.  This adapter carries a digital video signal, supports up to a 1920x1200 resolution and meets the requirements of high performance applications.

Cables to Go 54321 Features:

  • Adapts a DisplayPort output to Single-Link DVI-D
  • Carries a digital video signal
  • Supports up to a 1920x1200 resolution

Cables to Go 54321 Specifications:

Electrical Specifications:

  • Voltage Rating: 30v
  • Conductor Resistance: @ 20°C max
  • Insulation Resistance: 10MOhm/km
  • Time Delay: 5.2ns/m (max)
  • Attenuation: 5.02dB@100-450MHz, 7.69dB@1GHz, 12.595dB@2GHz, 17.495dB@3GHz, 22.395dB@4GHz, 27.295dB@5GHz, 32.195dB@6GHz, 37.095dB@7GHz

Physical Specifications:

  • Operating Temperature: 0°C to 50°C
  • Storage Temperature: -25°C to 70°C
  • Approvals: CE
  • Warranty: Lifetime

Conductor (2 Conductor, 5 Pair):

  • Conductor: 30AWG (7/0.1TC)
  • Insulation: FM-PE, ID:0.8±0.05mm
  • Color: White/Brown, White/Red, White/Orange, White/Green,White/Blue
  • Drain: 30AWG (7/0.1TC), HD-PE ID:0.56±0.05
  • Shield: AL-Mylar Wrap, Coverage—100%

Conductor (5 Conductors):

  • Conductor: 30AWG (7/0.1TC)
  • Insulation: HD-PE, ID:0.56±0.05mm
  • Color: Red/Orange/Yellow/Green/White

Overall Cable:

  • Jacket: PVC
  • Shield: AL-Mylar—Coverage 100%, Braid—16/9/0.12
  • Drain: 2:30AWG (7/0.10 BC)
  • OD: 6.5±0.2
