Community VLF208LV-BI
Dual 8" Compact Installation Subwoofer in Black

OUR PART #:  VLF208LV-BI

Our Price: $625.00
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Community VLF208LV-BI
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

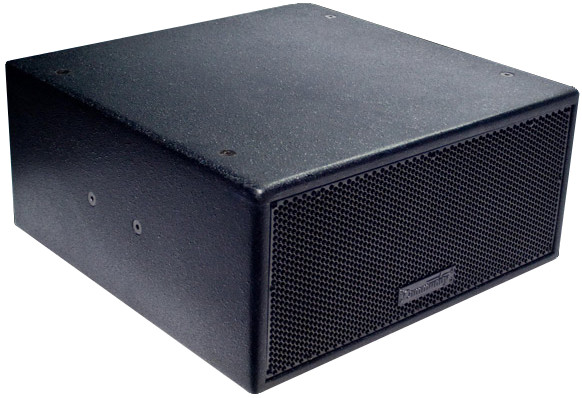

The Community VLF208LV-BI is a dual 8" install subwoofer in a "large volume" enclosure with multiplr M10 hang points that is designed for applications that require the lowest frequencies from a slim profile design. The VLF208LV-BI measures 10.2" H (10" without feet) by 21.75" W and 21.75" D. With a frequency response down to 40 Hz (-3dB) and an operating range to 30 Hz (-10dB), the 1000W program VLF208LV-BI delivers low-end power. Its low-velocity port design extends the response while eliminating air noise through the heavy duty 16-gauge steel perforated grille.

Community VLF208LV-BI Features:

  • Low profile design, small footprint
  • Designed to work as a traditional subwoofer or in steered bass arrays
  • DYNA-TECH™ protection circuitry
  • Suitable for in-wall, under-seating, under-stage and other "hidden" LF applications
  • Five-year warranty
  • Installation version with 12 mounting points

Community VLF208LV-BI Specifications:

  • Loudspeaker Type: Compact, direct-radiating subwoofer
  • Operating Range*:
    • 30 Hz to 1,000 Hz
    • 40 Hz to 200 Hz (±3 dB)
  • Max Input Ratings:
    • 400W continuous, 1000W program, 4 ohms
    • 40 volts RMS, 89 volts momentary peak
  • Recommended Power Amplifier: 630W to 900W @ 4 ohms
  • Sensitivity (1W/1m)*: 93 dB SPL (40 Hz to 200 Hz 1/3 octave bands)
  • Maximum Output: 119 dB SPL / 126 dB SPL (peak)
  • Nominal Impedance: 4 ohms
  • Minimum Impedance:
    • 3.9 ohms @ 160 Hz
    • Nominal –6dB
  • Beamwidth: 360° H x 180° V
  • Axial Q / DI: 1/0, 40 Hz to 200 Hz
  • Recommended Signal Processing: 40 Hz, 24 dB high pass filter
  • Drivers: LF (2) 8"
  • Driver Protection: None
  • Input Connection:
    • (2) NL4-compatible locking connector
    • (1) 2 conductor barrier strip
  • Enclosure: 11-ply cross-laminated birch
  • Finish: Black or white paint finish
  • Mounting/Rigging Provisions: (12) M10 hang points
  • Required Accessories: None
  • Supplied Accessories: (4) Rubber feet
  • Optional Accessories:
    • VLF-SAB steered array bracket
    • M10EYBLTKIT 10mm eyebolt kit
    • STKIT seat track kit
  • Dimensions (HxWxD): 10.2" x 21.75" x 21.75" (260 x 552x 552 mm)
  • Weight: 48 lbs. (21.8 kg)
