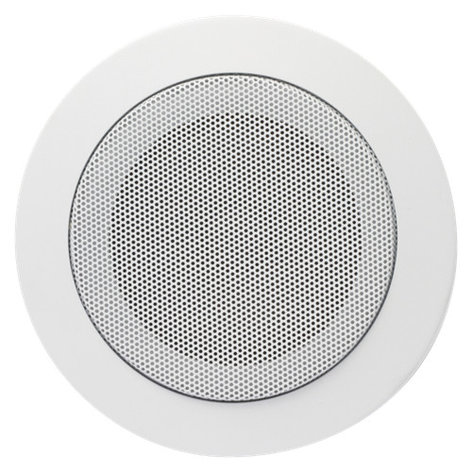

Atlas IED BT720-4 4 inch Loudspeaker with 25/70V 4 Watt Transformer and T720-4 Baffle

The Atlas Sound BT720-4 loudspeaker assembly combines the sound performance of a full range 4" high compliance loudspeaker with the job site convenience and economy of a factory-assembled loudspeaker, transformer and baffle.

This model incorporates the popular Atlas Sound FC104 high performance loudspeaker, recognized for full-range voice and music reproduction. Unit provides wide-angle sound dispersion to achieve desired coverage with fewer loudspeakers in distributed systems.

Each loudspeaker employs a 10 ounce ceramic magnet and a damped, high-compliance cone to provide excellent low-frequency reproduction with smooth extended response. Package includes factory-mounted, dual-voltage 70.7/25V transformer and T720-4 round recessed torsion spring grille.

Atlas Sound BT720-4 Features:

• Attractive white finish
• Easy to order speaker/transformer/grill assembly
• Suited for any commercial paging or BGM application

Atlas Sound BT720-4 Specifications:

• Speaker Type: High Compliance
• Frequency Response: 100 Hz - 10 kHz (+/- 1.5dB)
• Power Taps: .25, .5, 1, 2, & 4 Watts
• Dispersion: 135°/ -6dB, 2kHz
• Sensitivity: 94dB (at 1W / 1M)
• Depth: 2 1/4" (5.715 cm)
• Diameter: 4" (10.16 cm)
• Shipping Weight: 3.33 lbs (1.51 kgs)
