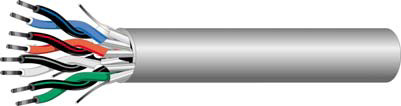

West Penn D25439-500
22 AWG 4 Pair Indoor Plenum Rated Cable, 500 ft

OUR PART #  D25439-500

Our Price: $331.50
List Price: $538.33
You save 38%! (Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

The West Penn D25439-500 is a 22 AWG. 4 pair cable with stranded tinned copper conductors, individually shielded with an overall jacket. This cable is designed for indoor plenum applications such as intercom, security, sound, audio, background music, and power limited control circuits.

West Penn D25439-500 Specifications:

  • Conductor:  22 AWG Tinned Copper
  • Stranding:  7x30
  • Insulation Material:  Teflon
  • Insulation Thickness:  0.010'' Nom.
  • Number of Conductors:  8 (4 Pair)
  • Shield:  Each Pair 100% Aluminum Foil
  • Drain:  Stranded Tinned Copper
  • Jacket Material:  Flex Plenum
  • Jacket Thickness:  0.017'' Nom.
  • Overall Cable Diameter:  0.256'' Nom.
  • Approximate Cable Weight:  47 Lbs/1M' Nom.
  • Flame Rating:  NFPA 262
  • Temperature Rating:  -20°C To +60°C
  • Operating Voltage:  300 V RMS
  • Max.Capacitance Between Conductors @ 1 KHz:  25 pf/ft Nom.
  • Capacitance Between Conductors to Shield @ 1 KHz:  45 pf/ft Nom.
  • DC Resistance per Conductor @ 20deg:  C 17 Ohms/1M' Nom.
  • Insulation Colors:
    • Black/Red-Red
    • Black/White-White
    • Black/Green-Green,
    • Black/Blue-Blue
  • Jacket Color:  Gray
  • RoHS Compliant:  Yes
  • Max. Recommended:  Pull Tension 80 Lbs.
  • Min. Bend Radius (Install):  2.5”

West Penn D25439-500
22 AWG 4 Pair Indoor Plenum Rated Cable, 500 ft

OUR PART #  D25439-500

Product Information:

The West Penn D25439-500 is a 22 AWG. 4 pair cable with stranded tinned copper conductors, individually shielded with an overall jacket. This cable is designed for indoor plenum applications such as intercom, security, sound, audio, background music, and power limited control circuits.

West Penn D25439-500 Specifications:

  • Conductor:  22 AWG Tinned Copper
  • Stranding:  7x30
  • Insulation Material:  Teflon
  • Insulation Thickness:  0.010'' Nom.
  • Number of Conductors:  8 (4 Pair)
  • Shield:  Each Pair 100% Aluminum Foil
  • Drain:  Stranded Tinned Copper
  • Jacket Material:  Flex Plenum
  • Jacket Thickness:  0.017'' Nom.
  • Overall Cable Diameter:  0.256'' Nom.
  • Approximate Cable Weight:  47 Lbs/1M' Nom.
  • Flame Rating:  NFPA 262
  • Temperature Rating:  -20°C To +60°C
  • Operating Voltage:  300 V RMS
  • Max.Capacitance Between Conductors @ 1 KHz:  25 pf/ft Nom.
  • Capacitance Between Conductors to Shield @ 1 KHz:  45 pf/ft Nom.
  • DC Resistance per Conductor @ 20deg:  C 17 Ohms/1M' Nom.
  • Insulation Colors:
    • Black/Red-Red
    • Black/White-White
    • Black/Green-Green,
    • Black/Blue-Blue
  • Jacket Color:  Gray
  • RoHS Compliant:  Yes
  • Max. Recommended:  Pull Tension 80 Lbs.
  • Min. Bend Radius (Install):  2.5”
