TOA WS-5325H E01

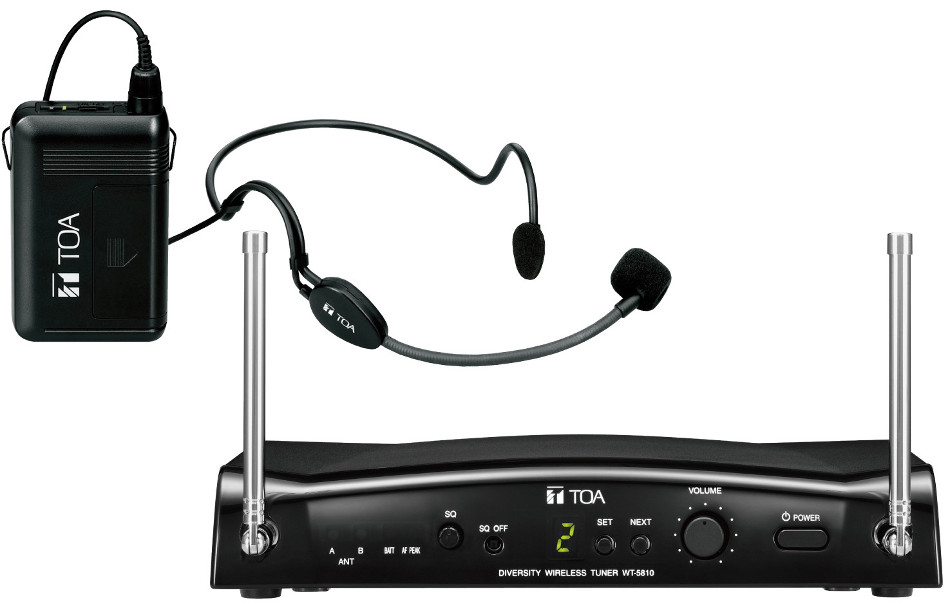

5000 Series 16 Channel UHF Wireless Headset Microphone System

OUR PART #:  WS5325HE01

The TOA WS-5325H E01 is a 16 Channel UHF Wireless Headset Microphone System that operates on the E01 (668-698 MHz) frequency band.
Learn More
TOA WH-4000H Headset Microphone
TOA WT-5318 Receiver Rear View
TOA WT-5810 Receiver Front View

Click a thumbnail to see more images. (5 total)

Our Price: $530.68
List Price: $656.72
You save 19%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping


We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price


TOA WS-5325H E01
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The TOA WS-5325H E01 is a 16 Channel UHF Wireless Headset Microphone System that operates on the E01 (668-698 MHz) frequency band. The WS-5325H E01 is designed for many different applications such as house of worship productions, school productions, corporate events, and live music performances.


  • WT-5810 (E01) Receiver
  • WM-5325 (E01) Rechargeable Bodypack Transmitter
  • WH-4000H Headset Microphone

TOA WS-5325H E01 Features & Specifications:

  • WT-5810 Receiver:
    • Phase Locked Loop (PLL) synthesis operation
    • 16 Selectable Channel Frequencies
    • TOA Space Diversity Technology
    • Double Super-Heterodyne Receiving System
    • Auto Mixing Input Function
    • Squelch Function (carrier, noise, tone)
    • Usable frequencies and vacant channel search function
    • Compact portable design
    • Compander circuitry for minimizing ambient noise
    • Rod Antenna x2
    • Balanced output (XLR connector) and phone jack output
    • Low-battery indicator (Wireless microphone's battery voltage becomes low)
  • WM-5325 Bodypack Transmitter:
    • 64 Selectable Channels
    • Maximum Input Level:  -14 dB to -29 dB
    • Built-in circuitry minimizes ambient noise effects
    • WB-2000 rechargeable batter or single AA battery operation for compact and lightweight body
    • Connector for 3.5mm mini-plugs
    • Built-in Antenna
  • WH-4000H Headset Microphone:
    • Unidirectional Electret Condenser Microphone Element
    • Maximum input level:  120 dB SPL
    • Connector for 3.5mm mini-plug
    • Secure and comfortably fitting headset
    • Weight:  50 g
