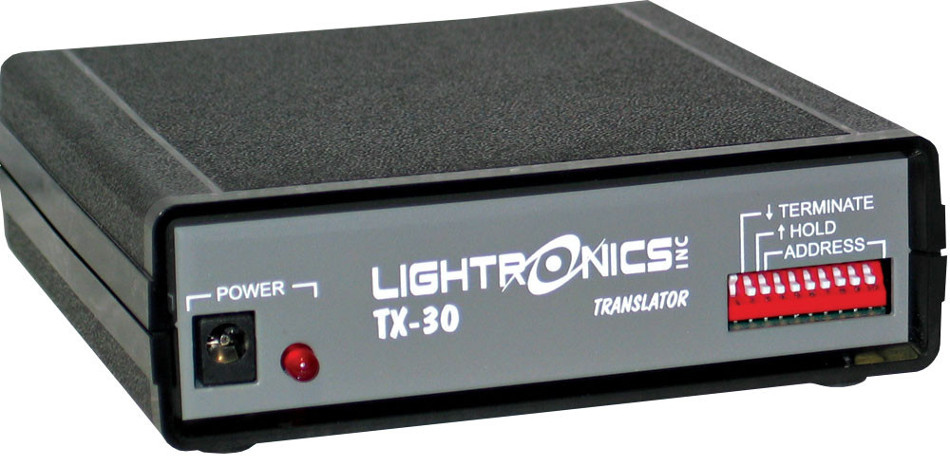

Lightronics Inc. TX-30-TX192
TX-30 with AMX-192 Output Option

OUR PART #:  TX-30-TX192

The Lightronics TX30TX-30-TX192  is a very compact in-line translator which receives USITT DMX-512 signals and transmits the Lightronics (LMX-128) multiplex protocol.
Learn More
Our Price: $388.50
List Price: $518.00
You save 25%!
Write the first review.
Lightronics Inc. TX-30-TX192
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Related Products

The Lightronics TX30TX-30-TX192  is a very compact in-line translator which receives USITT DMX-512 signals and transmits the Lightronics (LMX-128) multiplex protocol. This is the industry standard multiplex protocol.

This unit is supplied to transmit the AMX-192 protocol. This model transmits both LMX and AMX simultaneously. An external power supply is included and is needed with this option. The AMX-192 output signal is transmitted from a 4 pin, male, XLR connector located at the rear of the unit.

CAUTION: Some AMX dimmer equipment uses a 4 pin MINI-DIN connector for the control signal. That connector is NOT wired the same as the 4 pin XLR connector. See the Owner's Manual for information needed to make an adapter cable.

Lightronics TX30TX-30-TX192 Specifications:

  • Input Signal:  DMX-512
  • Input Connection:  5 Pin Male and 5 Pin Female Pass Thru
  • Output Signal:  LMX-128 (192 channels)
  • Output Connection:  3 Pin Male XLR
  • Addressing:  DIP Switch Selectable
  • Power Input:  Phantom - from Dimmer(s)
  • Optional Power Input:  13VAC External Supply
  • Size (WxHxD):  5.125” x 1.75” x 5.25”
  • Weight:  0.9 Pounds
