Bogen CORE8X8 Universal Audio Processor, 8x8 Matrix Controller

OUR PART #: CORE-8X8 MFR #: CORE8X8

Copied to clipboard

Designed for small to medium installations, The CORE is a highly versatile drag-and-drop DSP processor. ...Read more

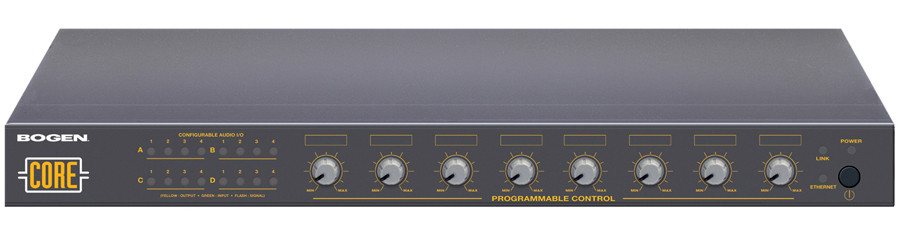

Bogen CORE8X8 Universal Audio Processor, 8x8 Matrix Controller Image 1
Bogen CORE8X8 Universal Audio Processor, 8x8 Matrix Controller
Our Price: $3,188.24
List Price: $5,334.45
You save 40%!

SPECIAL FINANCING AVAILABLE

Synchrony Music & Sound Card
$89/mo* with 36 month financing. ‡
Limited Time. Learn How
Item usually available to ship in 9-12 Business Days. Please call for up-to-date information on product availability.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Product Overview

Designed for small to medium installations, The CORE is a highly versatile drag-and-drop DSP processor. Hardware system configuration is highly flexible in blocks of 2 for 4 in/12 out, 6 in/10 out, etc. configurations. Expandability is also ensured by stacking multiple processors for a very high number of inputs and outputs. Front panel knobs can be programmed to map to any functions within the DSP library and can be scaled to match the requirements of the project. Up to 53 minutes of audio storage is built-in to the box and audio files can be activated via a built-in scheduler, any of 16 resident TTL inputs, or via an end user GUI interface custom built for each application. System design is PC based.

The software system design is PC based. Once connected, The CORE software, allows for design, downloading, reversal of in-box designs, and live monitoring, calibration, and routing via the PC. Third-party control systems such as Crestron, AMX, Vity and others can also control The Core either via RS-232 or IP commands. Up to 12 CORE units can be networked together for expandability. A variety of accessories, including low cost analog controllers (RAC), digital controllers (URC), and various paging and control microphones (PPM, PPM Touch) are available for use with the system.

Bogen Communications CORE 8X8 Features:

  • Configuration via PC/Laptop
  • Programmable, scalable front panel knobs for DSP functions
  • Third-party control via RS-232 or IP commands
  • Full DSP drag-and-drop component library
  • Up to 53 minute built-in message storage
  • 16 built-in TTL inputs and 8 logic outputs
  • Stack up to 12 units
  • CE and UL listed
  • 5 year warranty

Bogen Communications CORE 8X8 Specifications:

  • Frequency Response: 20 Hz to 20 kHz @ +4 dBU (=/-0.6 dB)
  • Dynamic Range: > 105 dB
  • Maximum Gain: 66 dB
  • Crosstalk: Line < -78 dB; MIC < -73 dB
  • Output Impedance: 200 Ohms
  • Input Impedance: 8 kOhms
  • Maximum Output: +24 dBu
  • Maximum Input: +24 dBu
  • Phantom Power: +48V DC
  • Input Gain Range: 0 to 54 dB
  • Sampling Rate: 48 kHz or 96 kHz (selectable)
  • A/D D/A Converters: 24 bit
  • Power Consumption: < 145 watts
  • Dimensions: 17-1/8" W x 1-3/4" H x 11-5/8" D
  • Product Weight: 8 lbs

Note

NOTE: For full specifications for this product, refer to attached Specification Sheet under the Documentation Tab
