Bogen HFCS1B 6" High-Fidelity Ceiling Speaker 75W, Black

OUR PART #: HFCS1B MFR #: HFCS1B

Copied to clipboard

The Bogen HFCS1B ceiling loudspeaker delivers superior sound and clear intelligibility in a variety of ceiling environments. ...Read more

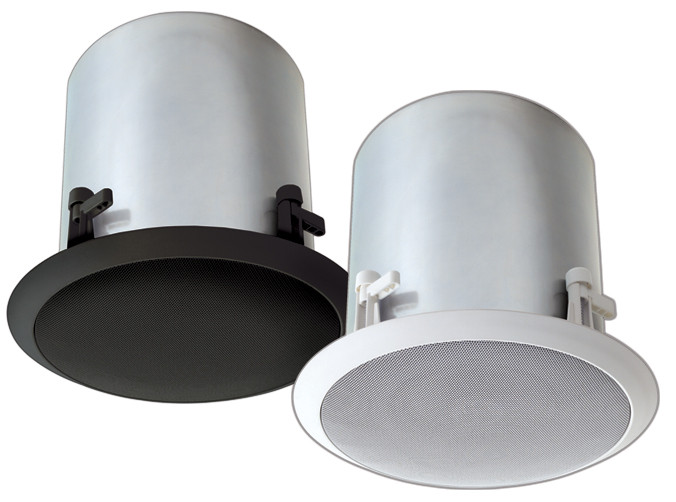

Bogen HFCS1B 6" High-Fidelity Ceiling Speaker 75W, Black Image 1
Bogen HFCS1B 6" High-Fidelity Ceiling Speaker 75W, Black
Our Price: $119.46
List Price: $215.01
You save 44%!

SPECIAL FINANCING AVAILABLE

Synchrony Music & Sound Card
$4/mo* with 36 month financing. ‡
Limited Time. Learn How
Item usually available to ship in 9-12 Business Days. Please call for up-to-date information on product availability.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Accessories

Product Overview

The Bogen HFCS1B ceiling loudspeaker delivers superior sound and clear intelligibility in a variety of ceiling environments.

The system can be easily installed in hard-surfaced ceilings, suspended ceilings, and new constructions.

The Bogen HFCS1B offers several levels of power output controlled via a front-mounted rotary tap selector switch (under grille). The low-distortion speaker design, coupled with a computer-matched venting system, delivers high intelligibility and exceptional low-frequency response for both music and speech reinforcement.

Bogen Communications HFCS1B Features:

  • Wide-dispersion coaxial driver for broad, even coverage
  • Good off-axis response with smooth contouring
  • Computer-matched venting system for full bass output
  • Large back can for deeper bass response
  • High power handling capability for foreground sound
  • Selectable power taps via front-mounted control
  • Power taps (in watts): 32, 16, 8, 4, 2, and 1 for70V; 32, 16, 8, 4, and 2 for 100V
  • 16-ohm input for non-transformer, multi-speaker systems (selectable via tap selector switch)
  • Compounded rubber surround, plus polypropylene and polycarbonate drivers for lasting performance
  • Easy wiring with plug-in connector
  • Integral swing-out clamps for easy installation
  • Connector provides loop-through terminals for the next speaker
  • Attachment point for seismic cable (safety cable)
  • Input terminal cover with knockouts and safety eyelet provides protection for connections
  • Black textured finish easily painted to match theme decor
  • Attractive, contemporary, sturdy steel grille assembly with fine perforations
  • Listed to UL Standard 60065 for US and Canada
  • Independently tested and meets requirements of UL-2043 (report available)
  • Accessory tile bridge support ring (Model TBCR, solds eparately)
  • Accessory 10-foot long cable kit (Model CK10, sold separately)

Bogen Communications HFCS1B Specifications:

  • Frequency Response (-10 dB, Half-Space Response): 65 Hz - 19 kHz
  • LF Driver: 6-1/2" (165mm) Polypropylene Cone
  • HF Driver: 3/4" (20mm) Polycarbonate Dome
  • Sensitivity: (1W/1m) 89 dBspl (Average 100 Hz -10 kHz)
  • Impedance Ratings: Low (16 ohms) / High(70V/100V)
  • Power Input (Max.): 75W @ 16 ohms; 32W @70V/100V
  • Power Settings (in watts, Front panel, switch-selected): 70V - 32, 16, 8, 4, 2, 1; 100V - 32, 16, 8, 4, 2
  • Baffle Material: Fire-rated (94VO) ABS
  • Back Can Material: Heavy-Gauge Steel
  • Terminations: 4 Terminal Plug-in Input Connector
  • Product Weight: 9 lbs.
  • Speaker Dimensions: 12-5/16" diameter x 12" Depth
  • Minimum Vertical Clearance Requirement: 11"
  • Included Accessories: Input Terminal Cover (2 Halves); (4) Screws; (1) Plug-in Input Connector
  • Optional Accessories: Tile Bridge Support Ring (TBCR); Cable Kit (CK10)
  • Baffle Ring & Grille Color: Black

Note

NOTES: Image shown above is for illustrative purposes only; actual product comes in black. For full specifications on this product, refer to attached Specification Sheet under the Documentation Tab.
