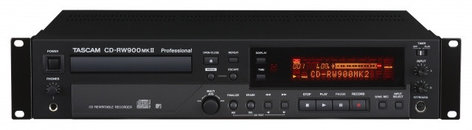

Tascam CD-RW900MKII
CD Recorder/Player

OUR PART #  CDRW900-MKII

Our Price: $349.99
List Price: $449.99
You save 22%! (Low Price Guarantee)
In Stock

The Tascam CD-RW900MKII professional CD recorder features a TEAC tray-loading transport ensures years of reliable operation in the most demanding installations. The new transport also allows gapless recording when writing track markers, something not possible using off-the-shelf PC drives. Various recording features like automatic track creation help the operator create polished recordings without constant supervision. An AKM AK4528VM is used for AD/DA conversion for clean, clear sound quality with a frequency response of 20Hz to 20kHz +/-0.8dB.

Tascam CD-RW900MKII Features:

  • Adopts AK4528VM audio codec made by Asahi Kasei Micro devices which has 24-bits processing
  • Independent input level controls provides serious level control
  • Supported media: CD-R, CD-R-DA, CD-RW, CD-RW-DA
  • High speed CD-RW Supports
  • CD drive supports playback of CD-DA and Data-CD
  • High reliability proprietary TEAC tray drive
  • OPC (optimum power control) function: Adjusting the laser power for each disc type
  • Fade-in/Fade-out recording function (1 to 30 seconds, 1 seconds increments)
  • Sync recording function: Automatically start/stop recording at a preset level (-24dB to -72dB, 6dB increments)
  • Digital volume for adjusting recording level seriously (-8?-54.0dB to 18.0dB)
  • Automatic track division: Automatically insert a track division at a preset condition
  • Manual track division: Insert a track division by manual operation
  • Time track division: Automatically insert a track division per preset interval (1 to 10 minutes, 1 minutes increments)
  • Rec-mute function: Recording four seconds of silence on the disc
  • Selectable maximum recording track numbers (automatically stop at preset number)
  • Erase function: Erase selected track or disc (for CD-RW)
  • Four playback modes (continuous, single, program, random)
  • Repeat playback function (continuous, single, program, random, A-B)
  • Fade-in/Fade-out playback function (OFF, 1 to 30 seconds, 1 seconds increments)
  • Auto-cue function: Automatically pause by detection of a sound of start point in a track
  • Auto-ready function: Automatically pause at head of next track after playback previous track
  • Pitch control playback function: Pitch and speed can be varied (+/-16%, 0.1 to 1.0% increments, for CD-DA)
  • Key control playback function: (b1 to b6, #1 to #6 ,half-note increments, for CD-DA)
  • When using key control function with pitch control function, these function provides speed changing without changing pitch
  • Timer playback function (external timer sold separately): Automatically begin playback when turned on
  • Unfinalize function (for CD-RW): Erase TOC information of finalized CD-RW
  • Time display switching (elapsed track/disc time, remaining track/disc time)
  • CD-text editing supports
  • PS/2 keyboard (sold separately) connection for remote control or entering a title
  • SRC (sampling rate converter): Automatically convert the incoming frequency to 44.1kHz (for 32 to 48kHz)
  • RCA analog unbalanced inputs/outputs
  • COAXIAL digital input/output (IEC60958-3:S/P DIF)
  • OPTICAL digital input/output (IEC60958-3:S/P DIF)
  • Wireless remote controller with 10-key included
  • Headphone output (20mW/ch)
  • 3-polar AC sockets with the detachable AC cable
  • 2U EIA rackmountable
  • RoHS certified
  • Dedicated Features for CD-RW901MKII:
    • Sync trim function (+/-125 frame, +/-1.67 seconds)
    • Automatic track division with trim function (+/-125 frame, +/-1.67 seconds)
    • Selectable COPY ID(free/1 generation/prohibit/SCMS)
    • Call function: Return to a point at which playback last started from ready mode
    • EOM (end of message) function: EOM indicator will light-up before the end of track or disc (1 to 99 seconds)
    • ISRC/RID code display function
    • Time skip function: While in playback or ready, moves the playback point to forwards or backwards (1 seconds increments)
    • Index search function: Search indexes within a track that were assigned during recording
    • Fader start/stop control via parallel control connector
    • D-sub 9pin RS-232C serial control connector
    • D-sub 15pin parallel control connector
    • XLR analog balanced inputs/outputs
    • XLR digital input/output (IEC60958-4:AES/EBU)
    • Wired remote controller included
  • Differences from CD-RW900SL/CD-RW901SL:
    • Time track division added to CD-RW900MKII
    • Industrial design
    • Tray loading type CD drive

Tascam CD-RW900MKII Specifications:

  • Supported disc types: CD-R, CD-R-DA, CD-RW,CD-RW-DA (High Speed CD-RW is supported)
  • Playback disc formats: CD-DA, CD-ROM ISO9660LEVEL 1/2 Joilet format, multi-session discs and CD-text
  • Playback file formats:
    • CD-DA:  44.1kHz, 16bit, stereo
    • MP3:  44.1kHz, 64 to 320kbps, VBR
  • Recording file formats: CD-DA  44.1kHz, 16-bit, stereo
  • ANALOG IN:
    • Unbalanced:
      • Connector:  RCA pin jack
      • Input impedance:  22kOhm +/-10% (unbalanced)
      • Reference input level:  -10dBV (Full scale -16dB)
      • Minimum input level:  -19dBV (adjustable level at Full Scale -16dB)
  • ANALOG OUT:
    • Unbalanced:
      • Connector:  RCA pin jack
      • Output impedance:  200 Ohms
      • Reference output level:  -10dBV +/-2dB (Full scale -16dB)
      • Maximum output level:  +6dBV +/-2dB
  • DIGITAL IN:
    • COAXIAL:
      • Connector:  RCA pin jack
      • Format:  IEC60958-3(S/P DIF)
    • OPTICAL:
      • Connector:  TOS LINK
      • Format:  IEC60958-3(S/P DIF)
  • DIGITAL OUT:
    • COAXIAL:
      • Connector:  RCA pin jack
      • Format:  IEC60958-3(S/P DIF)
    • OPTICAL:
      • Connector:  TOS LINK
      • Format:  IEC60958-3(S/P DIF)
  • PHONES:
    • Connector:  6.3mm(1/4") stereo phone jack
    • Output power:  20mW + 20mW or more (32 Ohms loaded)
  • KEYBOARD:
    • Connector:  Mini DIN 6-pin
  • Power: 120VAC, 60Hz
  • Power consumption: 16W
  • Dimensions: 19" W x 3.7" H x 12.2" D (482.6 x 94 x309 mm)
  • Weight: 9.5 lbs (4.3 kg)

Audio performance

  • Frequency response:
    • playback:  20Hz to 20kHz, +/-0.8dB
    • recording:  20Hz to 20kHz, +/-1.0dB
  • S/N ratio:
    • playback:  95dB
    • recording:  90dB
  • Dynamic range:
    • playback:  95dB
    • recording:  90dB
  • Distortion:
    • playback:  0.006%
    • recording:  0.008%
  • Channel separation:
    • playback:  90dB(1kHz)
    • recording:  80dB(1kHz)
  • Wow and flutter:  Immeasurable (0.001% or less)

Tascam CD-RW900MKII
CD Recorder/Player

OUR PART #  CDRW900-MKII

Product Information:

The Tascam CD-RW900MKII professional CD recorder features a TEAC tray-loading transport ensures years of reliable operation in the most demanding installations. The new transport also allows gapless recording when writing track markers, something not possible using off-the-shelf PC drives. Various recording features like automatic track creation help the operator create polished recordings without constant supervision. An AKM AK4528VM is used for AD/DA conversion for clean, clear sound quality with a frequency response of 20Hz to 20kHz +/-0.8dB.

Tascam CD-RW900MKII Features:

  • Adopts AK4528VM audio codec made by Asahi Kasei Micro devices which has 24-bits processing
  • Independent input level controls provides serious level control
  • Supported media: CD-R, CD-R-DA, CD-RW, CD-RW-DA
  • High speed CD-RW Supports
  • CD drive supports playback of CD-DA and Data-CD
  • High reliability proprietary TEAC tray drive
  • OPC (optimum power control) function: Adjusting the laser power for each disc type
  • Fade-in/Fade-out recording function (1 to 30 seconds, 1 seconds increments)
  • Sync recording function: Automatically start/stop recording at a preset level (-24dB to -72dB, 6dB increments)
  • Digital volume for adjusting recording level seriously (-8?-54.0dB to 18.0dB)
  • Automatic track division: Automatically insert a track division at a preset condition
  • Manual track division: Insert a track division by manual operation
  • Time track division: Automatically insert a track division per preset interval (1 to 10 minutes, 1 minutes increments)
  • Rec-mute function: Recording four seconds of silence on the disc
  • Selectable maximum recording track numbers (automatically stop at preset number)
  • Erase function: Erase selected track or disc (for CD-RW)
  • Four playback modes (continuous, single, program, random)
  • Repeat playback function (continuous, single, program, random, A-B)
  • Fade-in/Fade-out playback function (OFF, 1 to 30 seconds, 1 seconds increments)
  • Auto-cue function: Automatically pause by detection of a sound of start point in a track
  • Auto-ready function: Automatically pause at head of next track after playback previous track
  • Pitch control playback function: Pitch and speed can be varied (+/-16%, 0.1 to 1.0% increments, for CD-DA)
  • Key control playback function: (b1 to b6, #1 to #6 ,half-note increments, for CD-DA)
  • When using key control function with pitch control function, these function provides speed changing without changing pitch
  • Timer playback function (external timer sold separately): Automatically begin playback when turned on
  • Unfinalize function (for CD-RW): Erase TOC information of finalized CD-RW
  • Time display switching (elapsed track/disc time, remaining track/disc time)
  • CD-text editing supports
  • PS/2 keyboard (sold separately) connection for remote control or entering a title
  • SRC (sampling rate converter): Automatically convert the incoming frequency to 44.1kHz (for 32 to 48kHz)
  • RCA analog unbalanced inputs/outputs
  • COAXIAL digital input/output (IEC60958-3:S/P DIF)
  • OPTICAL digital input/output (IEC60958-3:S/P DIF)
  • Wireless remote controller with 10-key included
  • Headphone output (20mW/ch)
  • 3-polar AC sockets with the detachable AC cable
  • 2U EIA rackmountable
  • RoHS certified
  • Dedicated Features for CD-RW901MKII:
    • Sync trim function (+/-125 frame, +/-1.67 seconds)
    • Automatic track division with trim function (+/-125 frame, +/-1.67 seconds)
    • Selectable COPY ID(free/1 generation/prohibit/SCMS)
    • Call function: Return to a point at which playback last started from ready mode
    • EOM (end of message) function: EOM indicator will light-up before the end of track or disc (1 to 99 seconds)
    • ISRC/RID code display function
    • Time skip function: While in playback or ready, moves the playback point to forwards or backwards (1 seconds increments)
    • Index search function: Search indexes within a track that were assigned during recording
    • Fader start/stop control via parallel control connector
    • D-sub 9pin RS-232C serial control connector
    • D-sub 15pin parallel control connector
    • XLR analog balanced inputs/outputs
    • XLR digital input/output (IEC60958-4:AES/EBU)
    • Wired remote controller included
  • Differences from CD-RW900SL/CD-RW901SL:
    • Time track division added to CD-RW900MKII
    • Industrial design
    • Tray loading type CD drive

Tascam CD-RW900MKII Specifications:

  • Supported disc types: CD-R, CD-R-DA, CD-RW,CD-RW-DA (High Speed CD-RW is supported)
  • Playback disc formats: CD-DA, CD-ROM ISO9660LEVEL 1/2 Joilet format, multi-session discs and CD-text
  • Playback file formats:
    • CD-DA:  44.1kHz, 16bit, stereo
    • MP3:  44.1kHz, 64 to 320kbps, VBR
  • Recording file formats: CD-DA  44.1kHz, 16-bit, stereo
  • ANALOG IN:
    • Unbalanced:
      • Connector:  RCA pin jack
      • Input impedance:  22kOhm +/-10% (unbalanced)
      • Reference input level:  -10dBV (Full scale -16dB)
      • Minimum input level:  -19dBV (adjustable level at Full Scale -16dB)
  • ANALOG OUT:
    • Unbalanced:
      • Connector:  RCA pin jack
      • Output impedance:  200 Ohms
      • Reference output level:  -10dBV +/-2dB (Full scale -16dB)
      • Maximum output level:  +6dBV +/-2dB
  • DIGITAL IN:
    • COAXIAL:
      • Connector:  RCA pin jack
      • Format:  IEC60958-3(S/P DIF)
    • OPTICAL:
      • Connector:  TOS LINK
      • Format:  IEC60958-3(S/P DIF)
  • DIGITAL OUT:
    • COAXIAL:
      • Connector:  RCA pin jack
      • Format:  IEC60958-3(S/P DIF)
    • OPTICAL:
      • Connector:  TOS LINK
      • Format:  IEC60958-3(S/P DIF)
  • PHONES:
    • Connector:  6.3mm(1/4") stereo phone jack
    • Output power:  20mW + 20mW or more (32 Ohms loaded)
  • KEYBOARD:
    • Connector:  Mini DIN 6-pin
  • Power: 120VAC, 60Hz
  • Power consumption: 16W
  • Dimensions: 19" W x 3.7" H x 12.2" D (482.6 x 94 x309 mm)
  • Weight: 9.5 lbs (4.3 kg)

Audio performance

  • Frequency response:
    • playback:  20Hz to 20kHz, +/-0.8dB
    • recording:  20Hz to 20kHz, +/-1.0dB
  • S/N ratio:
    • playback:  95dB
    • recording:  90dB
  • Dynamic range:
    • playback:  95dB
    • recording:  90dB
  • Distortion:
    • playback:  0.006%
    • recording:  0.008%
  • Channel separation:
    • playback:  90dB(1kHz)
    • recording:  80dB(1kHz)
  • Wow and flutter:  Immeasurable (0.001% or less)
