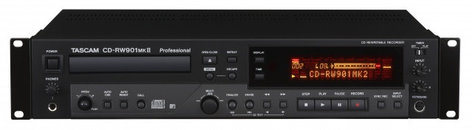

Tascam CD-RW901MKII
CD Recorder/Player

OUR PART #  CDRW901-MKII

Our Price: $449.99
List Price: $579.99
You save 22%! (Low Price Guarantee)
In Stock

The CD-RW900MKII and CD-RW901MKII are professional CD recorders that replace the best-selling CD-RW900SL and CD-RW901SL. A new TEAC tray-loading transport ensures years of reliable operation in the most demanding installations. The new transport also allows gapless recording when writing track markers, something not possible using off-the-shelf PC drives. Various recording features like automatic track creation help the operator create polished recordings without constant supervision. An AKM AK4528VM is used for AD/DA conversion for clean, clear sound quality with a frequency response of 20Hz to 20kHz +/-0.8dB.

With the CD-RW901MKII, balanced analog input/output jacks and external control terminals are included. Additionally, long-run continuous recording (and overlap recording) is possible by connecting multiple CD-RW901MKIIs with an accessory cable. An ISRC/RID code can be displayed to check the recording in a mastering studio.Whether used for PA/Sound Reinforcement playback, studio, mastering, or broadcast, the CD-RW900MKII and 901MKII are TASCAM's latest generation of reliable CD recording and playback.

Tascam CD-RW901MKII Features:

  • Adopts AK4528VM audio codec made by Asahi KaseiMicrodevices which has 24-bits processing
  • Independent input level controls provides seriouslevel control
  • Supported media: CD-R, CD-R-DA, CD-RW, CD-RW-DA
  • High speed CD-RW Supports
  • CD drive supports playback of CD-DA and Data-CD
  • High reliability proprietary TEAC tray drive
  • OPC (optimum power control) function: Adjusting thelaser power for each disc type
  • Fade-in/Fade-out recording function (1 to 30 seconds,1 seconds increments)
  • Sync recording function: Automatically start/stoprecording at a preset level (-24dB to -72dB, 6dB increments)
  • Digital volume for adjusting recording levelseriously (-8?-54.0dB to 18.0dB)
  • Automatic track division: Automatically insert atrack division at a preset condition
  • Manual track division: Insert a track division bymanual operation
  • Time track division: Automatically insert a trackdivision per preset interval (1 to 10 minutes, 1 minutes increments)
  • Rec-mute function: Recording four seconds of silenceon the disc
  • Selectable maximum recording track numbers(automatically stop at preset number)
  • Erase function: Erase selected track or disc (forCD-RW)
  • Four playback modes (continuous, single, program,random)
  • Repeat playback function (continuous, single,program, random, A-B)
  • Fade-in/Fade-out playback function (OFF, 1 to 30seconds, 1 seconds increments)
  • Auto-cue function: Automatically pause by detectionof a sound of start point in a track
  • Auto-ready function: Automatically pause at head ofnext track after playback previous track
  • Pitch control playback function: Pitch and speed canbe varied (+/-16%, 0.1 to 1.0% increments, for CD-DA)
  • Key control playback function: (b1 to b6, #1 to #6,half-note increments, for CD-DA)
  • When using key control function with pitch controlfunction, these function provides speed changing without changing pitch
  • Timer playback function (external timer soldseparately): Automatically begin playback when turned on
  • Unfinalize function (for CD-RW): Erase TOCinformation of finalized CD-RW
  • Time display switching (elapsed track/disc time,remaining track/disc time)
  • CD-text editing supports
  • PS/2 keyboard (sold separately) connection for remotecontrol or entering a title
  • SRC (sampling rate converter): Automatically convertthe incoming frequency to 44.1kHz (for 32 to 48kHz)
  • RCA analog unbalanced inputs/outputs
  • COAXIAL digital input/output (IEC60958-3:S/P DIF)
  • OPTICAL digital input/output (IEC60958-3:S/P DIF)
  • Wireless remote controller with 10-key included (forCD-RW900MKII)
  • Headphone output (20mW/ch)
  • 3-polar AC sockets with the detachable AC cable
  • 2U EIA rackmountable
  • RoHS certified
  • Dedicated Features for CD-RW901MKII:
    • Sync trim function (+/-125 frame, +/-1.67 seconds)
    • Automatic track division with trim function (+/-125 frame, +/-1.67 seconds)
    • Selectable COPY ID(free/1 generation/prohibit/SCMS)
    • Call function: Return to a point at which playback last started from ready mode
    • EOM (end of message) function: EOM indicator will light-up before the end of track or disc (1 to 99 seconds)
    • ISRC/RID code display function
    • Time skip function: While in playback or ready, moves the playback point to forwards or backwards (1 seconds increments)
    • Index search function: Search indexes within a track that were assigned during recording
    • Overlap recording function: Using two-units CD-RW901MKII to make continuous recording
    • Fader start/stop control via parallel control connector
    • D-sub 9pin RS-232C serial control connector
    • D-sub 15pin parallel control connector
    • XLR analog balanced inputs/outputs
    • XLR digital input/output (IEC60958-4:AES/EBU)
    • Wired remote controller included
  • Differences from CD-RW900SL/CD-RW901SL:
    • Time track division added to CD-RW900MKII
    • Industrial design
    • Tray loading type CD drive

Tascam CD-RW901MKII Specifications:

  • Supported disc types: CD-R, CD-R-DA, CD-RW,CD-RW-DA(High Speed CD-RW is supported)
  • Playback disc formats: CD-DA, CD-ROM ISO9660LEVEL 1/2 Joilet format, multisession discs and CD-text
  • Playback file formats:
    • CD-DA:  44.1kHz, 16bit, stereo
    • MP3:  44.1kHz, 64 to 320kbps, VBR
  • Recording file formats: CD-DA  44.1kHz, 16bit,stereo
  • ANALOG IN:
    • Unbalanced:
      • Connector:  RCA pin jack
      • Input impedance:  22kO +/-10% (unbalanced)
      • Reference input level:  -10dBV (Full scale -16dB)
      • Minimum input level:  -19dBV (adjustable level at Full Scale -16dB)
    • Balanced:
      • Connector:  XLR-3-31(1:GND, 2:HOT, 3:COLD)
      • Input impedance:  14kO +/-5% (balanced)
      • Reference input level: -4dBu (Full scale -16dB)
      • Minimum input level: -5dBu (adjustable level at Full Scale -16dB)
  • ANALOG OUT:
    • Unbalanced:
      • Connector:  RCA pin jack
      • Output impedance:  200O
      • Reference output level:  -10dBV +/-2dB (Full scale -16dB)
      • Maximum output level:  +6dBV +/-2dB
    • Balanced:
      • Connector:  -  XLR-3-32(1:GND, 2:HOT, 3:COLD)
      • Output impedance:  75O +/-5% (balanced)
      • Reference output level:  +4dBu (Full scale -16dB)
      • Maximum output level:  +20dBu
  • DIGITAL IN:
    • COAXIAL:
      • Connector:  RCA pin jack
      • Format:  IEC60958-3(S/P DIF)
    • OPTICAL:
      • Connector:  TOS LINK
      • Format:  IEC60958-3(S/P DIF)
    • AES/EBU:
      • Connector: XLR-3-31
      • Format: IEC60958-4(AES/EBU)
  • DIGITAL OUT:
    • COAXIAL:
      • Connector:  RCA pin jack
      • Format:  IEC60958-3(S/P DIF)
    • OPTICAL:
      • Connector:  TOS LINK
      • Format:  IEC60958-3(S/P DIF)
    • AES/EBU:
      • Connector:  XLR-3-32
      • Format:  IEC60958-4(AES/EBU)
  • PHONES:
    • Connector:  6.3mm(1/4") stereo phone jack
    • Output power:  20mW + 20mW or more(32O loaded)
  • KEYBOARD:
    • Connector:  Mini DIN 6pin
  • CONTROL I/O:
    • RS-232C:
      • Connector: D-sub 9pin
    • PARALLEL:
      • Connector: D-sub 15pin
    • REMOTE:
      • Connector: For RC-RW901
  • Power:
    • North America: 120VAC, 60Hz
    • Europe: 230VAC, 50Hz
    • Australia: 240VAC, 50Hz
  • Power consumption:
    • North America:16W
    • Europe, Australia: 18W  North America:17W
    • Europe, Australia: 19W
  • Dimensions:
    • 482.6(W)×94(H)×309(D)mm
    • 19.0(W)×3.7(H)×12.2(D)inch
  • Weight:
    • 4.5kg/9.9lb

Audio performance

  • Frequency response:
    • playback:  20Hz to 20kHz, +/-0.8dB
    • recording:  20Hz to 20kHz, +/-1.0dB
  • S/N ratio:
    • playback:  95dB
    • recording:  90dB
  • Dynamic range:
    • playback:  95dB
    • recording:  90dB
  • Distortion:
    • playback:  0.006%
    • recording:  0.008%
  • Channel separation:
    • playback:  90dB(1kHz)
    • recording:  80dB(1kHz)
  • Wow and flutter:  Immeasurable (0.001% or less)
