OWC OWCSSD7E6G240

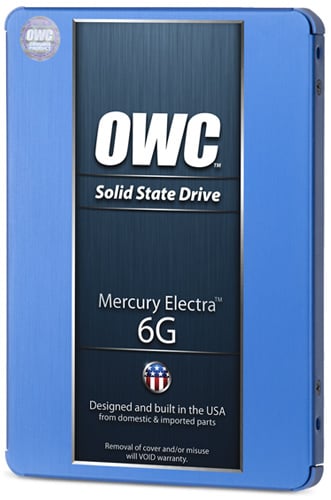

240GB Mercury Electra 2.5" Serial-ATA 7mm 6G Solid State Drive

OUR PART #  OWCSSD7E6G240

Our Price: $109.75
List Price: $129.99
You save 16%! (Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

The OWC 240GB Mercury Electra™ 6G SSD 2.5" Serial-ATA 7mm Solid State Drive is designed for high-speed personal computing, home office, gaming, and personal photography and comes with a 3-year OWC SSD Limited Warranty.

When only the fastest and most reliable Solid State Drive on the market today will suffice for your data storage and backup, look no further than the OWC 240GB Mercury Electra 6G SSD.

The Mercury SSD line features industry leading SandForce® DuraClass™ Technologies:

  • DuraWrite™ extends the endurance of your Solid State Drive (SSD).
  • Intelligent Block Management & Wear Leveling automatically distributes data evenly across the entire SSD.
  • Intelligent Read Disturb Management spreads the active read/write across the flash components eliminating data corruption caused by constant use.
  • Intelligent "Recycling" for advanced free space management gradually re-writes data across the SSD over time to ensure data never gets corrupted.
  • RAISE™ (Redundant Array of Independent Silicon Elements) protects the data on your drive similar to having a RAID setup.
  • Best-in-Class ECC Protection for longest data retention and drivelife.

This internal 2.5" SATA SSD uses the latest SandForce 2281 Processor and DuraClass™ technology to deliver the highest transfer speed, endurance, and performance available today.

With sustained reads up to 556MB/s and writes up to 523MB/s, up to 100x greater data protection than enterprise class Hard Disk Drives, and RAISE technology for RAID like data protection and reliability, the OWC 480GB Mercury Electra 6G SSD line delivers unbeatable performance that's designed and built in the U.S. from domestic and imported parts and backed by a 3 Year OWC SSD Limited Warranty.

High Performance Internal Storage

Replace your conventional hard drive with a reliable solid state drive. Unlike traditional hard disk drives, OWC SSDs have no moving parts, resulting in a quiet, cool, highly rugged storage solution that also offers near instantaneous system response.

Includes 7 mm to 9.5 mm Adapter / Spacer

Attach this adapter to the top of any 7mm, 2.5-inch drive for installations that require a 9.5mm drive height for proper use, whether you need a 9.5mm drive height for a dock, camera, server, device, PC, or external drive. This adapter is not needed for 2.5" drive installations that use the standard side or bottom mounting positions to secure the drive in place, and is not needed for any installation of a 7mm drive in Apple Macintosh computers.

OWC Mercury Electra 6G Specifications:

  • Controller: SandForce 2281 Series Processor with 7% Over Provisioning
  • NAND: Tier 1 Asynchronous MLC NAND Flash
  • Form Factor: Standard 7mm 2.5"
  • Interface: SATA 6Gb/s, 3Gb/s & 1.5Gb/s supported, SATA 3.0 Compliant
  • Capacity:
    • 240GB useable capacity
    • Total Flash Memory Components – 256GB
    • 16GB allocated to real-time data redundancy & error correction
  • Formatted Capacity: 223GiB
  • RAID Support: Qualified for single drive and multiple drive production workstation RAID 0/1/10/0+1 and SPAN usage.
  • SMART Attributes: Standard*
    *Temperature reporting is currently an unsupported feature because due to the operating characteristics of SSDs, it is highly unlikely one would ever exceed an OWC Mercury SSD's stated operating temperature ceiling of 158 F/70 C. However, OWC is looking into supporting this feature in the future via a firmware update.
  • Native Command Queuing: up to 32 commands
  • RoHS Compliant: Yes
  • Format: Unformatted
  • Dimensions: 0.276" H x 2.758" W x 3.941" (7mm x 70.06 mm x 100.12 mm)
  • Weight: 0.170 lbs +/- 2.71 oz (77 grams +/- 2 grams)
  • Data Reliability: ECC Recovery: Up to 55 bytes correctable per 512-byte sector
  • Security: Chip Based Data Encryption: 128-bit AES-compliant
  • TRIM Support: OS Dependent
  • Nonrecoverable Read Errors: Less than 1 sector per 10 ^16 bits read
  • Warranty: 3 Year OWC SSD Limited Warranty (Standard return policy applies.)
  • Sustained Performance:
    • Reads 6Gb/s (up to): 556MB/s
    • Writes 6Gb/s (up to): 523MB/s
    • Reads 3Gb/s (up to): 284MB/s
    • Writes 3Gb/s (up to): 268MB/s
  • Read Incompressible Data Rate (up to): 208MB/s
  • Write Incompressible Data Rate (up to): 235MB/s
  • Random 4K Read4: Up to 60,000 IOPS
  • Random 4K Write4: Up to 60,000 IOPS
  • Read Latency: less than 0.1ms
  • Write Latency: less than 0.1ms
  • Operating Temperature: 32°F to 158°F (0°C to 70°C)
  • Non-Operating Temperature: -67°F to 302°F (-55°C to 150°C)
  • Acoustics:
    • Idle (Typical): 0.0 bels
    • Seek (Typical): 0.0 bels

OWC OWCSSD7E6G240
240GB Mercury Electra 2.5" Serial-ATA 7mm 6G Solid State Drive

OUR PART #  OWCSSD7E6G240

Product Information:

The OWC 240GB Mercury Electra™ 6G SSD 2.5" Serial-ATA 7mm Solid State Drive is designed for high-speed personal computing, home office, gaming, and personal photography and comes with a 3-year OWC SSD Limited Warranty.

When only the fastest and most reliable Solid State Drive on the market today will suffice for your data storage and backup, look no further than the OWC 240GB Mercury Electra 6G SSD.

The Mercury SSD line features industry leading SandForce® DuraClass™ Technologies:

  • DuraWrite™ extends the endurance of your Solid State Drive (SSD).
  • Intelligent Block Management & Wear Leveling automatically distributes data evenly across the entire SSD.
  • Intelligent Read Disturb Management spreads the active read/write across the flash components eliminating data corruption caused by constant use.
  • Intelligent "Recycling" for advanced free space management gradually re-writes data across the SSD over time to ensure data never gets corrupted.
  • RAISE™ (Redundant Array of Independent Silicon Elements) protects the data on your drive similar to having a RAID setup.
  • Best-in-Class ECC Protection for longest data retention and drivelife.

This internal 2.5" SATA SSD uses the latest SandForce 2281 Processor and DuraClass™ technology to deliver the highest transfer speed, endurance, and performance available today.

With sustained reads up to 556MB/s and writes up to 523MB/s, up to 100x greater data protection than enterprise class Hard Disk Drives, and RAISE technology for RAID like data protection and reliability, the OWC 480GB Mercury Electra 6G SSD line delivers unbeatable performance that's designed and built in the U.S. from domestic and imported parts and backed by a 3 Year OWC SSD Limited Warranty.

High Performance Internal Storage

Replace your conventional hard drive with a reliable solid state drive. Unlike traditional hard disk drives, OWC SSDs have no moving parts, resulting in a quiet, cool, highly rugged storage solution that also offers near instantaneous system response.

Includes 7 mm to 9.5 mm Adapter / Spacer

Attach this adapter to the top of any 7mm, 2.5-inch drive for installations that require a 9.5mm drive height for proper use, whether you need a 9.5mm drive height for a dock, camera, server, device, PC, or external drive. This adapter is not needed for 2.5" drive installations that use the standard side or bottom mounting positions to secure the drive in place, and is not needed for any installation of a 7mm drive in Apple Macintosh computers.

OWC Mercury Electra 6G Specifications:

  • Controller: SandForce 2281 Series Processor with 7% Over Provisioning
  • NAND: Tier 1 Asynchronous MLC NAND Flash
  • Form Factor: Standard 7mm 2.5"
  • Interface: SATA 6Gb/s, 3Gb/s & 1.5Gb/s supported, SATA 3.0 Compliant
  • Capacity:
    • 240GB useable capacity
    • Total Flash Memory Components – 256GB
    • 16GB allocated to real-time data redundancy & error correction
  • Formatted Capacity: 223GiB
  • RAID Support: Qualified for single drive and multiple drive production workstation RAID 0/1/10/0+1 and SPAN usage.
  • SMART Attributes: Standard*
    *Temperature reporting is currently an unsupported feature because due to the operating characteristics of SSDs, it is highly unlikely one would ever exceed an OWC Mercury SSD's stated operating temperature ceiling of 158 F/70 C. However, OWC is looking into supporting this feature in the future via a firmware update.
  • Native Command Queuing: up to 32 commands
  • RoHS Compliant: Yes
  • Format: Unformatted
  • Dimensions: 0.276" H x 2.758" W x 3.941" (7mm x 70.06 mm x 100.12 mm)
  • Weight: 0.170 lbs +/- 2.71 oz (77 grams +/- 2 grams)
  • Data Reliability: ECC Recovery: Up to 55 bytes correctable per 512-byte sector
  • Security: Chip Based Data Encryption: 128-bit AES-compliant
  • TRIM Support: OS Dependent
  • Nonrecoverable Read Errors: Less than 1 sector per 10 ^16 bits read
  • Warranty: 3 Year OWC SSD Limited Warranty (Standard return policy applies.)
  • Sustained Performance:
    • Reads 6Gb/s (up to): 556MB/s
    • Writes 6Gb/s (up to): 523MB/s
    • Reads 3Gb/s (up to): 284MB/s
    • Writes 3Gb/s (up to): 268MB/s
  • Read Incompressible Data Rate (up to): 208MB/s
  • Write Incompressible Data Rate (up to): 235MB/s
  • Random 4K Read4: Up to 60,000 IOPS
  • Random 4K Write4: Up to 60,000 IOPS
  • Read Latency: less than 0.1ms
  • Write Latency: less than 0.1ms
  • Operating Temperature: 32°F to 158°F (0°C to 70°C)
  • Non-Operating Temperature: -67°F to 302°F (-55°C to 150°C)
  • Acoustics:
    • Idle (Typical): 0.0 bels
    • Seek (Typical): 0.0 bels
