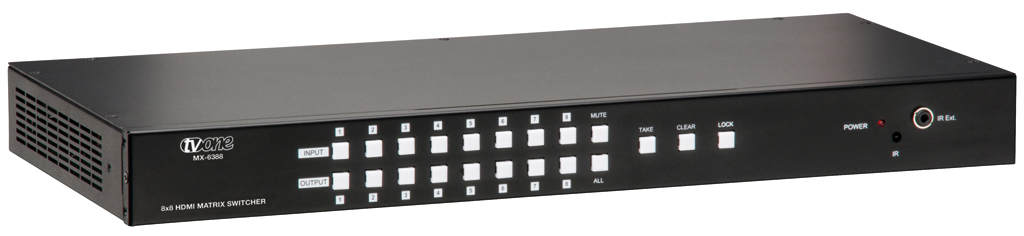

TV One MX-6388
8 x 8 HDMI Matrix Switcher

OUR PART #  MX-6388

Our Price: $3,200.00
Usually ships in 7-14 business days.
Need it sooner? Call us!

The tvONE MX-6388 8x8 HDMI Matrix Switcher is designed to allow distribution of eight HDMI (w/HDCP) sources to eight devices independently or all at the same time. All video paths are buffered to prevent cross talk and 480i through 1080p HDTV signals, plus VGA (640 x 480) through WUXGA (1900 x 1200) signals are accepted as valid inputs and outputs. 3D signals are also supported.

All inputs are processed at full bandwidth, using single link, 225 MHz (6.75Gpbs) circuitry so as to deliver no compromise outputs on all paths. Switcher memory is employed to insure last selection recall should power be temporarily lost. RS-232, Ethernet and Infrared control supplement front panel input/output selection and a rack mount kit is included with the switcher. The MX-6388 also provides output independent, per-input EDID cloning support.

 tvONE MX-6388 Key Features:

  • 8x8 Matrix HDMI Signal Switching
  • Full HDCP Compliance
  • 480i to 1080p HDTV & VGA–WUXGA Resolutions
  • HD up to 1080p60 Signals are Supported
  • Supports DTS-HD Master Audio, Dolby True-HD, DTS, DD+ and DD Embedded Audio
  • Per-output Monitor EDID Cloning Support
  • Buffered Video Signal Handling
  • IR Remote, RS-232 and Ethernet Control
  • Rack Mount Kit included

 tvONE MX-6388 Specifications:

  • Video Input
    • HDMI:  8x via HDMI Type A Connector
  • Video Output
    • HDMI:  8x via HDMI Type A Connector
  • Performance
    • Video Resolution:  480i through 1080p (12bit color),
    • VGA through WUXGA
    • Supported Standards:  HDMI 1.3, HDCP 1.1, DVI 1.0
    • Supported Signal Types:  HDMI/HDMI Deep Color, 3D
    • Video Processing:  Single-Link, 225MHz, 6.75Gbps
    • Device Control Methods:  Front Panel, IR, RS-232,Ethernet
    • EDID Capability:  Standard Monitor Resolutions
  • Video Formats
    • 24 Bit:  RGB/YCbCr 4:4:4
    • 30/36 Bit:  RGB/YCbCr 4:4:4 (Deep Color)
    • 4/30/36 Bit:  RGB/YCbCr 4:2:2
  • Audio Formats
    • Embedded Audio:  DTS-HD Master Audio, DTS, Dolby TrueHD, DD+, DD
  • Mechanical (H-W-D)
    • MX-6388:  1.75 in. x 17 in. x 12.2 in. (44mm x 440mm x 310mm)
    • MX-6388 with rack mount:  1.75 in. x 19 in. x 12.2 in. (44mm x 482mm x 310mm)
  • Weight
    • 7.3 lbs. (3.326 Kg)
  • Environmental
    • Operating Temperature:  0° to +40° C (+32° to +104° F)
    • Operating Humidity:  20% to 90%, Non-condensing
    • Storage Temperature:  -20° to +60° C (-4° to +140° F)
    • Storage Humidity:  20% to 90%, Non-condensing
  • Power Requirement
    • Internal Power Supply:  100-240VAC, 50-60Hz, 60W
  • Regulatory Approvals
    • Main Unit:  FCC, CE, RoHS
    • Power Supply:  UL, CUL, CE, PSE, GS, RoHS
  • Warranty
    • Limited Warranty:  3 Years Parts and Labor
  • Accessories Included
    • 1 x AC Power Cable:  US, UK and Euro
    • 1 x IR Remote Control:  Infrared
    • 1 x IR Extender
    • 1 x Rack Mount Kit
    • 1 x Operations Manual

TV One MX-6388
8 x 8 HDMI Matrix Switcher

OUR PART #  MX-6388

Product Information:

The tvONE MX-6388 8x8 HDMI Matrix Switcher is designed to allow distribution of eight HDMI (w/HDCP) sources to eight devices independently or all at the same time. All video paths are buffered to prevent cross talk and 480i through 1080p HDTV signals, plus VGA (640 x 480) through WUXGA (1900 x 1200) signals are accepted as valid inputs and outputs. 3D signals are also supported.

All inputs are processed at full bandwidth, using single link, 225 MHz (6.75Gpbs) circuitry so as to deliver no compromise outputs on all paths. Switcher memory is employed to insure last selection recall should power be temporarily lost. RS-232, Ethernet and Infrared control supplement front panel input/output selection and a rack mount kit is included with the switcher. The MX-6388 also provides output independent, per-input EDID cloning support.

 tvONE MX-6388 Key Features:

  • 8x8 Matrix HDMI Signal Switching
  • Full HDCP Compliance
  • 480i to 1080p HDTV & VGA–WUXGA Resolutions
  • HD up to 1080p60 Signals are Supported
  • Supports DTS-HD Master Audio, Dolby True-HD, DTS, DD+ and DD Embedded Audio
  • Per-output Monitor EDID Cloning Support
  • Buffered Video Signal Handling
  • IR Remote, RS-232 and Ethernet Control
  • Rack Mount Kit included

 tvONE MX-6388 Specifications:

  • Video Input
    • HDMI:  8x via HDMI Type A Connector
  • Video Output
    • HDMI:  8x via HDMI Type A Connector
  • Performance
    • Video Resolution:  480i through 1080p (12bit color),
    • VGA through WUXGA
    • Supported Standards:  HDMI 1.3, HDCP 1.1, DVI 1.0
    • Supported Signal Types:  HDMI/HDMI Deep Color, 3D
    • Video Processing:  Single-Link, 225MHz, 6.75Gbps
    • Device Control Methods:  Front Panel, IR, RS-232,Ethernet
    • EDID Capability:  Standard Monitor Resolutions
  • Video Formats
    • 24 Bit:  RGB/YCbCr 4:4:4
    • 30/36 Bit:  RGB/YCbCr 4:4:4 (Deep Color)
    • 4/30/36 Bit:  RGB/YCbCr 4:2:2
  • Audio Formats
    • Embedded Audio:  DTS-HD Master Audio, DTS, Dolby TrueHD, DD+, DD
  • Mechanical (H-W-D)
    • MX-6388:  1.75 in. x 17 in. x 12.2 in. (44mm x 440mm x 310mm)
    • MX-6388 with rack mount:  1.75 in. x 19 in. x 12.2 in. (44mm x 482mm x 310mm)
  • Weight
    • 7.3 lbs. (3.326 Kg)
  • Environmental
    • Operating Temperature:  0° to +40° C (+32° to +104° F)
    • Operating Humidity:  20% to 90%, Non-condensing
    • Storage Temperature:  -20° to +60° C (-4° to +140° F)
    • Storage Humidity:  20% to 90%, Non-condensing
  • Power Requirement
    • Internal Power Supply:  100-240VAC, 50-60Hz, 60W
  • Regulatory Approvals
    • Main Unit:  FCC, CE, RoHS
    • Power Supply:  UL, CUL, CE, PSE, GS, RoHS
  • Warranty
    • Limited Warranty:  3 Years Parts and Labor
  • Accessories Included
    • 1 x AC Power Cable:  US, UK and Euro
    • 1 x IR Remote Control:  Infrared
    • 1 x IR Extender
    • 1 x Rack Mount Kit
    • 1 x Operations Manual
