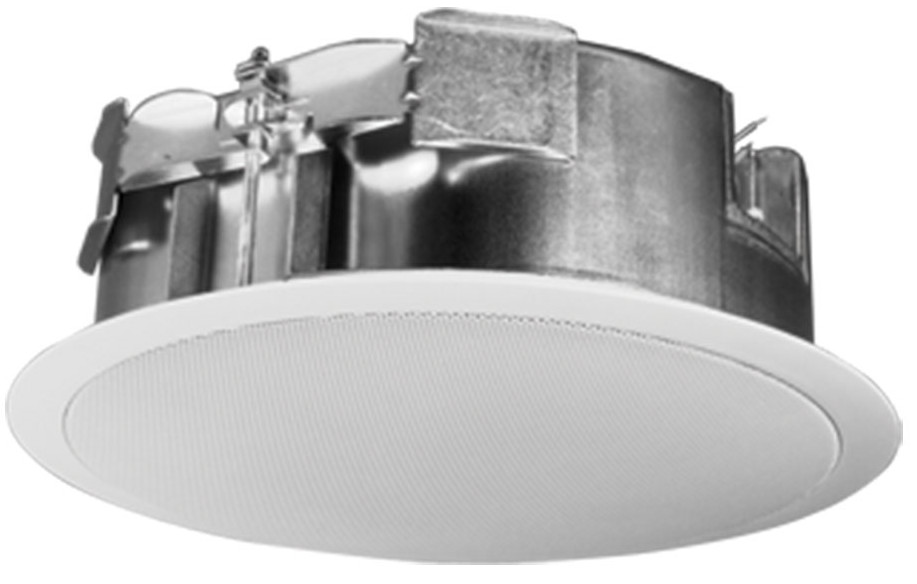

SoundTube CM52s-BGM-WH
5.25" Coaxial In-Ceiling Speaker with Shallow Backcan, White

OUR PART #  CM52S-BGM-WH

Call for price! Not available online.


The Soundtube CM52s-BGM-WH is engineered for applications with limited plenum space incorporating a SoundTube-specific shallow backcan with an installed depth of 3.5 inches. One 5.25 inch (134 mm) polypropylene woofer with rubber surround and one 0.75 inch (19 mm) silk dome tweeter. BeamRing™ technology for mid-range clarity and smooth off axis performance. Easy-access six-position tap switch for 25/70.7/100-volt and transformer bypass settings allows for easy ordering, stocking and installation. Tuned port on baffle for added musicality and bass response down to 65 Hz (-10 dB). Reduced amplification costs and maximum efficiency of 84.5 dB sensitivity, 16 ohm impedance. Incorporates a painted steel grille for lasting durability. Adaptable to material thicknesses ranging from 0.035 inch (0.9 mm) to 1.6 inch (40.6 mm). UL 1480 and 2043 approval pending. Included accessories: Color-coded (orange) tile bridge, UL listed 0.5 inch conduit clamp, paint shield.

Soundtube CM52s-BGM-WH Specifications:

  • Frequency Response (-10 dB):  65 Hz – 22 kHz
  • Sensitivity:  87.5 dB
  • Power Capacity RMS:  20 W
  • Max SPL dB @ 1 M:  100.5 dB
  • Nominal Impedance:  16 ohm
  • Transformer Options:  25 / 70.7 / 100 Volt; 16 Ohm direct
  • Tweeter:  0.75" Silk (19.05 mm)
  • Connections:  Four position ceramic terminal strip
  • Visible Height:  0.33" (8.4 mm)
  • Visible Diameter:  11.75" (298.5 mm)
  • Backcan Height:  3.75" (95.3 mm)
  • Backcan Diameter:  9.67" (245.6 mm)
  • Weight:  8.0 lbs. (3.6 kg)
  • Shipping Weight:  9.0 lbs. (4.1 kg)
  • Optional Accessories:  Color-coded (orange) pre-construction bracket (AC-CM6/8-PCB)
  • Color:  White

SoundTube CM52s-BGM-WH
5.25" Coaxial In-Ceiling Speaker with Shallow Backcan, White

OUR PART #  CM52S-BGM-WH

Product Information:

The Soundtube CM52s-BGM-WH is engineered for applications with limited plenum space incorporating a SoundTube-specific shallow backcan with an installed depth of 3.5 inches. One 5.25 inch (134 mm) polypropylene woofer with rubber surround and one 0.75 inch (19 mm) silk dome tweeter. BeamRing™ technology for mid-range clarity and smooth off axis performance. Easy-access six-position tap switch for 25/70.7/100-volt and transformer bypass settings allows for easy ordering, stocking and installation. Tuned port on baffle for added musicality and bass response down to 65 Hz (-10 dB). Reduced amplification costs and maximum efficiency of 84.5 dB sensitivity, 16 ohm impedance. Incorporates a painted steel grille for lasting durability. Adaptable to material thicknesses ranging from 0.035 inch (0.9 mm) to 1.6 inch (40.6 mm). UL 1480 and 2043 approval pending. Included accessories: Color-coded (orange) tile bridge, UL listed 0.5 inch conduit clamp, paint shield.

Soundtube CM52s-BGM-WH Specifications:

  • Frequency Response (-10 dB):  65 Hz – 22 kHz
  • Sensitivity:  87.5 dB
  • Power Capacity RMS:  20 W
  • Max SPL dB @ 1 M:  100.5 dB
  • Nominal Impedance:  16 ohm
  • Transformer Options:  25 / 70.7 / 100 Volt; 16 Ohm direct
  • Tweeter:  0.75" Silk (19.05 mm)
  • Connections:  Four position ceramic terminal strip
  • Visible Height:  0.33" (8.4 mm)
  • Visible Diameter:  11.75" (298.5 mm)
  • Backcan Height:  3.75" (95.3 mm)
  • Backcan Diameter:  9.67" (245.6 mm)
  • Weight:  8.0 lbs. (3.6 kg)
  • Shipping Weight:  9.0 lbs. (4.1 kg)
  • Optional Accessories:  Color-coded (orange) pre-construction bracket (AC-CM6/8-PCB)
  • Color:  White
