TOA AM-1SET QAM
Real-Time Steering Array Microphone System

OUR PART #  AM-1SETQAM

Our Price: $1,769.76
List Price: $2,190.08
You save 19%! (Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

Equipped with a built-in sensor to detect and track sound sources, the TOA AM-1 Real-time Steering Array Microphone System captures voices clearly and continuously from either side, above or below. This frees speakers to move back and forth in the vicinity of the podium, turn or tilt their heads to address different sections of the audience, or gesture naturally without concern for the location of the microphone. Placed unobtrusively on top of the podium or pulpit, this innovative voice-tracking microphone completely eliminates the interference and inconvenience of gooseneck or handheld mics. Intuitive parameter setting by iPad (or PC) adds further convenience.

TOA AM-1SET QAM Includes:

  • AM-1MBQAM
  • AM-1C QAM Control Unit
  • AD-246 Power Supply for the AM-1C QAM Control Unit

TOA AM-1SET QAM Features:

  • Unprecendented Voice-Tracking Capability: Features a unique ability to detect the speaker's voice, and to track andcapture it clearly and reliable, even if the speaker is moving.
    • Built-in voice detection/tracking sensor
    • Voice capture from up to 3 meters and to tracking range angles up to 180 degrees
    • Level compensation for reduced volume variations
    • Narrow (50-degree) directivity assuring minimal acoustic feedback
  • Intuitive, Trouble-Free Setting and Monitoring: Permites quick, one-touch adjustment of control unit parameter settings froman iPad* using a dedicated app or firmware. (*Adjustment by PC also possible)
    • Tracking distance/range
    • Tracking sensitivity/speed
    • Mute on/off
  • New-Concept Desktop Design:  Adopts aninnovative pad-like form permitting unobtrusive placement flat on the podium.
    • Removal of barrier between speaker and audience
    • Freedom to adopt a comfortable speaking posture
    • Ability to move and gesture naturally

TOA AM-1SET QAM Specifications:

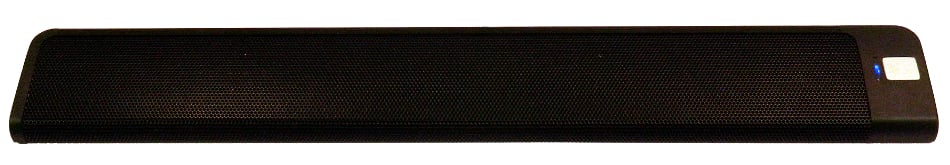

  • Microphone Unit (AM-1B QAM):
    • Power Source:  24V DC 200mA (supplied from Control Unit)
    • Frequency Response:  150 Hz — 18 kHz
    • Directivity (Beam Width):  50°
    • Maximum Cable Distance:  200ft (60m) (between microphone and control)
    • Applicable Cable:  Twisted two-core, shielded cable
    • Mute Function:  Mechanical mute switch
    • Dimensions (WxHxD):  19.1” x 0.78” x 2.36”
  • Control Unit (AM-1C QAM):
    • Power Source:  24V DC 400mA (including microphone power / supplied by AC adapter)
    • S/N (Microphone):  Over 90dB
    • Input:  Microphone input (audio and communication), female XLR 3P x 1
    • Audio Output:  +4dBu/-10dBV (selectable), male XLR 3P x 2, AES/EBU 24bit 110 Ohm, male XLR 3P x 1
    • Network Port:  RJ45
    • Accessory:  AD-246 Power Supply

TOA AM-1SET QAM
Real-Time Steering Array Microphone System

OUR PART #  AM-1SETQAM

Product Videos:

Product Information:

Equipped with a built-in sensor to detect and track sound sources, the TOA AM-1 Real-time Steering Array Microphone System captures voices clearly and continuously from either side, above or below. This frees speakers to move back and forth in the vicinity of the podium, turn or tilt their heads to address different sections of the audience, or gesture naturally without concern for the location of the microphone. Placed unobtrusively on top of the podium or pulpit, this innovative voice-tracking microphone completely eliminates the interference and inconvenience of gooseneck or handheld mics. Intuitive parameter setting by iPad (or PC) adds further convenience.

TOA AM-1SET QAM Includes:

  • AM-1MBQAM
  • AM-1C QAM Control Unit
  • AD-246 Power Supply for the AM-1C QAM Control Unit

TOA AM-1SET QAM Features:

  • Unprecendented Voice-Tracking Capability: Features a unique ability to detect the speaker's voice, and to track andcapture it clearly and reliable, even if the speaker is moving.
    • Built-in voice detection/tracking sensor
    • Voice capture from up to 3 meters and to tracking range angles up to 180 degrees
    • Level compensation for reduced volume variations
    • Narrow (50-degree) directivity assuring minimal acoustic feedback
  • Intuitive, Trouble-Free Setting and Monitoring: Permites quick, one-touch adjustment of control unit parameter settings froman iPad* using a dedicated app or firmware. (*Adjustment by PC also possible)
    • Tracking distance/range
    • Tracking sensitivity/speed
    • Mute on/off
  • New-Concept Desktop Design:  Adopts aninnovative pad-like form permitting unobtrusive placement flat on the podium.
    • Removal of barrier between speaker and audience
    • Freedom to adopt a comfortable speaking posture
    • Ability to move and gesture naturally

TOA AM-1SET QAM Specifications:

  • Microphone Unit (AM-1B QAM):
    • Power Source:  24V DC 200mA (supplied from Control Unit)
    • Frequency Response:  150 Hz — 18 kHz
    • Directivity (Beam Width):  50°
    • Maximum Cable Distance:  200ft (60m) (between microphone and control)
    • Applicable Cable:  Twisted two-core, shielded cable
    • Mute Function:  Mechanical mute switch
    • Dimensions (WxHxD):  19.1” x 0.78” x 2.36”
  • Control Unit (AM-1C QAM):
    • Power Source:  24V DC 400mA (including microphone power / supplied by AC adapter)
    • S/N (Microphone):  Over 90dB
    • Input:  Microphone input (audio and communication), female XLR 3P x 1
    • Audio Output:  +4dBu/-10dBV (selectable), male XLR 3P x 2, AES/EBU 24bit 110 Ohm, male XLR 3P x 1
    • Network Port:  RJ45
    • Accessory:  AD-246 Power Supply
