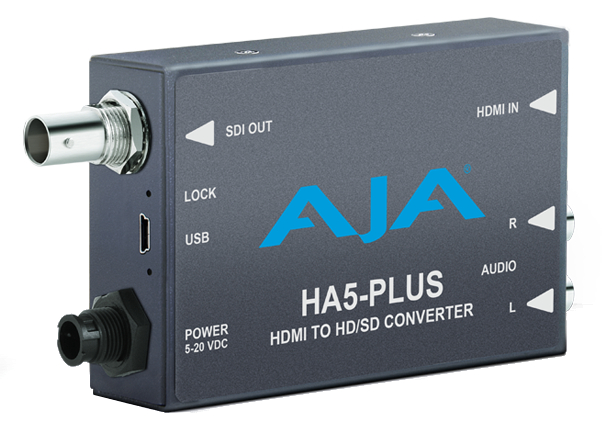

AJA Video Systems Inc HA5-Plus
HDMI to SD/HD/3G-SDI Mini Converter with DSLR Format Support and Power Supply

OUR PART #:  HA5-PLUS

The AJA HA5-Plus is their next generation HDMI to SDI Converter. The HDMI input is converted to SD, HD, or 3G-SDI, depending on the input format, for driving SDI equipment.
Learn More
Our Price: $395.00
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

AJA Video Systems Inc HA5-Plus
Qty:
In Stock

Similar Products

The AJA HA5-Plus is their next generation HDMI to SDI Converter. The HDMI input is converted to SD, HD, or 3G-SDI, depending on the input format, for driving SDI equipment. Up to eight channels of HDMI audio are embedded into the SDI output and a 2-channel RCA analog input allows embedding of separate audio into the SDI output, all user configurable. The HA5-Plus also accepts progressive SD (480p, 576p) for compatibility with many DSLR cameras.

AJA's HA5-Plus allows you to integrate HDMI and SDI easily into your workflow by bringing HDMI and 3G-SDI devices together for a full range of monitoring and recording solutions in the edit suite, on set or at live events. Convenient USB setup using AJA MiniConfig on Mac or PC for easy remote configuration.

AJA HA5-Plus Features:

  • HDMI to 3G-SDI conversion
  • Full HDMI support including embedded audio
  • Supports DSLR HDMI formats including 480p/576p
  • Configurable via AJA MiniConfig software for Mac and PC
  • Equalized HDMI input supports long HDMI cables up to 30m, 24 gauge
  • PLL clock filtering for low jitter HD/SD-SDI outputs
  • 2-channel RCA analog audio input
  • 1m HDMI cable included
  • DWP-U-R1 Power Supply Included
  • 5-20VDC power

AJA HA5-Plus Specifications:

  • Video Input: HDMI with embedded audio, up to 8 channels
  • Input Formats*:
    • 525i, 625i, 525p, 625p, 480p, 576p
    • 720p 50, 59.94, 60
    • 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
    • 1080i 50, 59.94, 6
      *HDCP content not supported
  • Video Output: 3G-SDI with embedded audio
  • Output Formats:
    • 525i 29.97
    • 625i 25
    • 720p 50, 59.94, 60
    • 1080i 25, 29.97, 30
    • 1080p 23.98, 24, 25, 29.97, 30
    • 1080p 50, 59.94, 60 - SMPTE 425-1 Level A Mapping structure 1 (1920x1080 4:2:2 10-bit YCbCr)
  • Audio Input: 2-channel RCA-style analog audio (-10dBV nominal)
  • Audio Output: SDI embedded audio
  • Power:
    • Uses AJA Power Supply model DWP-U-R1 (included with purchase)
    • 100-240V, 50/60Hz Universal Input
    • +5V DC regulated, 7.5 watt capacity
  • Dimensions: 4.6" x 2.4" x 1" (117 x 61 x 25 mm)
