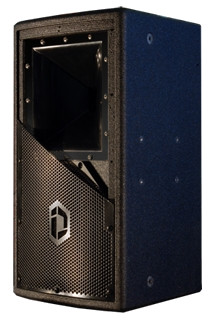

McCauley Sound ID1.108-66N
8" 2 Way Full Range Loudspeaker System with Built-In Passive Crossover

OUR PART #:  ID1.108-66N

The ID1.108-66N is an ultra-compact, modular 2-way loudspeaker with a built-in passive crossover engineered for permanent installation in high output applications.
Learn More

Call for price! Not available online.

Related Products

The ID1.108-66N is an ultra-compact, modular 2-way loudspeaker with a built-in passive crossover engineered for permanent installation in high output applications.

The ID1.108-66N is ideal for use as primary sound reinforcement in smaller venues such as houses of worship, theaters & auditoriums, or in restaurants, lounges and bars where music is intended to dominate the foreground. Employed as part of an array, the ID1.108-66 will interoperate with other iDESIGN modules to build extended coverage patterns and cover larger audiences. With appropriate hardware, iD1 modules can also be incorporated with ID2, ID3, and ID4 loudspeakers to construct larger muti-tiered arrays. The ID1.108-66N also functions as elements in distributed systems for larger venues like stadiums and arenas, while its narrow profile makes it especially appropriate for delay rings and under-balcony applications.

The ID1.108-66N features a single 8" cone driver and a 1.75" diaphragm compression driver mounted to a 1" exit user-rotatable 60x60 constant directivity waveguide.

There are two powering modes available for the ID1.108-66N. Bi-amp connections are made by terminal strip; every panel features a second set of connections for passing signal through to another module. A passive crossover with a 70 volt option can be added to accommodate full-range signal.

All iDESIGN modules are constructed of high-grade, void-free 5/8th 12-ply Finland birch sealed in our weatherproof ProCoat elastomeric coating. Curved, perforated steel grills protect the system while acoustically transparent foam protects and conceals components from view. All hardware is either stainless steel or is fully powder-coated to resist corrosion. Standard colors are black or white, while custom colors are accommodated by special order.

The ID1.108-66N offers Omni-Mount compatible taps on the top and bottom of the module as wells as both sides. 12 reinforced 3/8"-16 pick points are distributed across five faces to accommodate cable hangs of nearly any design. A wide range of array frames, developed specifically for iDESIGN, are available to facilitate arraying and suspending multiple modules as a single cluster, while both vertical and horizontal U-bracket hardware is tailored to each module for single-unit wall and ceiling mount installations.

McCauley Sound ID1.108-66N Features:

  • 12 3/8th Inch Eyebolt Suspension Points
  • Resonance-Neutral Dampening
  • Build Custom Coverage
  • Rotatable Waveguide
  • Horizontal U-Bracket Hardware Available
  • Omni Mount Ready
  • Discrete Channels of Power & Processing
  • Modular Building Blocks
  • Precision Array Frames
  • Vertical U-Brackets w/ Articulation
  • Curved Aesthetic
  • High-Rigidity Cone Structures
  • Arrayable Pattern
  • Optimized for Intelligibility
  • Optional White Finish
  • Dual Terminal-Strip Connectors
  • McCauley Performance Class Componentry
  • Perforated Steel Grill
  • 12-Ply Dadoed Construction
  • Durable ProCoat Elastomeric Finish

McCauley Sound ID1.108-66N Specifications:

  • Performance Overview
    • Class: Full Range
    • Coverage: 60 x 60 degrees
    • Freq. Response (-3dB): 60Hz - 18kHz
    • Low Freq. Response (-10dB): 55Hz
  • Power Handling (Program)
    • Full Range: 300W
    • Low: 300W
    • High: 100W
  • Power Handling (AES)
    • Full Range: 200W
    • Low: 200W
    • High: 50W
  • Max Peak SPL
    • Full Range: 127dB
    • Low: 127dB
    • High: 134dB
  • Max Continuous SPL
    • Full Range: 121dB
    • Low: 121dB
    • High: 128dB
  • Impedance
    • Full Range: 8 Ohm
    • Low: 8 Ohm
    • High: 16 Ohm
  • Sensitivity
    • Full Range: 96dB
    • Low: 96dB
    • High: 108dB
  • Critical Filter / Crossover Data
    • Crossover Low: 1.8kHz
    • Crossover High: 1.8kHz
  • Construction
    • Method: CNC Machined, Dadoed, Rabbet
    • Material: 12-Ply Birch
    • Finish: Procoat
  • Product Dimensions: 10.97" x 19.19" x 11.5"
  • Net Weight: 31lbs
  • Taper Angle: 15 degrees
  • Taper Width: 5.31"
  • Design Properties
    • Characteristics: 2-Way, Vented, Rotatable Waveguide
    • Powering Options: Passive, Bi-Amp
  • Hardware
    • Connectors: Terminal Strips (4), Terminal Strips (8)
    • Grill Type: Acoustically Transparent Foam, Fitted Perforated Steel
    • Suspension: Mounting Bracket, U-Bracket, Eye-Bolt, Ball-JointMount
