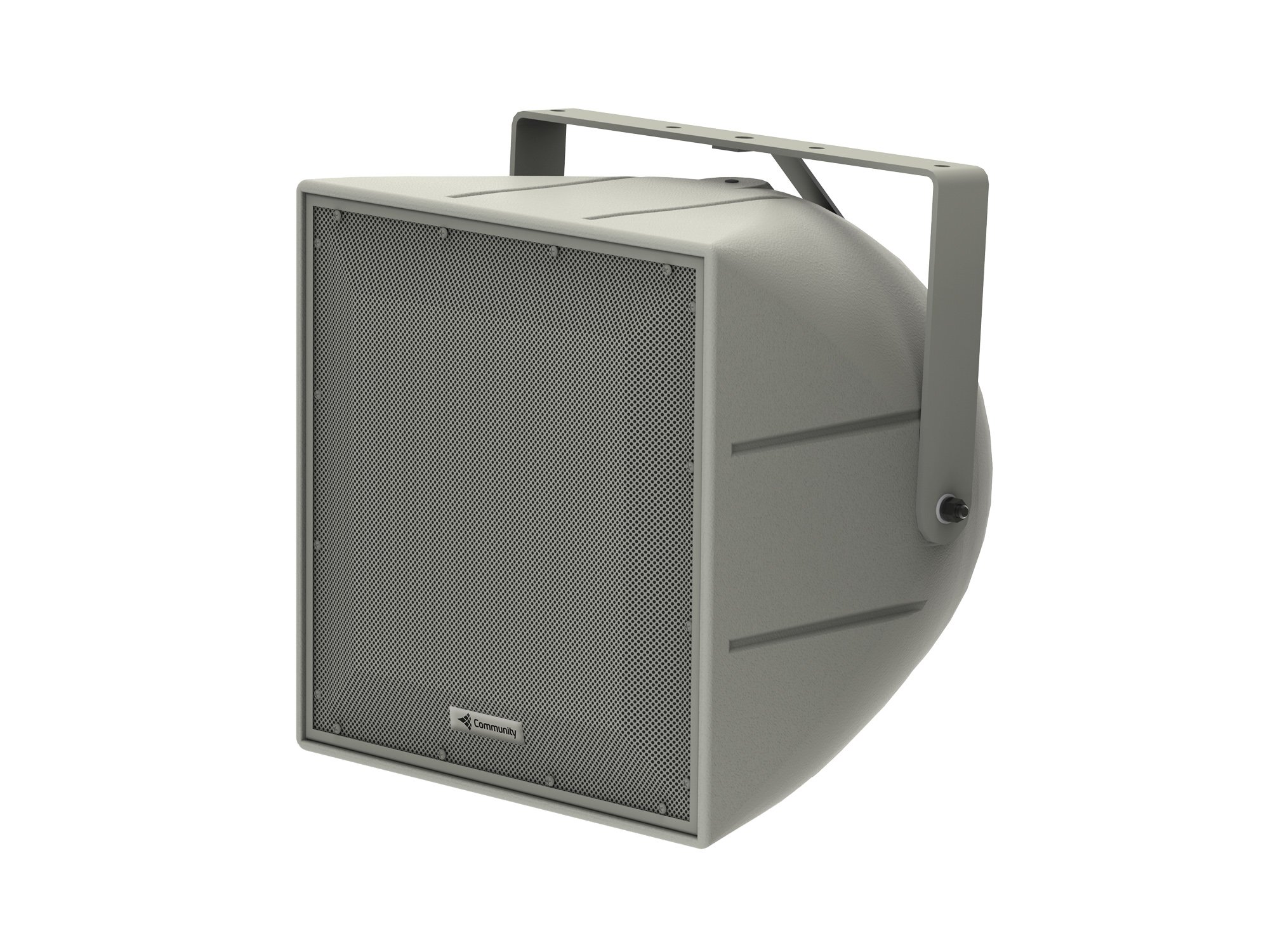

Community R.5-96MAX
12" High Output Full Range Weather Resistant Loudspeaker in Grey with 90x60 Dispersion

OUR PART #:  R.5-96MAX

Community's R.5-96MAX is a two-way...
Learn More
Our Price: $1,867.00
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Community R.5-96MAX
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

Community's R.5-96MAX is a two-way, full-range loudspeaker system designed to provide high-quality voice and music reproduction in applications requiring extreme weather resistance. It is designed to withstand long-term exposure to tough, environmental conditions and to provide high output performance.

The R.5-96MAX has a 1.4" (36 mm) exit HF compression driver and a 12" (305 mm) cone 600W neodymium LF driver. The HF assembly is coaxially mounted with the LF driver allowing 90° x 60° coverage with low distortion. The system has been designed to provide a flat response with slightly rising HF.

The R.5-96MAX can act as both a musical entertainment loudspeaker and a voice PA loudspeaker simultaneously. Each system is backed by Community's five-year product warranty and fifteen-year enclosure warranty.

Community R.5-96MAX 12" High Output Full Range Weather Resistant Loudspeaker Features:

  • Low-distortion, high-quality musicality, excellentspeech intelligibility in a compact enclosure
  • High sensitivity, high output (130 dB max)
  • Weather-resistant, rotomolded UV resistant enclosure
  • Weather-resistant grille and drivers, andmoisture-sealed crossover
  • Corrosion-resistant zinc-rich epoxy dual-layerpowder-coated steel grille and yoke
  • Integral mounting points
  • Five-year product warranty / Fifteen-year enclosure warranty

Community R.5-96MAX 12" High Output Full Range Weather Resistant Loudspeaker Specifications:

  • System:
    • Loudspeaker Type: Full-range, two-way, coaxial, weather-resistant
    • Operating Range*: 70 Hz to 20 kHz (-10 dB)
    • Frequency Response*: 95 Hz to 20 kHz (-3 dB)
      *Operating range and frequency response parameters are stated with DSP equalization applied.
    • Max Input Ratings:
      • 600W RMS, 1200W Program
      • 69 volts RMS, 138 volts momentary peak
    • Maximum Output**:
      **Calculated based on power rating and sensitivity, exclusive of power compression.
      • without EQ***: 130 dB (136 dB Peak)
      • with EQ****: 129 dB (135 dB Peak)
        ****Recommended equalization as published in the Community Loudspeaker Library within Community's Resyn™ software.
    • Sensitivity (1W / 1m) Free Space SPL***,*****:
      • 102 dB (125 Hz - 10 kHz)
      • 103 dB (250 Hz - 4 kHz)
        ***Raw driver or system response prior to applying any filters for frequency response or power response correction.
        *****Free field anechoic sensitivity, calculated using input voltage that would produce 1W at the nominal impedance.
    • Nominal Impedance: 8 ohms, 4.8 ohms @ 200 Hz minimum
    • Nominal Beamwidth (-6dB): 90° x 60°, 1.6 kHz to 10 kHz
    • Axial Q / DI: 13.8/11.4, 1.6 kHz to 10 kHz
    • Crossover Frequency: 900 Hz
    • Recommended Processing******: DSP with CONEQ™ power response correction
      ******Community's dSPEC226 loudspeaker signal processor DSP and Resyn™ software include CONEQ™ 1000 point FIR filter power response correction filters within the preconfigured speaker file for this model of loudspeaker.
    • Recommended Amplifier: 1200W to 1800W at 8 ohms
  • Transducers:
    • Low Frequency: 1x 12" inherently weather-resistant cone with neodymium motor and aluminum demodulation ring
    • High Frequency: 1x 1.4" exit compression, 2.87" Voice coil
  • Physical:
    • Input Connection: 12 foot (3.6 m) SJOW #16 gauge
    • Enclosure: Rotomolded LLDPE plastic
    • Mounting/Rigging Provisions: (5) 3/8"-16 rigging points; Steel zinc-rich epoxy dual-layer powder-coated bracket; Aluminum aiming strap to secure angle
    • Grille: 3-layer Weather-Stop™ with polyester mesh, foam, zinc-rich epoxy dual-layer powder-coated perforated steel color-matched to enclosure
    • Environmental: IEC529 IP55W rating with a minimum 5° down-tilt
    • Dimensions: 16" H x 16" W x 16.19" D (406 x 406 x 411 mm)
    • Loudspeaker Unit Weight:
      • 44 lbs (20 kg) loudspeaker only
      • 47 lbs (21.3 kg) with yoke bracket
    • Shipping Weight: 51 lbs (23.1 kg)
  • Accessories (sold separately):
    • Pole Mount Bracket: PMB-1RR or PMB-2RR
    • 400W Transformer:
      • External 70V - 400W / 200W / 100W
      • 100V - 400W / 200W
