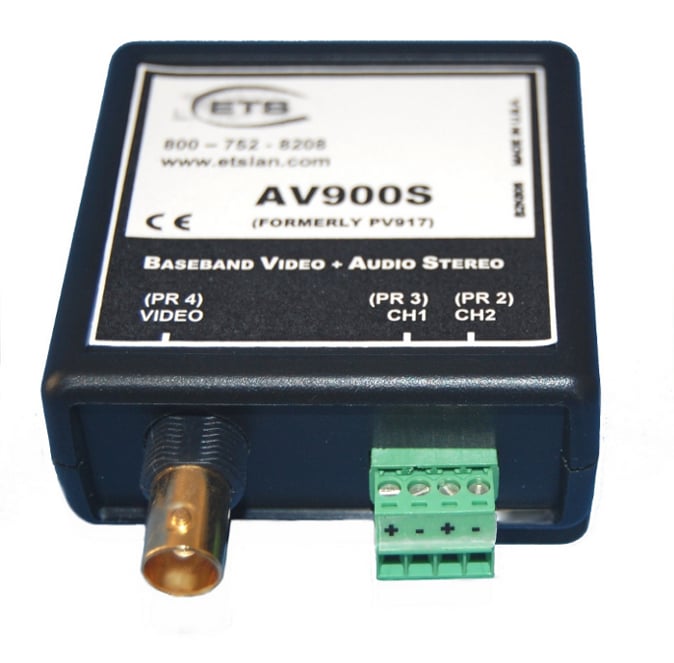

ETS AV900S-VSB
Video/Stereo Balun with 1x Female BNC, Audio Screw Terminals, Audio to RJ45 Jack

OUR PART #:  AV900S-VSB

The ETS AV900S Baseband Video/Stereo Audio Balun is utilized for point-to-point replacement of coaxial (video) and shielded (high impedance audio) cables with UTP wiring...
Learn More
Our Price: $75.00
List Price: $100.00
You save 25%!
ETS AV900S-VSB
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The ETS AV900S Baseband Video/Stereo Audio Balun is utilized for point-to-point replacement of coaxial (video) and shielded (high impedance audio) cables with UTP wiring, Category 5 or better.

The AV900S, with a BNC video input plus dual RCA jacks for audio, is designed for installations that have a need for separate audio channels.  For example, some VCRs and Video Cameras have video plus stereo outputs available on three RCA jacks.

AV900S - VSB, (1) FBNC video pins 8,7 + Screw terminals Audio to RJ45 jack, pins 1,2 & 3,6

ETS AV900S-1 Features:

  • 1 baseband video channel and 2 balanced audio channels on one run of UTP
  • Use for point to point replacement of coax and shielded cables
  • Rugged plastic cases
  • Made in USA
  • 100% tested

ETS AV900S-1 Specifications:

  • Bandwidth: Flat to 60 MHz (video) / 10Hz to 20kHz (audio)
  • Connectors: FBNC or RCA jack (video) / (2) RCA jack (audio) or screw terminals (audio) to RJ45 jack, Data Pass Through (audio)
  • Crosstalk: >50dB (video)
  • Impedance: 600:600 (audio)
  • Isolation: 500 V (audio, per channel)
  • Distance: Audio – 1000 ft; Video – Color 1200 ft, B/W 2500 ft
  • Dimensions: 66mm x 66mm x 28mm
  • Net Weight: 0.09 kg
