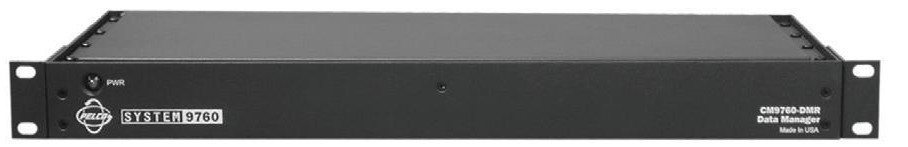

Pelco CM9760-DMR
CM9700 Series Series Data Manager Package for Data Port Expansion


Our Price: $658.74
List Price: $686.26
Usually ships in 7-14 business days.
Need it sooner? Call us!

The CM9760-DMR is a data manager package that provides a four-to-one expansion of the number of data (SERCOM) ports available on a CM9760, CM9770, or CM9780 central processing unit (CPU). It may be used with System 9700 Series matrix switchers in three basic applications: To expand the number of cameras controlled through a port (Camera Control Expander), to expand the number of keyboards connected to a port (Keyboard Expander), and to interface up to four networked CPUs to control a common group of cameras (Data Merger).

Pelco CM9760-DMR Features:

  • Choose One of Three Different Operating Modes:Keyboard Expander, Camera Control Expander, or Data Merger
  • Connect Up to Four CM9760-KBD Keyboards to One DataPort
  • Address Up to 64 PTZ Cameras From One Data Port
  • Allow Up to Four Matrix Switchers, DVRs, or DirectKeyboards to Share Control of Up to 32 PTZ Cameras
  • Both RJ-45 Connectors and Screw Terminals AreProvided for Each Data Port
  • Diagnostic LEDs Identify the Amount of Data Activity for Each Port
