ICSLan Relay Interface - 8 Channels

OUR PART #:  FG2100-20

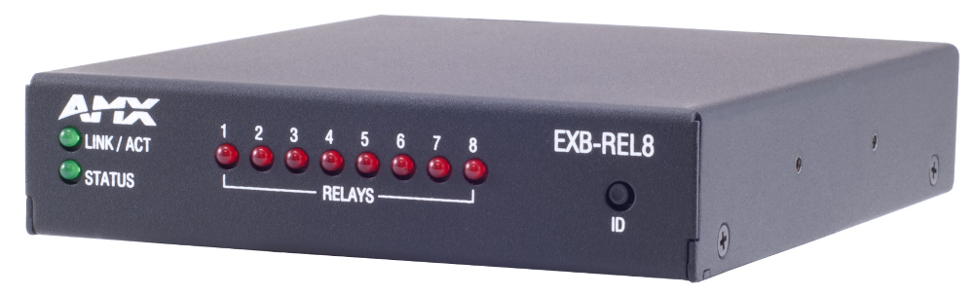

The AMX EXB-REL8 ICSLan Device Control Box allows users to manage devices remotely from a Controller over an Ethernet network.
Learn More
Our Price: $600.00
Write the first review.
Usually ships in 7-14 business days.
Need it sooner? Call us!

Related Products

The AMX EXB-REL8 ICSLan Device Control Box allows users to manage devices remotely from a Controller over an Ethernet network. This provides a beautifully simple method for a centralized control environment allowing users to share a controller among multiple smaller rooms versus controllers in every room. Ethernet has become the industry standard for connecting devices and the ICSLan Device Control Boxes make it easy to introduce control to equipment such as projectors located extended distances from a Controller.

Additionally, the number of ports on an AMX Controller can be expanded when all ports are fully populated. Because they employ Native NetLinx technology, it is extremely simple to add an EXB to an AMX installation. Applications include conference rooms, classroom or auditoriums where a single controller is used to manage multiple devices such as projectors spread throughout a facility or to add additional ports to an AMX Central Controller.

Benefits Using the AMX EXB-REL8:

  • Control Any Device – Provides the ability to controldevices that may be far from a controller
  • Cost Effective Solution for Smaller Rooms – Leveragethe power of a single central controller across multiple rooms
  • Out of Sight - Compact design makes it easy to hide for a clean, elegantlook

AMX EXB-REL8 Features:

  • Enable Ports over Ethernet – Provides a future proofsolution to add ports anywhere
  • Easy to Program – Programming is identical to anyother device ports on the Controller
  • Power over Ethernet – Eliminate the need for a powersource at the install location
  • Small Form Factor – Compact design makes it easy tohide for a clean installation
  • NetLinx Studio Tools – Configuration tools make ICSLan Device ControlBoxes easy to deploy

AMX EXB-REL8 Specifications:

  • Part#: FG2100-20
  • Dimensions (HWD):
      -  1" x 4 3/8" x 5 1/8" (2.5 cm cm x 11.1cm x 13.00 cm)
      -  RU: 1
  • Weight: 1.02 lb (463 g)
  • Power:
      -  PoE Powered - No local Power Supplyneeded
      -  Typical power draw: 1.9 Watts
      -  Max powerdraw: 3.4 Watts
  • Operation: Eight relays, 1A @ 24VAC / 28VDC

Status LEDs

  • 1 Green LED shows connection and power status
  • 1 Green LED shows Ethernet Link status and activity
  • 8 Red LEDs (1 per relay) show relay activity
  • Connections / Wiring:
      -  1 RJ-45 ICS-LAN EthernetConnector
      -  2 8-Pin 3.5mm captive-screw terminals


  • FCC Part 15 Class B
  • C-Tick CISPR 22 Class B
  • VCCI CISPR 22 Class B
  • CE EN 55022, EN 55024 and EN 60950-1
  • CB Scheme IEC 60950-1
  • UL 60950-1
