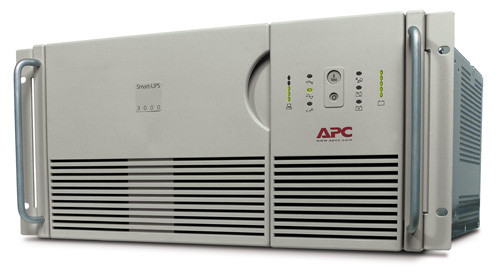

American Power Conversion SU3000RMX93
5U Rackmount Smart Marine 120V Uninterruptible Power Supply, 3000VA

OUR PART #:  SU3000RMX93

The APC SU3000RMX93 is a Smart Marine 120V Uninterruptible Power Supply.
Learn More
Our Price: $2,410.20
List Price: $3,340.00
You save 28%!
Write the first review.
American Power Conversion SU3000RMX93
Usually ships in 7-14 business days.
Need it sooner? Call us!

Related Products

The APC SU3000RMX93 is a Smart Marine 120V Uninterruptible Power Supply.

APC SU3000RMX93 Features:

  • Automatic restart of loads after UPS shutdown:  Automatically starts up the connected equipment upon the return of utility power
  • Automatic self-test:  Periodic battery self-test ensures early detection of a battery that needs to be replaced
  • Power conditioning:  Protects connected loads from surges, spikes, lightning, and other power disturbances
  • Pure sine wave output on battery:  Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics
  • Temperature-compensated battery charging:  Prolongs battery life by regulating the charge voltage according to battery temperature
  • Intelligent battery management:  Maximizes battery performance, life, and reliability through intelligent, precision charging
  • LED Indicators:  Provide easy-to-read status of the unit and utility power conditions
  • Serial connectivity:  Provides management of the UPS via a serial port
  • SmartSlot:  Customize UPS capabilities with management cards
  • Easy to install:  Innovative design allows for fast, easy installation by almost anybody.
  • Hot-swappable batteries:  Ensures clean, uninterrupted power to protected equipment while batteries are being replaced
  • Technical support:  Our experienced technical support engineers are available to answer your questions, giving you peace of mind knowing the help you need is there when you need it.
    User-replaceable batteries:  Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR)

APC SU3000RMX93 Includes:

  • CD with software
  • Rack Mounting support rails
  • Smart UPS signalling RS-232 cable
  • User manual

APC SU3000RMX93 Specifications:

  • Output:
    • Output Power Capacity:  2250 Watts / 3000 VA
    • Max Configurable Power:  2250 Watts / 3000 VA
    • Nominal Output Voltage:  120V
    • Output Voltage Distortion:  Less than 5% at full load
    • Output Frequency (sync to mains):  47 - 53 Hz for 50 Hz nominal, 57 - 63 Hz for 60 Hz nominal
    • Topology:  Line Interactive
    • Waveform Type:  Sine wave
    • Output Connections:  (6) NEMA 5-15R
  • Input:
    • Nominal Input Voltage:  120V
    • Input Frequency:  50/60 Hz +/- 3 Hz (auto sensing)
    • Input Connections:  NEMA L5-30P
    • Cord Length:  1.83 meters
    • Input voltage range for main operations:  92 - 147V
    • Input voltage adjustable range for mains operation:  86 - 154V
    • Batteries & Runtime:
    • Battery Type:  Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
    • Typical recharge time:  3 hour(s)
    • Replacement Battery:  RBC11
    • RBC™ Quantity:  1
  • Communications & Management:
    • Interface Port(s):  DB-9 RS-232, SmartSlot
    • Available SmartSlot™ Interface Quantity:  1
    • Control panel:  LED status display with load and battery bar-graphs and On Line, On Battery, Replace Battery, and Overload Indicators
    • Audible Alarm:  Alarm when on battery - distinctive low battery alarm, configurable delays
    • Emergency Power Off (EPO):  Optional
  • Surge Protection & Filtering:
    • Surge energy rating:  480 Joules
    • Filtering:  Full time multi-pole noise filtering, 0.3% IEEE surge let-through, zero clamping response time, meets UL 1449
  • Environmental Specifications:
    • Operating Environment:  0 - 40 °C
    • Operating Relative Humidity:  0 - 95%
    • Operating Elevation:  0-3000 meters
    • Storage Temperature:  -15 - 45 °C
    • Storage Relative Humidity:  0 - 95%
    • Storage Elevation:  0-15000 meters
    • Audible noise at 1 meter from surface of unit:  53.00 dBA
    • Online Thermal Dissipation:  375.00 BTU/hr
  • Conformance:
    • Regulatory Approvals:  CSA, FCC Part 15 Class A, UL 1778
    • Standard Warranty:  2 years repair or replace, optional on-site warranties available, optional extended warranties available
  • Physical Specifications:
    • Maximum Height:  222.00 mm
    • Maximum Width:  483.00 mm
    • Maximum Depth:  451.00 mm
    • Rack Height:  5U
    • Net Weight:  58.64 KG
    • Shipping Weight:  65.91 KG
    • Shipping Height:  337.00 mm
    • Shipping Width:  622.00 mm
    • Shipping Depth:  610.00 mm
    • Color:  Beige
