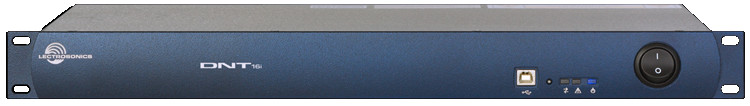

Lectrosonics DNT16i
DNT Series 16 Input 32 Output Dante Network Processor

OUR PART #:  DNT16I

DNT Series processors operate as native DanteTM devices to integrate analog and digital network signals in a seamless manner.
Learn More
Our Price: $3,631.30
List Price: $4,460.00
You save 19%!

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Lectrosonics DNT16i
Qty:
In Stock

Similar Products

DNT Series processors operate as native DanteTM devices to integrate analog and digital network signals in a seamless manner. Analog audio signals are converted to digital signals that are then processed and assigned to Dante network channels. Digital signals from the Dante network are processed in the same manner as analog signals, then sent back into the Dante network or converted to analog for mic/line outputs. The result is seamless integration of analog and digital audio signals into a common network where any signal assigned to a Dante transmit channel is then available at any receiving device connected to the network.

The DNT16i processor provides inputs into a Dante network from analog and digital signals. Each input provides extensive signal processing and routing to any one or all of 48 automatic mixers operating at the crosspoints of an internal digital matrix in the processor. The outputs of the matrix can be assigned to a Dante transmit channel and/or routed back to an input to be further mixed with another input or matrix mix.

DNT16i Features:

  • 16 mic/line analog inputs with 48V phantom power and wide range gain control
  • 16 DanteTM digital inputs
  • 32 DanteTM digital outputs
  • Supports both switched and redundant modes in DanteTM operation
  • Pre-mixing signal processing on all 32 inputs (analog and digital)
  • 48 independent automatic mixers with 36 inputs per mixer and channel activity detectors
  • Support for multi-level mixing: mixes can be looped back and used as mixer inputs
  • Extensive signal processing including filters, delay and channel linking for dynamic processing (compressors, limiters)
  • Gain smoothing to prevent transient noise during instantaneous level changes
  • Four test signal generators available for system setup and testing
  • Extensive macro command language
  • Control interfaces via USB, RS-232, Ethernet and programmable logic I/O
  • Rack mount or under table mount

DNT16i Specifications:

  • Audio inputs:  Balanced mic/line level inputs with digitally programmable gain may be wired as unbalanced inputs.
  • Audio input channels: 32 total; 16 analog mic/line; 16 Dante digital
  • Max. input level: 20 dBu
  • Gain:
    • Analog: 0 dB to 56 dB, programmable in 8 dB steps (the analog gain is automatically set by selecting the input gain)
    • Digital [Dante]: -70 dB to +20 dB
  • Input impedance: 8 kO differential mode, 2 kO common mode
  • Phantom voltage: 48 V
  • Dynamic range: 102 dB
  • EIN: -127 dBu (20 Hz – 20 kHz, unweighted)
  • THD + noise: 0.01%
  • A-D Sampling Rate: 48 kHz; fixed
  • Audio outputs:  32 digital outputs delivered to the Dante network
  • Dante Interface:  The interface provides dual RJ-45 connectors on the rear panel and an Ethernet switch built into the processor.
  • Supported sampling rate: 48 kHz
  • Data rate LED: 100Mbps/1Gbps
  • Activity LED: blinks when active
    Modes of operation: Switched mode using either connector; redundant mode with primary and secondary networks using both connectors
  • Network Connectivity: Dante interface and Ethernet control can be connected to the same network
  • Filters:  All filters have zero processing delay.
    • Tone control stages: 4 per input channel
    • ADFE: 8 per input channel; configurable as static or dynamic
  • Internal Signal Generator:
    • Swept sine: Modes: single sweep, continuous sweep
    • Waveforms: sawtooth (up or down), triangle
    • Sweep rate: linear, logarithmic
    • Parameters: start freq, stop freq, level [dBu], sweep time [sec]
  • White noise parameter: Level [dBu]
  • Pink noise parameter: Level [dBu]
  • Tone (sine wave) parameters: Level [dBu], frequency
  • Filter types:
    • Low Pass:
      • Butterworth (6, 12, 18, 24 dB/octave)
      • Bessel (6, 12, 18, 24 dB/octave)
      • Linkwitz-Riley (12, 24 dB/octave)
      • Additional parameters: frequency [Hz]
    • High Pass:
      • Butterworth (6, 12, 18, 24 dB/octave)
      • Bessel (6, 12, 18, 24 dB/octave)
      • Linkwitz-Riley (12, 24 dB/octave)
      • Additional parameters: frequency [Hz]
    • Low Shelving:
      • Butterworth (6, 12, 18, 24 dB/octave)
      • Bessel (6, 12, 18, 24 dB/octave)
      • Additional parameters: frequency [Hz], boost/cut [dB]
    • High Shelving:
      • Butterworth (6, 12, 18, 24 dB/octave)
      • Bessel (6, 12, 18, 24 dB/octave)
      • Additional parameters:  frequency [Hz], boost/cut [dB]
    • Peaking EQ (parametric): Parameters:
      • frequency [Hz]
      • bandwidth [octave]
      • boost/cut [dB]
  • Compressor: Soft knee with RMS level detector eliminates need for separate attack and delay settings; 0.1 ms increments, 1 second max.; continuously adjustable ratio
  • Power Requirements: 100-240 VAC, 50/60 Hz
  • Power Consumption: 20 W maximum
  • Dimensions: 1.75 x 19.00 x 7.70 inches
  • Weight: 5.32 lbs., 1.7 kg.
