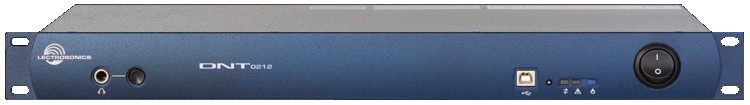

Lectrosonics DNT0212
DNT Series 32 Input 16 Ouptut Dante Network Processor

OUR PART #:  DNT0212

DNT Series processors operate as native DanteTM devices to integrate analog and digital network signals in a seamless manner.
Learn More
Our Price: $3,350.20
List Price: $4,115.00
You save 19%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Lectrosonics DNT0212
Qty:
In Stock

Similar Products

DNT Series processors operate as native DanteTM devices to integrate analog and digital network signals in a seamless manner. Analog audio signals are converted to digital signals that are then processed and assigned to Dante network channels. Digital signals from the Dante network are processed in the same manner as analog signals, then sent back into the Dante network or converted to analog for mic/line outputs. The result is seamless integration of analog and digital audio signals into a common network where any signal assigned to a Dante transmit channel is then available at any receiving device connected to the network.

The DNT0212 processor subscribes to channels on a Dante network and delivers them to an internal digital matrix for automatic mixing and processing, and to Dante network transmit channels. In addition, two analog line level inputs are provided for use with local sources audio sources such as voice evacuation announcements. The outputs of the matrix can be assigned to a Dante transmit channel, an analog output and/or routed back to an input to be further mixed and processed with another input channel or matrix mix.

DNT0212 Features:

  • 32 inputs from DanteTM receive channels
  • 2 analog line level inputs
  • 16 outputs to DanteTM transmit channels
  • 8 line level analog outputs
  • 4 mic/line level analog outputs
  • Supports both switched and redundant modes in DanteTM operation
  • Post-mixing signal processing on all inputs (analog and digital)
  • 48 independent automatic mixers with 38 inputs per mixer and channel activity detectors
  • Support for multi-level mixing: mixes can be looped back and used as mixer inputs
  • Extensive signal processing including filters, delay and channel linking for dynamic processing (compressors, limiters)
  • Gain smoothing to prevent transient noise during instantaneous level changes
  • Four test signal generators available for system setup and testing
  • Extensive macro command language
  • Control interfaces via USB, RS-232, Ethernet and programmable logic I/O
  • Rack mount or under table mount

DNT0212 Specifications:

  • Audio inputs:  Balanced mic/line level inputs with digitally programmable gain may be configured as unbalanced inputs.
  • Audio input channels:
    • Digital: 32 Dante channels
    • Analog: 2 line level analog (for paging); gain -20 dB to +20 dB; 15k ohm differential; 3.75k ohm common
  • Max. analog input level: 20 dBu
  • Dynamic range: 102 dB
  • THD + noise: 0.01%
  • A-D Sampling Rate: 48 kHz; fixed
  • Audio outputs:
    • Digital: 16 Dante transmit channels
    • Analog: 12 channels; 0 dBu nominal; < 50 ohm source to drive 600 ohm min. load; channels 9 - 12 include 20 dB and 40 dB attenuators
  • Dante Interface:  The interface provides dual RJ-45 connectors on the rear panel and an Ethernet switch built into the processor.
  • Supported sampling rate: 48 kHz
  • Data rate LED: 100Mbps/1Gbps
  • Activity LED: blinks when active
  • Modes of operation: Switched mode using either connector; redundant mode with primary and secondary networks using both connectors
  • Network Connectivity: Dante interface and Ethernet control can be connected to the same network
  • Filters:  All filters have zero processing delay.
  • EQ stages: 4 per input channel
  • Internal Signal Generator:
    • Swept sine: Modes: single sweep, continuous sweep
    • Waveforms: sawtooth (up or down), triangle
    • Sweep rate: linear, logarithmic
    • Parameters: start freq, stop freq, level [dBu], sweep time [sec]
  • White noise parameter: Level [dBu]
  • Pink noise parameter: Level [dBu]
  • Tone (sine wave) parameters: Level [dBu], frequency
  • Filter types:
    • Low Pass:
      • Butterworth (6, 12, 18, 24 dB/octave)
      • Bessel (6, 12, 18, 24 dB/octave)
      • Linkwitz-Riley (12, 24 dB/octave)
      • Additional parameters: frequency [Hz]
    • High Pass:
      • Butterworth (6, 12, 18, 24 dB/octave)
      • Bessel (6, 12, 18, 24 dB/octave)
      • Linkwitz-Riley (12, 24 dB/octave)
      • Additional parameters: frequency [Hz]
    • Low Shelving:
      • Butterworth (6, 12, 18, 24 dB/octave)
      • Bessel (6, 12, 18, 24 dB/octave)
      • Additional parameters:
        • frequency [Hz]
        • boost/cut [dB]
    • High Shelving:
      • Butterworth (6, 12, 18, 24 dB/octave)
      • Bessel (6, 12, 18, 24 dB/octave)
      • Additional parameters:
        • frequency [Hz]
        • boost/cut [dB]
    • Peaking EQ (parametric) Parameters:
      • frequency [Hz]
      • bandwidth [octave]
      • boost/cut [dB]
  • Compressor: Soft knee with RMS level detector eliminates need for separate attack and delay settings; 0.1 ms increments, 1 second max.; continuously adjustable ratio
  • Power Requirements: 100-240 VAC, 50/60 Hz
  • Power Consumption: 20 W maximum
  • Dimensions: 1.75 x 19.00 x 7.70 inches
  • Weight: 5.32 lbs., 1.7 kg.
