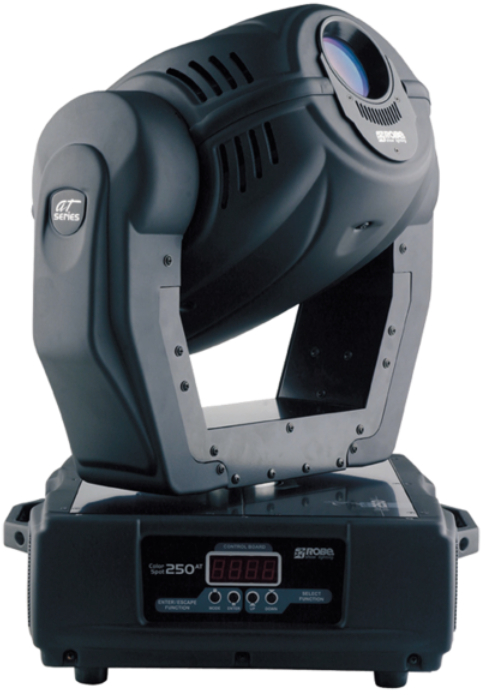

Moving Head Spot Light


The ColorSpot 250 AT includes a new rotating gobo wheel with 7 replaceable "SLOT&LOCK" dichroic glass gobos + open...
Learn More
Our Price: $2,374.52
List Price: $3,699.00
You save 36%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping


We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price


In Stock

Similar Products

The ColorSpot 250 AT includes a new rotating gobo wheel with 7 replaceable "SLOT&LOCK" dichroic glass gobos + open, and a new colour wheel hosting 10 replaceable "SLOT&LOCK" colours + open.

NOTE: This is a RESTOCK item that has had its box opened or has been repackaged. It may have minor cosmetic flaws and may have been sold to a customer and returned. Please contact your sales representative for more information on this and other products.

The 3-facet rotating prism is now also replaceable. Completely new software enables very smooth rotations of gobos and prism, and 8- or 16-bit resolution for gobo indexing, prism indexing and dimmer. The improved cooling systém ensures better operating conditions for lamp and reduces noise at the same time. The ColorSpot 250 AT is aimed at the TV studios, small and middle sized clubs and discotheques, and various types of installations.



  • Lamp: Compact high-pressure metal halide lamp
  • Base: GY-9.5
  • Approved model: Philips MSD 250/2
  • Control: Automatic and remote on/off
  • Ballast: Magnetic

Optical System

  • Standard objective: 15°
  • Optional objectives: 12° and 18°

Electrical Specification

  • Wiring options: 100/120/208/230/240V AC, 50/60Hz

Mechanical Specification

  • Height: 483 mm (19.00") - head in horizontal position
  • Width: 419 mm (16.50")
  • Depth: 438 mm (17.25")
  • Weight: 23.5 kg (51.8 lbs)


  • Maximum ambient temperature (Ta): 40°C (104°F)
  • Maximum surface temperature: 80°C (176°F)


  • Outside diameter - dichroic and glass gobos: 26.8 mm
  • Image diameter - dichroic gobos: 22 mm
  • Thickness - dichroic gobos: 1.1 mm (high temperatureborofloat or better glass)
  • Glass gobos: max. thickness = 4 mm (high temperature borofloat or betterglass)

Control and Programming

  • Protocol: USITT DMX-512
  • Control channels: 14, 16, 18 or 20
  • DMX channels: 4 protocol modes
  • Built-in demo sequences
  • Display: 4-digit LED display
  • Pan/Tilt resolution: 16-bit
  • Colour wheel: 8- or 16-bit
  • Gobo indexing: 8- or 16-bit
  • Focus: 8- or 16-bit
  • Dimmer: 8- or 16-bit
  • Master/Slave operation
  • Stand-alone operation
  • 3-editable programs, each up to 99 steps
  • Controllable speed of fans
  • Movement control: Tracking and vector
  • Built-in analyzer for easy fault finding
  • Data in/out: Locking 3-pin XLR + 5-pin XLR

Electromechanical Effects

  • Colour wheel: 10 replaceable "SLOT&LOCK" dichroicfilters + open
  • Gobo wheel: 7 rotating, indexable, replaceable"SLOT&LOCK" dichroic glass gobos + open
  • Interchangeable high-speed rotating 3-facet prism,optional frost filter supplied with the fixture
  • Dimmer/Shutter: Full range dimming and variablestrobo effect
  • Focus: Motorized focus
  • Pan: 530°
  • Tilt: 280°


  • Mounting points: 4 pairs of ¼-turn locks
  • 2x Omega bracket with ¼-turn quick locks
