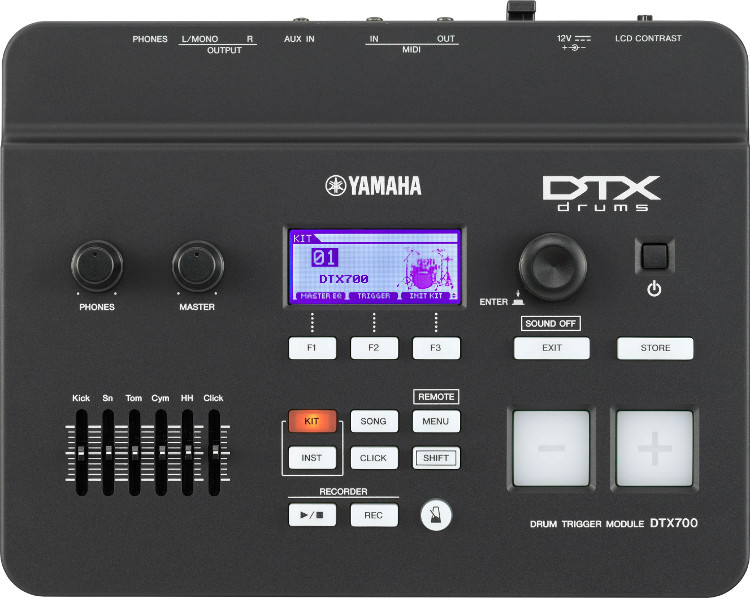

Yamaha DTX700 Electronic Drum Module DTX700 Series Electronic Drum Kit Trigger Module Image 1
Yamaha DTX700 Electronic Drum Module DTX700 Series Electronic Drum Kit Trigger Module Image 2
5v8VKf1UvRs
3 Videos
Yamaha DTX700 Electronic Drum Module DTX700 Series Electronic Drum Kit Trigger Module
No longer available at Full Compass
We've left this page up for reference only.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Product Overview

The Yamaha DTX700 drum trigger module is packed with high quality acoustic drum, cymbal, and percussion voices featuring legendary Yamaha drums as well as a collection of sounds from the MOTIF XF synthesizer. There are a wide variety of preset kits and you can easily customize the sounds yourself. These kits are extremely realistic down to the smallest details (including snare buzz and tom resonance) so that you will feel like you are listening to a set of acoustic drums. With 1,268 naturally sampled acoustic drum and percussion voices, the DTX700 module will bring out your best drum playing by allowing you to focus on your performance.

You can add up to 64MB of new sounds to the DTX700K by importing wave samples directly into the module via the USB device port. The songs of the DTX700K let you play along with or without the pre-recorded drum track, with just the bass player, or with the full ensemble to make playing and practicing seem more like a real band rehearsal.

Yamaha’s popular groove tools have set the standard for educational functions that are not only easy and fun to use, but actually help you become a better drummer. The DTX700K has a collection of training functions including the popular Groove Check that displays whether you are playing early or late, so you can more easily correct undesirable habits. Rhythm Gate is like a drumming game that automatically mutes the sound if you playing is too far out of time, so you quickly learn to control your groove and play “in the pocket”. Practice has never been this much fun!

The DTX700K includes an audio input for connecting an external CD or MP3 player into the module so you can play along with your favorite music. Listen through the main outputs or only in your headphones so you can quickly master the piece you want to learn note for note.

The DTX700K is equipped with a high-performance, programmable metronome made for drummers that allows complicated rhythms and tones to be stored.

The DTX700K gives you expandability, too, with options for adding up to three additional pads if you need to have more toms, cymbals, or a double-bass configuration. Other upgrades, such as a larger DTX-PAD for the snare, are also possible.

The USB “HOST” port allows connection to a PC* using a single USB cable (sold separately) for sending MIDI data to music software such as Steinberg’s Cubase AI (included). Use the USB “DEVICE” port for importing MIDI and audio from the computer into the module and for backing up your user data. The USB-MIDI DRIVER must be installed in order to connect the DTX700 to your PC.

With one-touch you can quickly switch the hi-hat closed pedal sound to replicate a secondary bass drum for easily replicating the sound of a double-bass kit without purchasing twin pedals or extra kick pads.

Yamaha DTX700 Specifications:

  • Size/Weight (Trigger Module)
    • Dimensions (WxHxD): 10-29/32" x 8-25/64" x 2-3/4" (277 x 213 x 95 mm)
    • Weight: 3.31 lbs (1.5 kg)
  • Tone generator:
    • Maximum Polyphony: 64 notes
    • Voices: Drum and percussion: 1,268, Melodies: 128
    • Effects: Reverb: 6, Chorus: 6, Variation: 42, Kit EQ: 4 band, Master EQ: 3 bands
    • Drum kits: Preset: 50, User: 10 * all of which may be edited and overwritten
  • Sequencer:
    • Note Capacity: Approx. 152,000 notes
    • Note Resolution: 480 ppq (parts per quarternote)
    • Song recording type: Real-time replace
    • Song tracks: 1 track
    • Songs: Demo: 2, Practice: 44, Pad: 17, User: 30* all of which may be edited and overwritten
    • Sequence formats: Proprietary, SMF format 0
  • Click:
    • Tempo: 30 to 300 BPM, Tap Tempo supported.
    • Beat: 1/4 to 16/4, 1/8 to 16/8, 1/16 to 16/16
    • Timing: Accents, Quarter note, Eighth note,Sixteenth note, Triplet
    • Training Functions: Measure break, Groove check, Rhythm gat
  • Other:
    • Connectors: USB TO DEVICE/TO HOST, OUTPUT[L/MONO] (Standard mono phone), OUTPUT [R] (Standard mono phone), TriggerInput 1 to 8, 11 (Standard stereo phone, L: Trigger Input, R: Rim Switch),Trigger Input 9 and 10 (Standard stereo phone, L: Trigger Input, R: TriggerInput), HH-KICK (Standard stereo phone) , HI-HAT CONTROL (Standard stereophone), AUX IN (Stereo Mini), PHONES (Standard stereo phone), MIDI IN/OUT
    • Accessories: Power Adaptor (PA-150, or an equivalent), Module holder, Module holder fastening screws x 4, Owner's Manual, Data List, DVD-ROM (Cubase AI)
  • Audio Import:
    • Samples: 500
    • Sample Data Bits: 16 bits
    • Sampling Time: * Mono/Stereo 44.1kHz: 23 sec., 22.05kHz: 46 sec., 11.025kHz: 1 min. 32 sec., 5.5125kHz: 3 min. 4 sec.
    • Sample formats: WAV, AIFF
