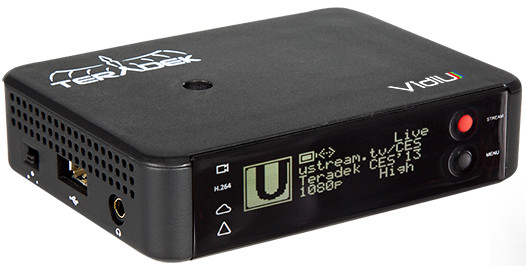

Teradek VidiU Camera Top HDMI H.264 Encoder


Our Price: $699.00
In Stock

The Teradek VidiU gives you the freedom to broadcast live high definition video directly to the Web without a PC.  Whether you're streaming out of a video switcher or wirelessly from your camera, VidiU allows you to go live when you want, where you want.

VidiU offers API level integration with the Ustream and new Livestream platforms, which makes streaming to your channel as easy as logging into your account.

Choose the CDN that is right for you.  VidiU's generic RTMP interface allows you to stream your live video content to a Wowza server or the platform of your choice at any time.

VidiU streams over dual band MIMO WiFi, Ethernet, or via a single 3G/4G USB modem.  For events that require you to be completely wireless, VidiU's rechargeable Li-Ion battery lets you roam cable-free for up to 60 minutes.

VidiU offers a free application for iOS and Android that allows you to monitor your live broadcast in real time.  Since VidiU acts as its own dual band Access Point, you can choose to connect your tablet* directly to the device or to your local network.
*Android app is optimized for 7" tablets

Connect your HD video source to VidiU via HDMI and stream at resolutions up to 1080p.  VidiU encodes video in real-time using H.264 compression and AAC audio at up to 5Mbps.  Embedded HD audio, headphone output, and a mic/line input are supported.

Teradek VidiU Specifications:

  • Video Input: HDMI
  • Supported Input Resolutions:
    • 1080i 50/59.94/60
    • 1080p 23.98/24/25/30
    • 720p 23.98/24/50/59.94/60
    • 576i/p
    • 480i/p
  • Supported Resolutions:
    • When Widescreen is set to Yes (16:9)
      • Full HD: 1920 x 1080
      • HD: 1280 x 720
      • High: 960 x 540
      • Medium: 736 x 414
      • Low: 480 x 270
      • Mobile: 360 x 200
    • When Widescreen is set to No (4:3):
      • Full HD: 1440 x 1080
      • HD: 960 x 720
      • High: 720 x 540
      • Medium: 560 x 414
      • Low: 368 x 270
      • Mobile: 272 x 20
        *Note: 30fps support for NTSC. 25fps support for PAL.
  • Supported Video Bitrates:
    • Full HD: 5.2 Mbit/s
    • HD: 2.2 Mbit/s
    • High: 1.4 Mbit/s
    • Medium: 796 Kbit/s
    • Low: 446 Kbit/s
    • Mobile: 273 Kbit/s
  • Supported Audio Bitrates
    • Full HD: 192 Kbit/s
    • HD: 128 Kbit/s
    • High: 96 Kbit/s
    • Medium: 96 Kbit/s
    • Low: 48 Kbit/s
    • Mobile: 48 Kbit/s
  • Video Codec:
    • Compression: Base/Main H.264
    • Bit Rate: 250 Kbps to 5 Mbps
  • Streaming:
    • Transport protocol: RTMP
    • API level integration: Ustream & new Livestream
  • Audio:
    • Audio compression: AAC-LC
    • Embedded audio input
    • Analog line or mic-in
    • Headphone output
  • Dimensions: 3" W x 4" D x 1" H
  • Weight: 5 oz
  • Interfaces:
    • OLED display with joystick navigation buttons
    • On/Off and reset switch
    • Powered USB 2.0 host port
  • Network:
    • Ethernet: 10/100BASE-T
    • WiFi: Dual Band MIMO 802.11 a/b/g/n
    • USB 3G/4G modem support
  • Power:
    • DC power input: 6-12V
    • Internal rechargeable lithium-ion battery
    • Nominal power consumption: 3W
    • Nominal power consumption while charging : up to 10W
